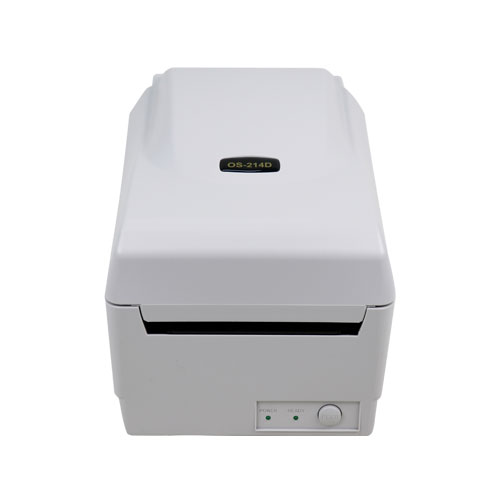

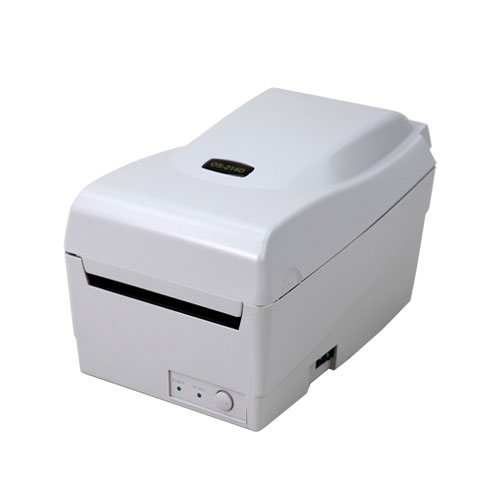

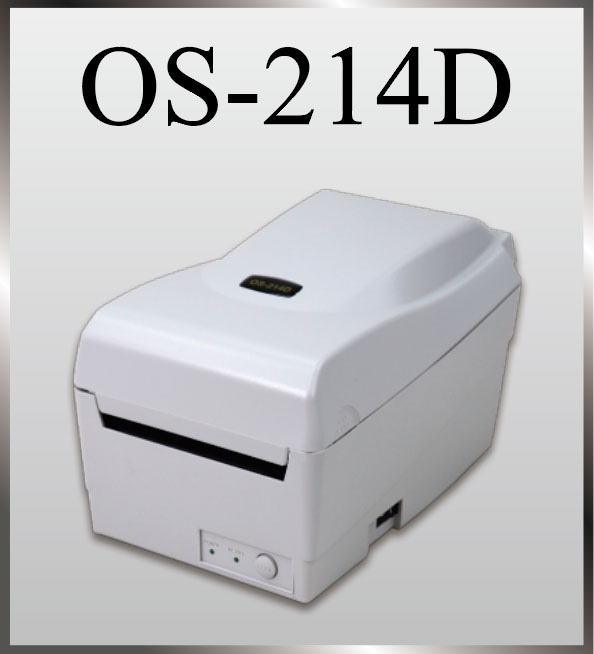

OS-214D

4-inch direct thermal desktop printer



The OS series are Argox best-selling printer for 23years. With more than two million users in worldwide, the OS series are known internationally for their stability and durability.

---

1. Increased memory
OS-214D memory is four times larger than OS-2140D, which can store more fonts and graphics with increased memory.




---

2. High printing speed
OS-214D in the printing speed is 20% faster than old OS-2140D, the maximum speed can reach to 6ips.




---

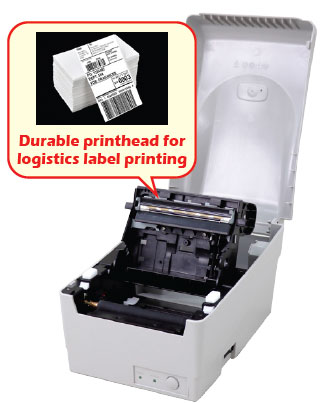

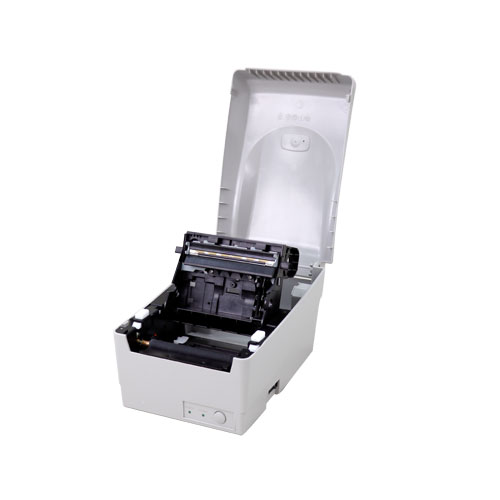

3. Durable printhead
New printhead has high stability and quality, also is more durable than old OS-2140D.




---

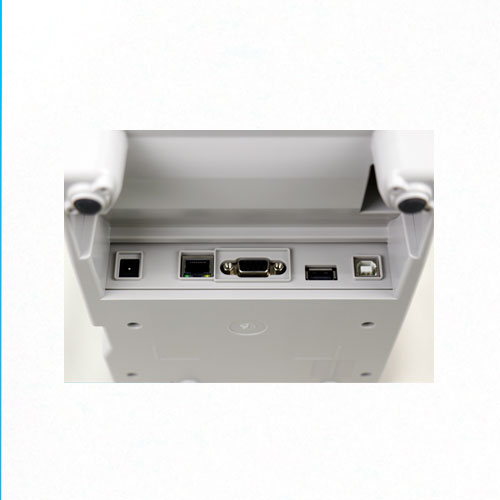

4. Multiple interfaces
Not only keeps the old OS-2140D default interface RS-232, USB device, but also increase Ethernet, USB host to fit into various applications.



OS-214D applications

• Retail
• Logistics
• Manufacturing

Printing Method	Direct Thermal
Printing Resolution	203 dpi (8 dots/mm)
Printing Speed	Max 6 ips
Printing Length	Max. 100”(2540mm)
Printing Width	Max 4.25"(108mm)
Memory	32MB SDRAM, 16MB Flash ROM
CPU Type	32 bit RISC microprocessor
Sensors	Reflective sensor
Operation Interface	LED indicator x 2, Button(Feed) x 1
Communication Interface	Ethernet, USB device, RS-232, USB host
Fonts	Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) All fonts are expandable up to 24x24 4 direction 0~270 rotation Soft fonts are downloadable (up to 72 points)
1D Barcodes	UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial 2of5, MSI, UPCadd-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirecional, GS1DataBar Limited, GS1 DataBar Expanded, GS1DataBar Expanded Stacked
2D Barcodes	QR Code, PDF417 (includingMicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode
Graphics	PPLA: PCX, BMP, IMG, HEX,GDI PPLB: PCX, BMP, Binary raster, GDI PPLZ: GRF, Hex, GDI
Emulation	PPLA, PPLB, PPLZ
Software-label Editing	BarTender® from Seagull Scientific Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf) iLabelPrint (Android)
Software-utility	Printer Tool, Font Utility
Driver tools	Argox Seagull Driver (Windows Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver
Media Type	Direct thermal label or plain paper
Media	Max. width: 4.3” (110mm). Min. width: 0.8” (20mm). Thickness: 0.0025”~0.01” (0.0635mm~0.254mm) Max roll capacity (OD): 5” (127mm) Core size: 0.5” (12.7mm) Max roll capacity (OD): 5” (127mm) Core size: 1” (25.4mm) Max roll capacity (OD): 5” (127mm) Core size: 1.5” (38.1mm)
Printer Dimensions	W 182.5mm x H 173.5mm x D 282mm
Printer Weight	3.3 lbs (1.51kgs)
Power Source	Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 24V, 2.5A
Operation Environment	Operation Temperature: 40°F~100°F (4°C~38°C), 0% ~ 90% non-condensing, Storage Temperature: -4°F~122°F (-20°C~50°C)
Agency Listing	CE, FCC, cULus, CCC, RoHS
Optional Items	Cutter, External media stand, Label rewinder
Attention	*Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
