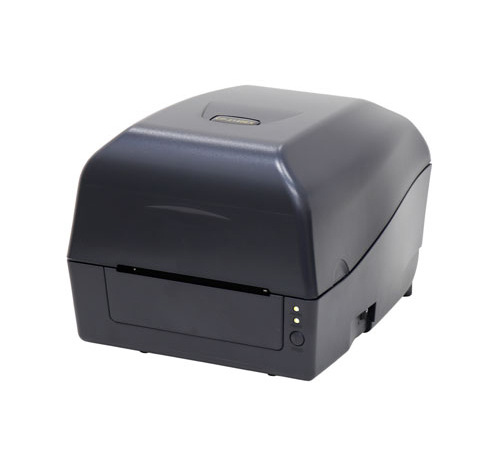

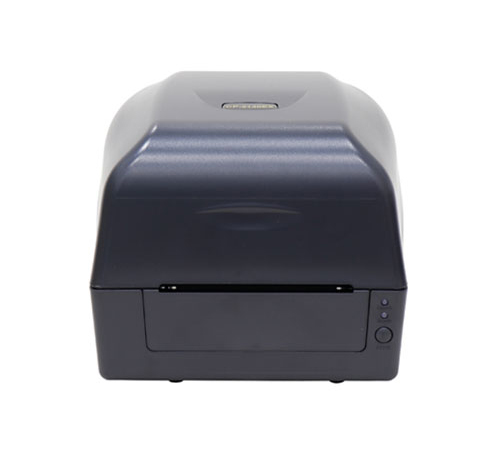

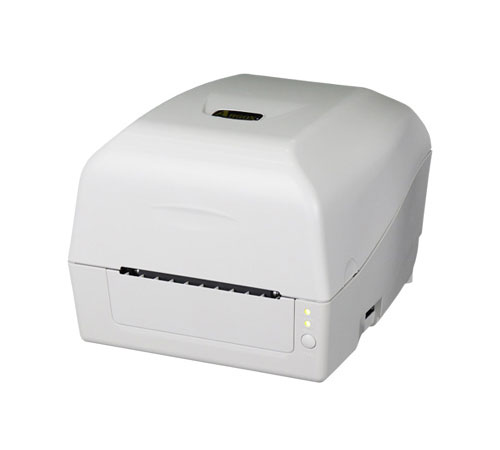

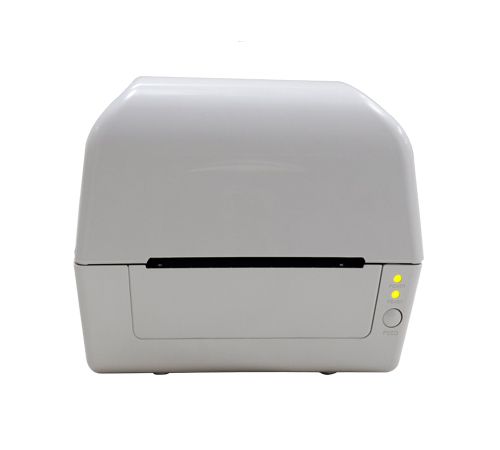

CX-3040 / CX-3140 (Regional exclusive)

product description
• Shell Suit design
• Easy to load media
• Durable life
• Performance enhance
Tags :
  • Printer-Printing-width-4"
  • Printer-Ribbon-length-300m
  • CX-3040 / CX-3140 Using new generation desktop printer to save time and money. Feature-rich to make daily work simple and easy.

    Shell Suit design:
    Interface roof feature can avoid interface from water spill damage and keep machine close to wall, reduce operating space.

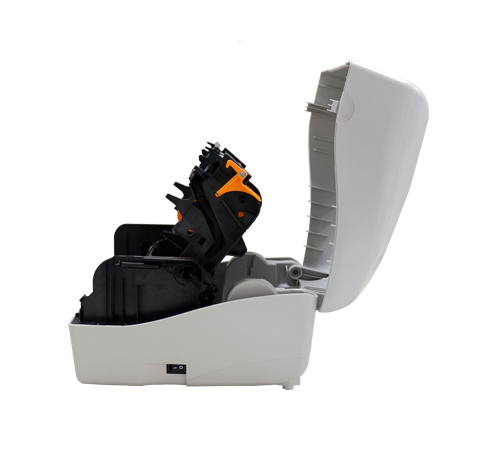

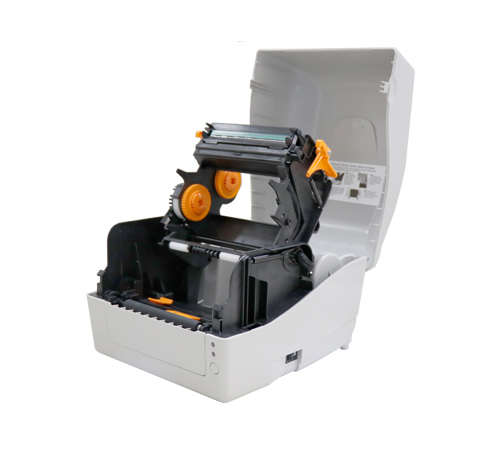

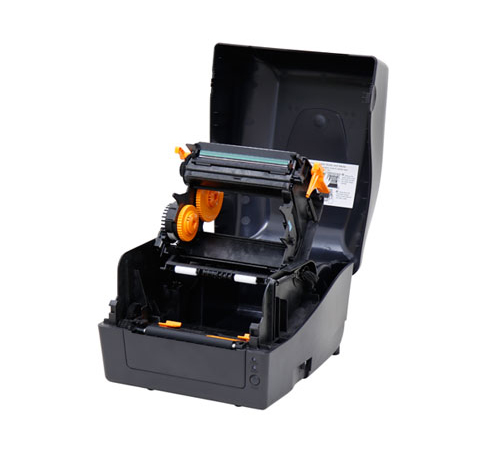

    Easy to load media:
    Large loading space to help media and ribbon installation very easily.

    Durable life:
    Inherited the turtle spirit, integrated structure makes CX Series solid and robust.

    Performance enhance:
    Print speed is faster 20% than old CP series, expanded SDRAM and Flash ROM can store more fonts, forms, graphics.

  •   Printing Method Direct Thermal & Thermal Transfer
      Printing Resolution 300 dpi(12 dots/mm)
      Printing Speed Max. 4 ips
      Printing Length Max. 50”(1270mm)
      Printing Width Max. 4.16”(105.7mm)
      Memory 32MB DRAM (3.6MB available for user) /16MB Flash ROM (8.4MB available for user)
      CPU Type 32 bit RISC microprocessor
      Sensors Reflective sensor x 1 (Movable) & Media Transmissive sensor x 1 (centrally fixed)
      Operation Interface LED Indicator x 2, Button(Feed) x 1
      Communication Interface CX-3040 : USB device CX-3140 : Ethernet, USB device, RS-232, USB host
      Fonts Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24x24 4 direction 0° ~ 270° rotation Soft fonts are downloadable Ability to print any Windows True Type font easily. Support scalable font
      Wireless Security N/A
      1D Barcodes UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial 2of5, MSI, UPCadd-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirecional, GS1DataBar Limited, GS1 DataBar Expanded, GS1DataBar Expanded Stacked
      2D Barcodes QR Code, PDF417 (includingMicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode
      Graphics PPLA: PCX, BMP, IMG, HEX and GDI format files PPLB: PCX, BMP , Binary Raster, and GDI PPLZ: GRF, Hex and GDI
      Emulation PPLA, PPLB, PPLZ
      Software-label Editing BarTender® from Seaguall Scientific Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
    Software-utility Printer Tool
       Driver tools Argox Seaguall Driver (Windows Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver
      Media Type Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper
      Media Max. width: 4.65” (118mm). Min. width: 0.8” (20mm). Thickness: 0.0024”~0.008” (0.06mm~0.2mm) Max. roll capacity (OD): 5"(127 mm) Core size 1”(25.4mm) Max. roll capacity (OD): 4.5"(114.3 mm) Core size 0.5”(12.7mm) Max. roll capacity (OD): 4.7"(120 mm) Core size 1.5”(38.1mm)
      Ribbon Ribbon width: 1”~4.33”(25.4mm~110mm), Ribbon length: Max. 300m. Core size ID: 1”(25.4mm), optional: 0.5”(12.7mm), Core width: 2.6”(67mm) Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect)
      Drop Resistance N/A
      Printer Dimensions W 226mm x H 188mm x D 276mm
      Printer Weight 2.1 kgs
      Power Source Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 24V, 2.4A
      Battery N/A
      Operation Environment Operation Temperature: 40°F~100°F (4°C~38°C), 0% ~ 90% non-condensing Storage Temperature: -4°F~122°F (-20°C~50°C)
      Real Time Clock N/A
      Standard Item N/A
      Optional Items Guillotine Cutter, Rotary Cutter, Peeler, External media stand
      Agency Listing CE, FCC, cULus, RoHS, BIS, BSMI, KC
      Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
    • ArgoBar Pro V2.11

      Windows Vista, Windows 7, Windows 8.1, Windows 10 (32-bit or 64-bit) Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (32-bit or 64-bit). ​Support languages: English, Simplified Chinese, Traditional Chinese Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)

    • BarTender UL 2016 R7 3146

      Windows Vista, Windows 7, Windows 8 and 8.1, and Windows 10. Windows Server 2008, 2008 R2, 2012, 2012 R2, and 2016. 32-bit and 64-bit (x64) editions.

    • Printer Tool V1.0.13.269

      Printer Tool V1.0.13.269

    • Font Utility V3.04

      Windows XP and higher. This utility enables to true type font(TTF) and load the fonts into printers. Support: Windows 10(64bit/32bit), 8.1(64bit/32bit), 8(64bit/32bit), 7, 98, ME, 2000, NT, Vista, XP

    • Command Library V4.11

      Command Library V4.11 software developing tool for professional users. Support: Windows 10, Windows 8, Windows 7, Window Vista and 64bit/32bit editions.

    • Argox SDK V1.3.0 CHT

      SDK supports PC/Android/CE/Mobile platform, Windows 10,Windows 8,Windows 7,Window Vista and 64bit/32bit editions Windows Mobile V5.0/Windows CE V5.0/Microsoft Visual Studio 2008, PPLZ emulation only.
