D2-350

product description
• Clamshell design,easy loading.
• Compact size.
• Enhanced connectivity.
• The D2 series has Cerner certification.
Tags :
  • Printer-Printing-width-2"
  • Printer-Direct-thermal
  • Printer-Cerner-certification

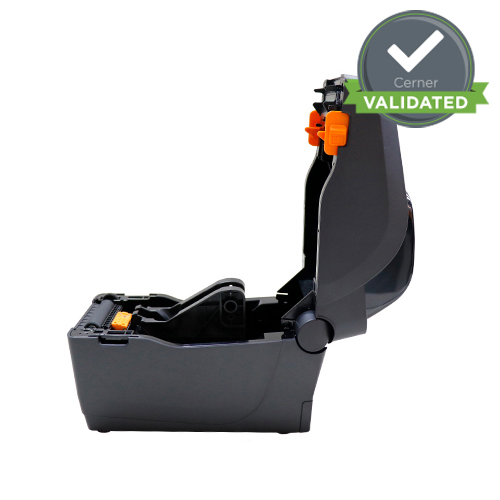

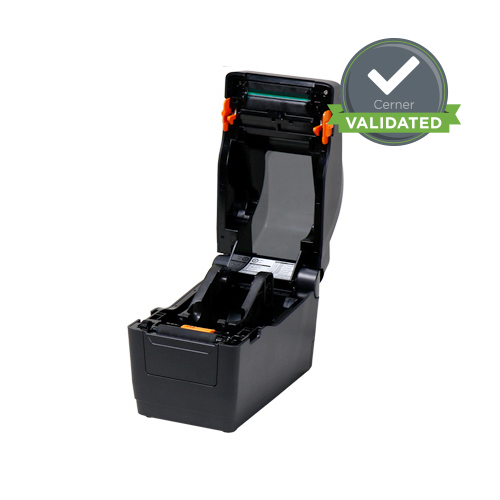

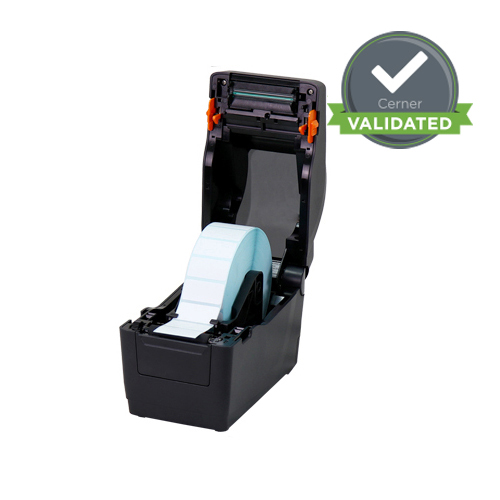

  • The D2 series features a user-friendly clamshell design that allows users to simply open the cover and loading media.Small footprint design, the compact D2 series fits into tight spaces and supports a wide range of applications.The D2 series has built-in USB host, USB device, and it can be expanded with Ethernet/RS232, Wi-Fi, Bluetooth v4.2. The D2 series has Cerner certification.
    螢幕擷取畫面 2021-11-18 170714

  •   Printing Method Direct Thermal
      Printing Resolution 300 dpi (12 dots/mm)
      Printing Speed Max. 5 ips
      Printing Length Max. 50”(1270mm)
      Printing Width Max. 2.24”(56.9 mm)
      Memory 32 MB SDRAM, 16MB Flash ROM (USB storage up to 32GB)
      CPU Type 32 bit RISC microprocessor
      Sensors Reflective sensor x 1 (movable) & Transmissive sensor x 1 (fixed, 6.27mm offset)
      Operation Interface LED Indicator x 2, Button(Feed) x 1

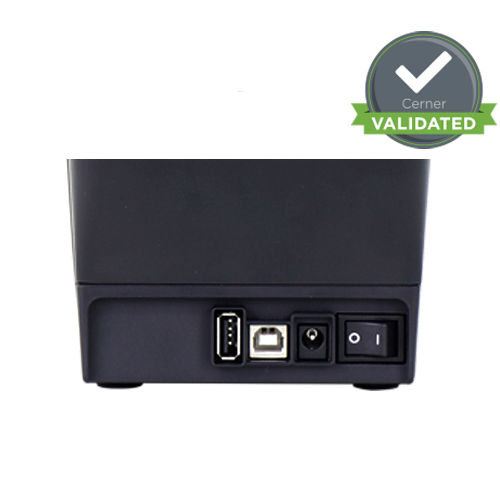

      Communication Interface USB device, USB host
      Fonts Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24x24 4 direction 0 ~ 270 rotation Soft fonts are downloadable Ability to print any Windows True Type font easily Support scalable font
      Wireless Security N/A
      1D Barcodes PPLA: Code 39、UPC-A、UPC-E、Code 128 subset A/B/C、EAN-13、EAN-8、HBIC、Codabar、Plessey、UPC2、UPC5、Code 93、Postnet、UCC/EAN-128、UCC/EAN-128 K-MART、 UCC/EAN-128 Random weight、Telepen、FIM、Interleaved 2 of 5 (Standard/with modulo 10 checksum/ with human readable check digit/ with modulo 10 checksum & shipping bearer bars) 、GS1 Data bar (RSS) PPLB: Code 39、 UPC-A、 UPC-E、 Matrix 2 of 5、 UPC-Interleaved 2 of 5、Code 39 with check sum digit 、Code 93、EAN-13、EAN-8 (Standard, 2 /5digit add-on) 、Codabar、Postnet、Code128 subset A/B/C、Code 128 UCC (shipping container code) 、Code 128 auto、 UCC/EAN code 128 (GS1-128) 、 Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、German Postcode、Matrix 2 of 5、 UPC Interleaved 2 of 5、 EAN-13 2/5 digit add-on、 UPCA 2/5 digit add-on、UPCE 2/5 digit add-on、GS1 Data bar (RSS) PPLZ: Code39、 UPC-A、 UPC-E、 Postnet、 Code128 subset A/B/C、Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、Code 93、Code 39 with check sum digit、MSI、EAN-8、Codabar、Code 11、EAN-13、Plessey、GS1 Data bar (RSS) 、 Industrial 2 of 5、 Standard 2 of 5、 Logmars
      2D Barcodes PPLA/PPLB/PPLZ: MaxiCode、 PDF417、 Data Matrix (ECC 200 only) 、 QR code、Composite Codes、Aztec
      Graphics PPLA: PCX, BMP, IMG, GDI and HEX format files PPLB: PCX , Binary Raster, BMP and GDI PPLZ: GRF, Hex and GDI
      Emulation PPLA, PPLB, PPLZ
      Software-label Editing BarTender® from Seaguall Scientific Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
      Software-utility Printer Tool
      Driver tools Argox Seaguall Driver (Windows Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver
      Media Type Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket or plain paper label
      Media Max. width 60mm. Min. width 12mm. Media thickness: 0.06~0.2mm 5”(127mm) OD on a 1”/1.5” (25.4/38 mm) ID core; 4.5”(114mm) OD on a 0.5” (12.7mm) ID core.
      Ribbon N/A
      Drop Resistance N/A
      Printer Dimensions W 116mm x H 170mm x D 215mm
      Printer Weight 1.05 kgs
      Power Source Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 24V, 2.4A
      Battery N/A
      Operation Environment Operation Temperature: 40°F~104°F (4°C~40°C), 0% ~ 90% non-condensing Storage Temperature: -4°F~122°F (-20°C~50°C)
      Real Time Clock N/A
      Standard Item N/A
      Optional Items Guillotine-Full Cutter / Partial Cutter, Dispenser , Bluetooth v4.2, WLAN, RS-232, Ethernet
      Agency Listing CE, FCC, cTUVus, Energy Star, RoHS, BSMI, RCM, CB, BIS
      Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
    • ArgoBar Pro V2.11

      Windows Vista, Windows 7, Windows 8.1, Windows 10 (32-bit or 64-bit) Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (32-bit or 64-bit). ​Support languages: English, Simplified Chinese, Traditional Chinese Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)

    • BarTender UL 2016 R7 3146

      Windows Vista, Windows 7, Windows 8 and 8.1, and Windows 10. Windows Server 2008, 2008 R2, 2012, 2012 R2, and 2016. 32-bit and 64-bit (x64) editions.

    • Printer Tool V1.0.13.269

      Printer Tool V1.0.13.269

    • Font Utility V3.04

      Windows XP and higher. This utility enables to true type font(TTF) and load the fonts into printers. Support: Windows 10(64bit/32bit), 8.1(64bit/32bit), 8(64bit/32bit), 7, 98, ME, 2000, NT, Vista, XP

    • Command Library V4.11

      Command Library V4.11 software developing tool for professional users. Support: Windows 10, Windows 8, Windows 7, Window Vista and 64bit/32bit editions.

    • Argox SDK V1.3.0 CHT

      SDK supports PC/Android/CE/Mobile platform, Windows 10,Windows 8,Windows 7,Window Vista and 64bit/32bit editions Windows Mobile V5.0/Windows CE V5.0/Microsoft Visual Studio 2008, PPLZ emulation only.

    • iLabelPrint V1.02 Google Play

      iLabelPrint is an app software designed by Argox for mobile printing demands when using Argox printer Bluetooth function connecting with “Android” or “iOS” mobile device such as smart phone, laptop computer or tablet; or LAN, WiFi and USB (Only for Android device that supports OTG; An OTG converter cable is required) connections to relative Argox printer models.

    • iLabelPrint V1.02 App Store

      iLabelPrint is an app software designed by Argox for mobile printing demands when using Argox printer Bluetooth function connecting with “Android” or “iOS” mobile device such as smart phone, laptop computer or tablet; or LAN, WiFi and USB (Only for Android device that supports OTG; An OTG converter cable is required) connections to relative Argox printer models.

    • iLabelPrint V1.02 APK

      iLabelPrint is an app software designed by Argox for mobile printing demands when using Argox printer Bluetooth function connecting with “Android” or “iOS” mobile device such as smart phone, laptop computer or tablet; or LAN, WiFi and USB (Only for Android device that supports OTG; An OTG converter cable is required) connections to relative Argox printer models.
