OS-314plus

product description
• 300dpi resolution model available
• Centronics Parallel, RS-232, USB and interfaces available
• Durable and easy maintenance : only 10 screws disassemble entire unit

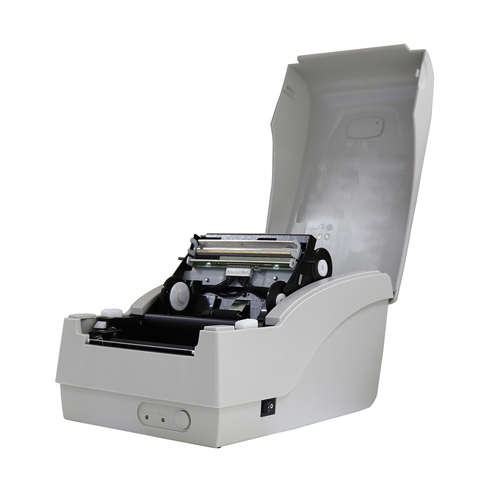

• Snap-in thermal print head loads in 2 seconds

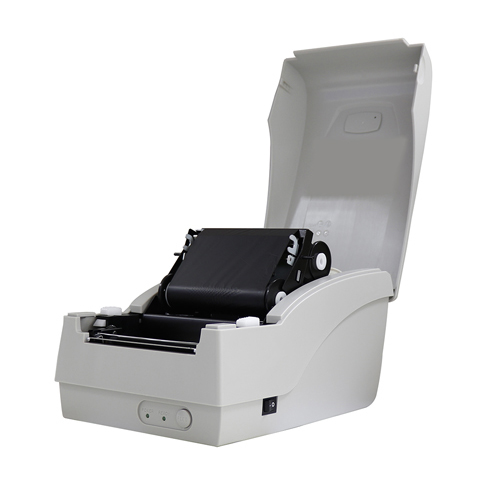

• Easy media loading & ribbon installation
• Detachable top cover for kiosk and other special applications
• PPLA, PPLB emulations available
• Support 1D/GS1 Data bar, 2D/Composite codes and QR barcodes
• Full range of options :Cutter, Stacker, RTC
Tags :
  • Printer-Printing-width-4"
  • Printer-Ribbon-length-100m

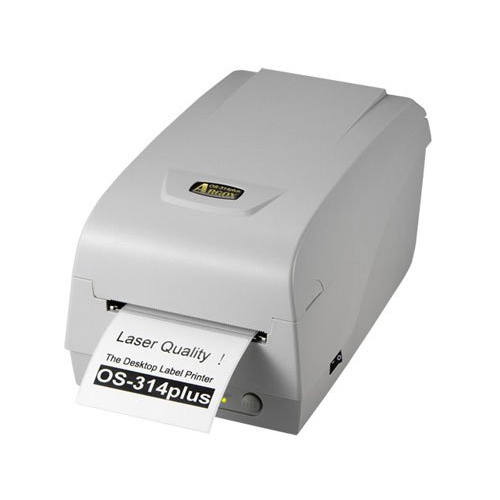

  • The OS-314plus is the newest generation of Argox's most successful medium volume printer model. Its attractive and stylish design is just one of several new features and advanced functions. The significantly larger on board memory increases print capability for producing a wider range of label applications. A full-speed USB interface adds flexibility for use with any of today's notebook and other computers. Its space-saving design offers the same small footprint and light weight as previous models for easy and convenient placement. The new OS-314plus maintains Argox's leading position as the industry standard for style, price, and performance.
  •  Printing Method Direct Thermal & Thermal Transfer
     Printing Resolution 300 dpi (12 dots/mm)
     Printing Speed Max. 4 ips
     Printing Length Max. 50”(1270mm)
     Printing Width Max. 4.16”(105mm)
     Memory 8MB DRAM, 4MB Flash ROM
     CPU Type 32 bit RISC microprocessor
     Sensors Reflective (Left side)

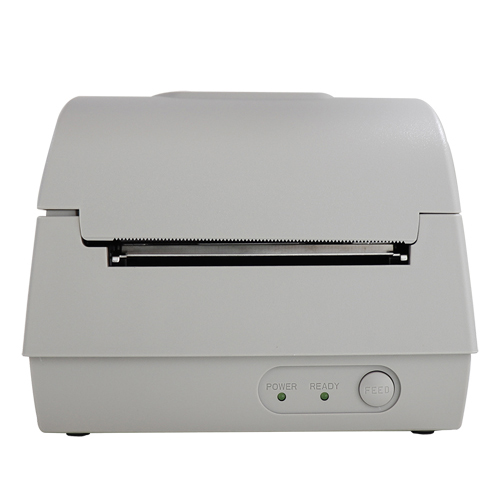

     Operation Interface LED Indicator x 2, Button(Feed) x 1

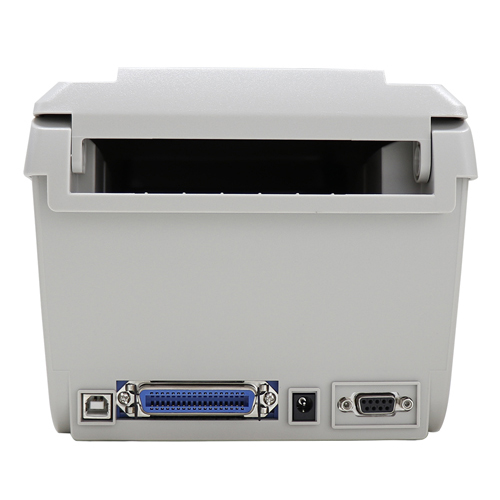

     Communication Interface USB device, RS-232, Parallel
     Fonts Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24x24 4 direction 0 ~ 270 rotation Soft fonts are downloadable Ability to print any Windows True Type font easily
     Wireless Security N/A
     1D Barcodes PPLA: Code 39, Code 93,Code 128/subset A/B/C, Codabar, Interleaved 2 of 5, UPC A/E/2/5 add-on, EAN-13/8, UCC/EAN 128, Postnet, Plessey, Interleaved 2 of 5, Interleaved 2 of 5 with a modulo 10 checksum, Interleaved 2 of 5 with a modulo 10 checksum and shipping bearer bars , Code 128, UCC/EAN Code 128 Random Weight, HBIC, Telepen , FIM PPLB: Code 39, Code 93, Code 128/ subset A,B,C, Codabar, Interleaved 2 of 5, Interleaved 2 of 5 with check sum digit, Interleaved 2 of 5 with human readable check digit, Matrix 2 of 5, UPC A/E 2 and 5 add-on, EAN-8/13, Code 128UCC, UCC/EAN, Postnet
     2D Barcodes PPLA: PDF-417, MaxiCode, Data Matrix (ECC200 only) ,QR Code, Composite codes PPLB: MaxiCode, PDF-417, QR Code, Composite codes
     Graphics PPLA: PCX, BMP, IMG, HEX,GDI PPLB: PCX, Binary raster, GDI (BMP files can be converted to PCX file in the printer utility)
     Emulation PPLA, PPLB
     Software-label Editing BarTender® from Seagull Scientific Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
     Software-utility Printer Utility, Font Utility
      Driver tools Argox Seagull Driver (Windows XP/Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver
     Media Type Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper
     Media Max. width 4.33”(110mm) Min. width 1” (25.4 mm) Thickness 0.0025”~0.01” (0.0635mm ~0.254mm) Max. roll capacity (OD): 4.3"(109 mm) Core size 0.5”(12.7mm) Max. roll capacity (OD): 4.3"(109 mm) Core size 1”(25.4mm) Optional Max. roll capacity (OD): 3.8"(96.5 mm) Core size 1.5”(38.1mm) Optional
     Ribbon Ribbon Width: 1”~4” Ribbon roll – Max. OD: 1.45”(37mm) Ribbon Length: Max. 92m Core size – ID: 0.5”(13mm) with notch Wax, Wax/Resin, Resin (Outside Ribbon)
     Drop Resistance N/A
     Printer Dimensions W 189mm x H 155mm x D 285mm
     Printer Weight 2.0 kgs
     Power Source Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 24V, 2.4A
     Battery N/A
     Operation Environment Operation Temperature: 40°F~100°F (4°C~38°C), 0% ~ 90% non-condensing Storage Temperature: -4°F~122°F (-20°C~50°C)
     Real Time Clock N/A
     Standard Item N/A
     Optional Items Rotary Cutter, External media stand, RTC Card
     Agency Listing CE, FCC, CCC, RoHS, BSMI
     Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
    • ArgoBar Pro V2.16

      Barcode editing software
      Support Windows Vista, Windows 7, Windows 8.1, Windows 10 (32-bit or 64-bit) Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (32-bit or 64-bit). ​
      Support languages: English, Simplified Chinese, Traditional Chinese Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)

    • BarTender 2022 R6

      Barcode editing software
      Support Windows11, Windows 10, Windows Server 2022, Server 2019, Server2016

    • BarTender 2016 R7

      Barcode editing software
      Support Windows11, Windows 10, Windows 8 and 8.1, Windows 7, Windows Vista, Windows Server 2022, Server 2019, Server2016, Server2012 R2, Server2012, Server 2008 R2, Server 2008

    • BarTender UL 10.1

      Barcode editing software
      Support Windows XP

    • Font Utility V3.04

      Font tool
      This tool software can use true type font (TTF) and printer fonts.
      Supports Windows XP or later versions

    • Printer Utility V4.37

      For use with additional printer settings.
      Supports Windows XP or later versions

    • Command Library V4.12

      Command Library V4.12 software development tool for professional users.
      Supports Windows XP or newer versions, and supports both 32-bit and 64-bit versions.
