OS-214plus

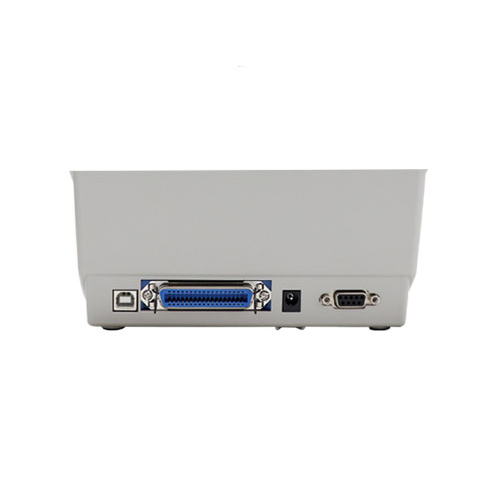

• Centronics Parallel, RS-232, USB and interfaces available.
• Durable and easy maintenance : only 10 screws disassemble entire unit.

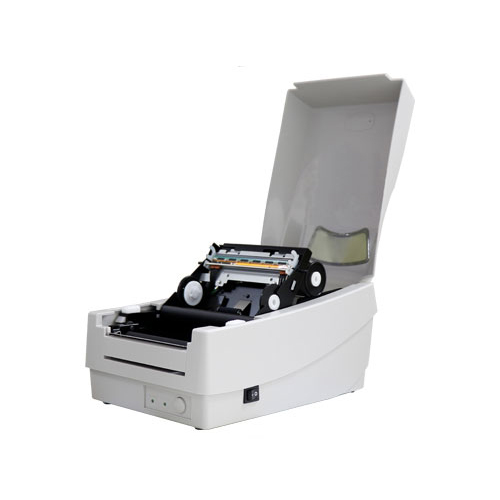

• Snap-in thermal print head loads in 2 seconds.

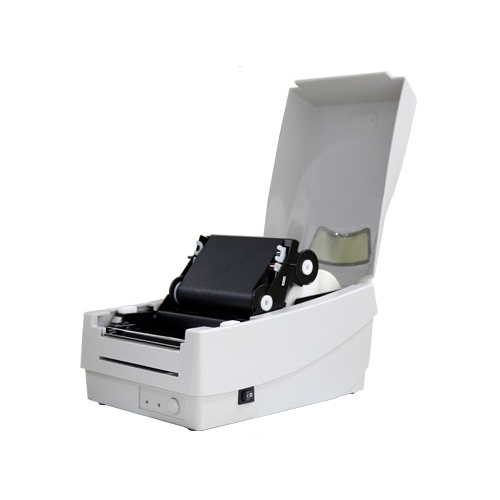

• Easy media loading; ribbon installation.
• Detachable top cover for kiosk and other special applications.
• PPLA, PPLB emulations available.
• Support 1D/GS1 Data bar, 2D/Composite codes and QR barcodes.
• Full range of options :Cutter, Stacker, Font card, RTC.
-

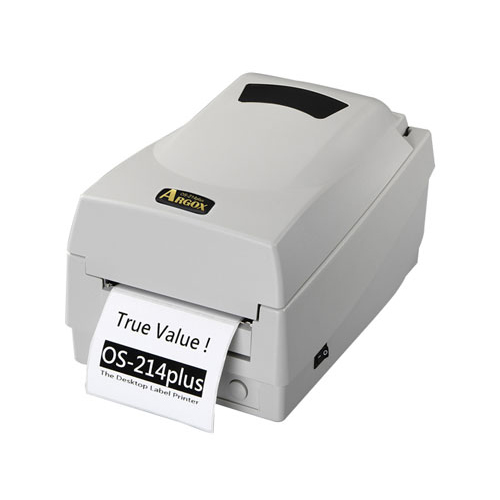

The OS-214plus is the newest generation of Argox's most successful medium volume printer model. Its attractive and stylish design is just one of several new features and advanced functions. The significantly larger onboard memory increases print capability for producing a wider range of label applications. A full-speed USB interface adds flexibility for use with any of today's notebook and other computers. Its space-saving design offers the same small footprint and light weight as previous models for easy and convenient placement. The new OS-214plus maintains Argox's leading position as the industry standard for style, price, and performance.
-
Printing Method Direct Thermal & Thermal Transfer Printing Resolution 203 dpi(8 dots/mm) Printing Speed Max. 4 ips Printing Length Max. 43”(1092mm) Printing Width Max. 4.16”(105mm) Memory 8MB DRAM, 4MB Flash ROM CPU Type 32 bit RISC microprocessor Sensors Reflective (Left side) Operation Interface LED Indicator x 2, Button(Feed) x 1 Communication Interface USB device, RS-232, Parallel Fonts Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24x24 4 direction 0 ~ 270 rotation Soft fonts are downloadable Ability to print any Windows True Type font easily Wireless Security N/A 1D Barcodes PPLA: Code 39, Code 93,Code 128/subset A/B/C, Codabar, Interleaved 2 of 5, UPC A/E/2/5 add-on, EAN-13/8, UCC/EAN 128, Postnet, Plessey, Interleaved 2 of 5, Interleaved 2 of 5 with a modulo 10 checksum, Interleaved 2 of 5 with a modulo 10 checksum and shipping bearer bars , Code 128, UCC/EAN Code 128 Random Weight, HBIC, Telepen , FIM PPLB: Code 39, Code 93, Code 128/ subset A,B,C, Codabar, Interleaved 2 of 5, Interleaved 2 of 5 with check sum digit, Interleaved 2 of 5 with human readable check digit, Matrix 2 of 5, UPC A/E 2 and 5 add-on, EAN-8/13, Code 128UCC, UCC/EAN, Postnet 2D Barcodes PPLA: PDF-417, MaxiCode, Data Matrix (ECC200 only) ,QR Code, Composite codes PPLB: MaxiCode, PDF-417, QR Code, Composite codes Graphics PPLA: PCX, BMP, IMG, HEX ,GDI PPLB: PCX, Binary raster , GDI Emulation PPLA, PPLB Software-label Editing BarTender® from Seagull Scientific Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf) Software-utility Printer Utility, Font Utility Driver tools Argox Seagull Driver (Windows XP/Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver Media Type Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper Media Max. width 4.33”(110mm) Min. width 1” (25.4 mm) Thickness 0.0025”~0.01” (0.0635mm ~0.254mm) Max. roll capacity (OD): 4.3"(109 mm) Core size 0.5”(12.7mm) Max. roll capacity (OD): 4.3"(109 mm) Core size 1”(25.4mm) Optional Max. roll capacity (OD): 3.8"(96.5 mm) Core size 1.5”(38.1mm) Optional Ribbon Ribbon Width: 1”~4” Ribbon roll – Max. OD: 1.45”(37mm) Ribbon Length: Max. 92m Core size – ID: 0.5”(13mm) with notch Wax, Wax/Resin, Resin (Outside Ribbon) Drop Resistance N/A Printer Dimensions W 186mm x H 165mm x D 278mm Printer Weight 2.0 kgs Power Source Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 24V, 2.4A Battery N/A Operation Environment Operation Temperature: 40°F~100°F (4°C~38°C), 0% ~ 90% non-condensing Storage Temperature: -4°F~122°F (-20°C~50°C) Real Time Clock N/A Standard Item N/A Optional Items Rotary Cutter,External media stand, RTC Card, Asian Font Card(Traditional Chinese, Simplified Chinese, Korean and Japan) Agency Listing CE, FCC, CCC, RoHS, BSMI Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications. -
-
OS Series Brochure EN
OS Series Brochure EN
-
-
-
OS seies User Manual EN
OS seies User Manual EN V1.0
-
OS seies User Manual PT
OS seies User Manual PT V1.0
-
OS seies User Manual ES
OS seies User Manual ES V1.0
-
OS seies User Manual TW
OS seies User Manual TW V1.0
-
OS Series Quick Installation Guide
OS Series Quick Installation Guide
-
Bartender UL Form making Users Guide
Bartender UL Form making Users Guide V2.02
-
-
-
ArgoBar Pro V2.16
Barcode editing software
Support Windows Vista, Windows 7, Windows 8.1, Windows 10 (32-bit or 64-bit) Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (32-bit or 64-bit).
Support languages: English, Simplified Chinese, Traditional Chinese Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf) -
BarTender 2021 R8
Barcode editing software
Support Windows11, Windows 10, Windows Server 2022, Server 2019, Server2016 -
BarTender 2016 R7
Barcode editing software
Support Windows11, Windows 10, Windows 8 and 8.1, Windows 7, Windows Vista, Windows Server 2022, Server 2019, Server2016, Server2012 R2, Server2012, Server 2008 R2, Server 2008 -
BarTender UL 10.1
Barcode editing software
Support Windows XP -
Font Utility V3.04
Font tool
For Windows XP and higher. This utility enables to true type font(TTF) and load the fonts into printers. Support: Windows 10(64bit/32bit), 8.1(64bit/32bit), 8(64bit/32bit), 7, ME, 2000, NT, Vista, XP -
Printer Utility V4.37
For additional printer settings. Support: Windows 10(64bit/32bit), 8.1(64bit/32bit), 8(64bit/32bit), 7, ME, NT, Vista, XP
-
Command Library V4.12
Command Library V4.12 software developing tool for professional users.
Support: Windows 10(64bit/32bit), Windows 8(64bit/32bit), Windows 7(64bit/32bit), Windows Vista(64bit/32bit), Windows XP(64bit/32bit) -
Argox SDK V1.4.0
SDK supports Java、C#/Windows/Android/Linux system, PPLB, PPLZ emulation.
-
-
-
Argox Seagull Driver Argox_2023.2_M-1
Windows Vista, Windows 7, Windows 8 and 8.1, and Windows 10. ,Windows 11,Windows Server 2008, 2008 R2, 2012, 2012 R2, and 2016. 32-bit or 64-bit (x64) editions.
-
Argox Seagull Driver XP
Windows XP
-
Argox Linux Printer Driver V1.8.0 32-bit
Ubuntu 11.10 ~ 16.04, Fedora 16 ~ 24, openSUSE 11.4 ~ 42.1, Red Hat Enterprise Linux Server 7.2, NeoKylin 6, Red Flag Linux 6, CUPS printing system for Linux (1.5 ~ 2.1.4)
-
Argox Linux Printer Driver V1.8.0 64-bit
Ubuntu 11.10 ~ 16.04, Fedora 16 ~ 24, openSUSE 11.4 ~ 42.1, Red Hat Enterprise Linux Server 7.2, NeoKylin 6, Red Flag Linux 6, CUPS printing system for Linux (1.5 ~ 2.1.4)
-
Argox macOS Printer Driver V1.8.0
for OS X EI Capitan (Version: 10.11.6) ~ macOS Monterey (Version: 12.2)
-
Argox RPi Printer Driver V1.8.0 (arm64, for 64-bit OS)
Raspberry Pi OS 64-bit, Ubuntu 64-bit desktop or server OS for arm64 architectures.
-
Argox RPi Printer Driver V1.8.0 (armhf, for 32-bit OS)
Raspbian Stretch with desktop,Ubuntu MATE for the Raspberry Pi 2 and Raspberry Pi 3
-
