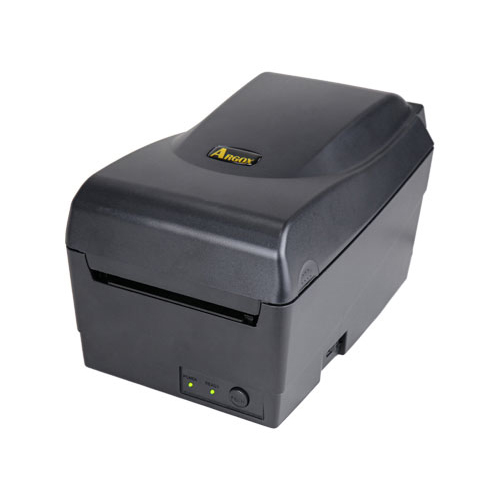

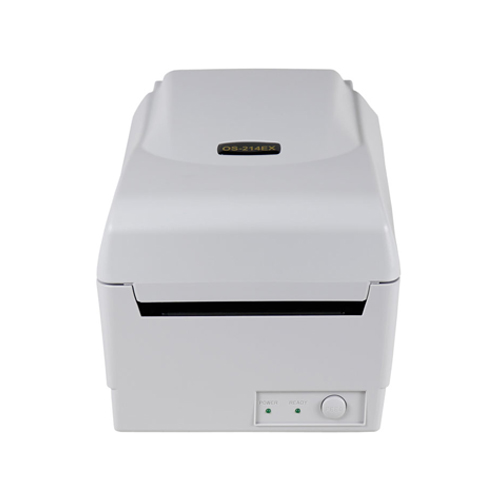

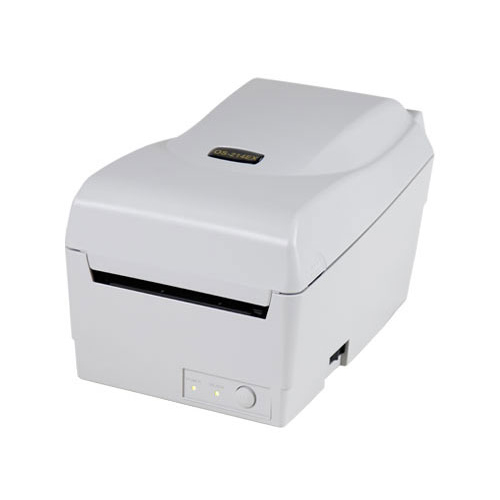

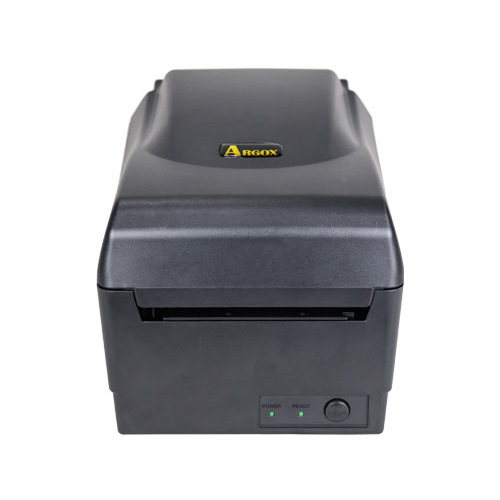

OS-214EX / OS-200

The best value entry level desktop printer
OS-214EX / OS-200 is the new generation of OS series printer. The OS series are Argox best-selling printer for 22 years. With more than two million users in worldwide, the OS series are known internationally for their stability and durability.

---

1. Space-saving
To continue the design of OS-214 series, the OS-214EX / OS-200 is easy to use and operate in space constrained areas.

---

2. Shell-Suit protection
Interface roof design can prevent the damage from water spill and keep machine close to wall, reduce operating space.

---

3. Flexibility for different medias
0.5" / 1" / 1.5" media core increased flexibility, no extra accessory required, support various medias.

---

4. User friendly

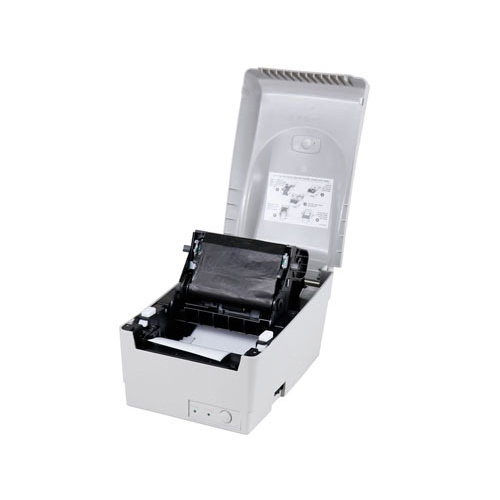

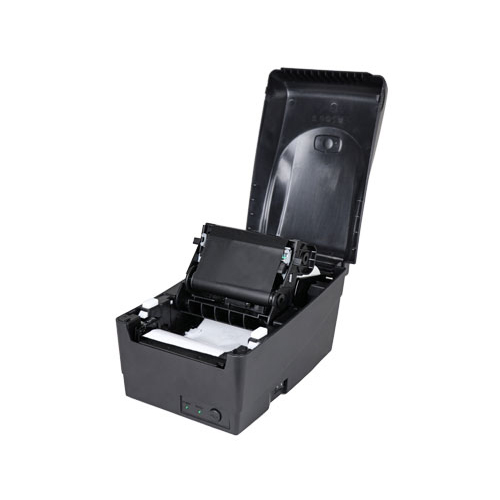

Print module opening angle up to 110˚, easy to load ribbon & paper brings conveniences & reduce installation time.

---

5.  Smooth generation migration
Operation methods are the same with the OS-214plus, customers are easy to get started with the new OS-214EX / OS-200.

---

6. Tearing-off the way needed
You can tear off the label the way you like or as needed, either upward or downward.

---

Applications

• Laundry
• Retail
• Healthcare
• Assets managment

Printing Method	Direct Thermal & Thermal Transfer
Printing Resolution	203 dpi (8 dots/mm)
Printing Speed	Max 6ips
Printing Length	Max. 100”(2540mm)
Printing Width	Max 4.25"(108mm)
Memory	32MB SDRAM, 16MB Flash ROM
CPU Type	32 bit RISC microprocessor
Sensors	Reflective sensor
Operation Interface	LED indicator x 2, Button(Feed) x 1

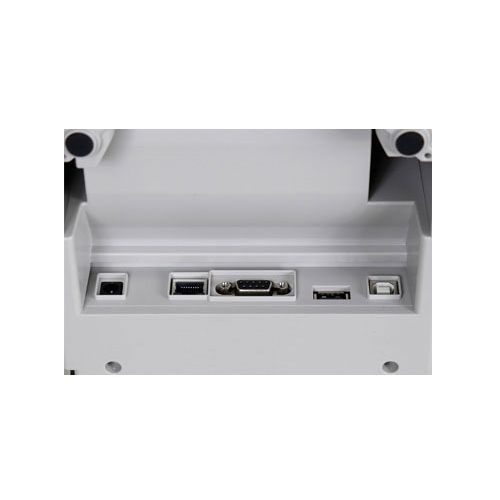

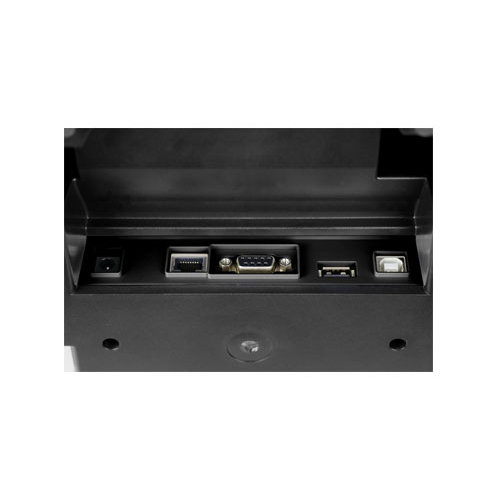

Communication Interface	OS-214EX: Ethernet, USB device, RS-232, USB host OS-200: USB device
Fonts	Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24x24 4 direction 0 ~ 270 rotation Soft fonts are downloadable Ability to print any Windows True Type font easily. Support scalable font
1D Barcodes	UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial 2of5, MSI, UPCadd-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirecional, GS1DataBar Limited, GS1 DataBar Expanded, GS1DataBar Expanded Stacked
2D Barcodes	QR Code, PDF417 (includingMicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode
Graphics	PPLA: PCX, BMP, IMG, HEX,GDI PPLB: PCX, BMP, Binary raster, GDI PPLZ: GRF, Hex, GDI
Emulation	PPLA, PPLB, PPLZ
Software-label Editing	BarTender® from Seagull Scientific Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
Software-utility	Printer Tool
Driver tools	Argox Seagull Driver (Windows Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver
Media Type	Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper
Media	Max. width: 4.3” (110mm). Min. width: 0.8” (20mm). Thickness: 0.0025”~0.01” (0.0635mm~0.254mm) Max roll capacity (OD): 5” (127mm) Core size: 0.5” (12.7mm) Max roll capacity (OD): 5” (127mm) Core size: 1” (25.4mm) Max roll capacity (OD): 5” (127mm) Core size: 1.5” (38.1mm)
Ribbon	Ribbon Width: 1”~4”(25.4mm~102mm), Ribbon roll – max OD: 1.45”(37mm), Ribbon Length: Max 92m. Core size – ID: 0.5”(12.7mm) with notch, Wax, Wax/Resin, Resin (Outside and Inside Ribbon)
Printer Dimensions	W 182.5mm x H 173.5mm x D 282mm
Printer Weight	3.4 lbs (1.54kgs)
Power Source	Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 24V, 2.4A
Operation Environment	Operation Temperature: 40°F~100°F (4°C~38°C), 0% ~ 90% non-condensing, Storage Temperature: -4°F~122°F (-20°C~50°C)
Agency Listing	CE, FCC, cULus, CCC, BIS, BSMI, RoHS
Optional Items	Cutter, External media stand, Label rewinder
Attention	*Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
