OS-2140

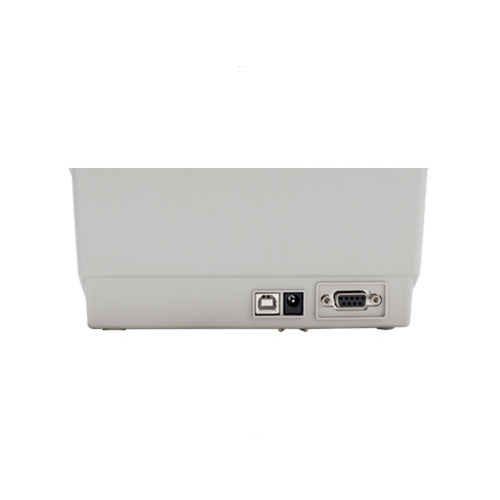

• RS-232 and USB interfaces available.
• Durable and easy maintenance : only 8 screws disassemble entire unit.

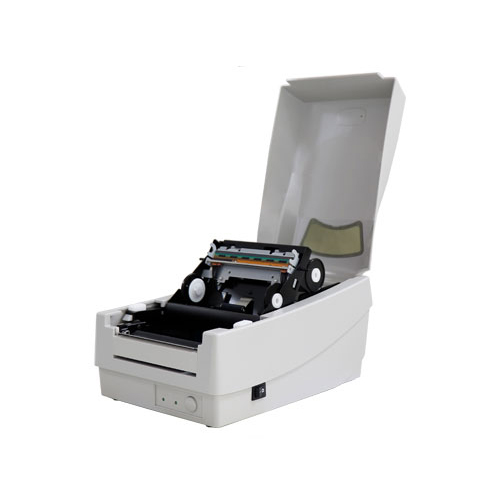

• Snap-in thermal print head loads in 2 seconds.

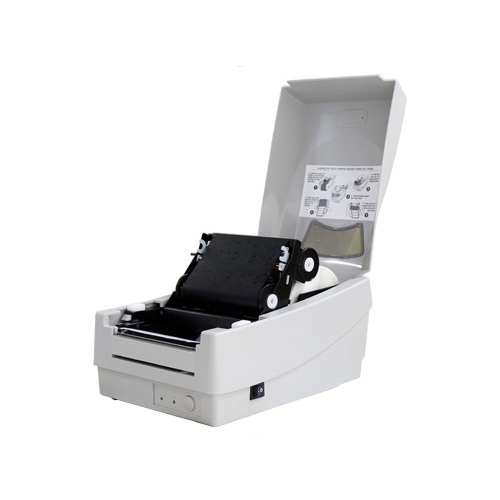

• Easy media loading & ribbon installation.
• Detachable top cover for kiosk and other special applications.
• PPLA, PPLB, PPLZ emulations available.
• Support 1D/GS1 Data bar, 2D/Composite codes and QR barcodes.
• Full range of options :Cutter, stacker, memory card, RTC.
• Ability to download 2-byte Asian fonts.
-
The OS-2140 thermal transfer printer provides advanced functions and performance in a durable, space-saving design. A rapid print speed of 5 inches per second ensures increased efficiency and the large 4MB Flash and 8MB DRAM onboard memory handles a broad range of applications. The USB interface ensures compatibility with a variety of computers and other devices. Other improvements include much quieter printing compared with other printers in this class.
The printer’s durable, high-impact ABS housing and all-metal print mechanism assure years of dependable performance. The printer supports 1D/GS1 Data Bar, 2D/Composite codes and QR barcodes.
Style, ease-of-use, space-savings, price, and printing performance are what define the new OS-2140 thermal transfer printer. -
Printing Method Direct Thermal & Thermal Transfer Printing Resolution 203 dpi(8 dots/mm) Printing Speed Max. 5 ips Printing Length Max. 100”(2540mm) Printing Width Max. 4.16”(105mm) Memory 8MB DRAM, 4MB Flash ROM CPU Type 32 bit RISC microprocessor Sensors Reflective (Left side) Operation Interface LED Indicator x 2, Button(Feed) x 1 Communication Interface USB device, RS-232 Fonts Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24x24 4 direction 0 ~ 270 rotation Soft fonts are downloadable Ability to print any Windows True Type font easily Wireless Security N/A 1D Barcodes PPLA: Code 39 (standard/with checksum digit), Code 93 Interleaved 2of 5 (standard/with checksum digit/with human readable check digit), EAN-8, EAN-13,UPC-A, UPC-E, Postnet, Codabar, Code 128 subset A/B/C, UCC/EAN-128, UCC/EAN-128 K-MART, UCC/EAN-128 , Random Weight, Plessey, HBIC, Telepen, FIM, UPC2, UPC5, GS1 Data Bar PPLB: Code 39 (standard/with checksum digit),Code 93 Interleaved 2 of 5 (standard/with checksum digit/w ith human readable check digit), EAN-8 (standard/2 digit add-on/5 digit add-on), EAN-13 (standard/2 digit add-on/5 digit add-on), UPC-A (standard/2 digit add-on/5digit add-on), UPC-E (standard/2 digit add-on/5 digit add-on), Postnet, Codabar, Code 128 subset A/B/C, Code 128 UCC (Shipping Container Code), Code 128 Auto, German, Postcode, Matrix 2 of 5,UCC/EAN 128, UPC Interleaved 2 of 5, GS1 Data Bar PPLZ: Code 39 (standard/with checksum digit), Code 93 Interleaved 2of 5 (standard/with checksum digit/with human readable check digit), EAN-8, EAN-13, UPC-A, UPC-E, Postnet, Codabar, Code 128 subset A/B/C, Code 128 Auto, UPC/EAN-Extension, Plessey, Industrial 2 of 5 , Standard 2 of 5, Logmars, MSI, Code 11, GS1 DataBar 2D Barcodes PPLA/PPLB/PPLZ: MaxiCode, PDF417, Data Matrix (ECC 200 only), QR code, Composite codes, Aztec PPLA/PPLZ: Micro PDF417 Graphics PPLA/PPLB: PCX, BMP, IMG, HEX,GDI, Binary raster(PPLB Only) PPLZ: GRF, Hex and GDI Emulation PPLA, PPLB, PPLZ Software-label Editing BarTender® from Seagull Scientific Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf) Software-utility Printer Utility, Font Utility Driver tools Argox Seagull Driver (Windows XP/Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver Media Type Roll-feed, die-cut, continuous, fan-fold, ticket in Direct thermal paper Media Max. width 4.33”(110mm) Min. width 1” (25.4 mm) Thickness 0.0025”~0.01” (0.0635mm ~0.254mm) Max roll capacity (OD): 4.3"(109 mm) Core size 0.5”(12.7mm) Max. roll capacity (OD): 4.3"(109 mm) Core size 1”(25.4mm) Optional Max. roll capacity (OD): 3.8"(96.5 mm) Core size 1.5”(38.1mm) Optional Ribbon Ribbon Width: 1”~4” Ribbon roll – Max. OD: 1.45”(37mm) Ribbon Length: Max. 92m Core size – ID: 0.5”(13mm) with notch Wax, Wax/Resin, Resin (Outside Ribbon) Drop Resistance N/A Printer Dimensions W 186mm x H 165mm x D 278mm Printer Weight 2.0 kgs Power Source Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 24V, 2.4A Battery N/A Operation Environment Operation Temperature: 40°F~100°F (4°C~38°C), 0% ~ 90% non-condensing Storage Temperature: -4°F~122°F (-20°C~50°C) Real Time Clock N/A Standard Item N/A Optional Items Rotary Cutter, RTC Card, External media stand Agency Listing CE, FCC, cTUVus, CCC, RoHS Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications. -
-
OS Series Brochure EN
OS Series Brochure EN
-
-
-
OS seies User Manual EN
OS seies User Manual EN V1.0
-
OS seies User Manual PT
OS seies User Manual PT V1.0
-
OS seies User Manual ES
OS seies User Manual ES V1.0
-
OS seies User Manual TW
OS seies User Manual TW V1.0
-
OS Series Quick Installation Guide
OS Series Quick Installation Guide
-
Bartender UL Form making Users Guide
Bartender UL Form making Users Guide V2.02
-
-
-
ArgoBar Pro V2.16
Barcode editing software
Support Windows Vista, Windows 7, Windows 8.1, Windows 10 (32-bit or 64-bit) Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (32-bit or 64-bit).
Support languages: English, Simplified Chinese, Traditional Chinese Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf) -
BarTender 2022 R6
Barcode editing software
Support Windows11, Windows 10, Windows Server 2022, Server 2019, Server2016 -
BarTender 2016 R7
Barcode editing software
Support Windows11, Windows 10, Windows 8 and 8.1, Windows 7, Windows Vista, Windows Server 2022, Server 2019, Server2016, Server2012 R2, Server2012, Server 2008 R2, Server 2008 -
BarTender UL 10.1
Barcode editing software
Support Windows XP -
Font Utility V3.04
Font tool
This tool software can use true type font (TTF) and printer fonts.
Supports Windows XP or later versions -
Printer Utility V4.37
For use with additional printer settings.
Supports Windows XP or later versions -
Command Library V4.12
Command Library V4.12 software development tool for professional users.
Supports Windows XP or newer versions, and supports both 32-bit and 64-bit versions. -
Argox SDK V1.4.0
Supports Java and C# programming languages
Supports Windows/Android/Linux operating platforms (different programming languages have different support ranges, please refer to the readme.html in the SDK for details)
Supports PPLB, PPLZ emulation.
-
-
-
Argox Seagull Driver Argox_2024.1_M-0
Windows Vista, Windows 7, Windows 8 and 8.1, and Windows 10. ,Windows 11,Windows Server 2008, 2008 R2, 2012, 2012 R2, and 2016. 32-bit or 64-bit (x64) editions.
-
Argox Seagull Driver XP
Windows XP
-
Argox Linux Printer Driver V1.9.1 32-bit
Supports Linux 32-bit version.
Supports CUPS 2.1.X or later. -
Argox Linux Printer Driver V1.9.1 64-bit
Supports Linux 64-bit version.
Supports CUPS 2.1.X or later. -
Argox macOS Printer Driver V1.9.1
Supports macOS (available on M1 or later series, but requires Rosetta-2 to be installed).
Supports CUPS 2.1.X or later. -
Argox RPi Printer Driver V1.9.1 (arm64, for 64-bit OS)
Raspberry Pi OS 64-bit, Ubuntu 64-bit desktop or server OS for arm64 architectures.
-
Argox RPi Printer Driver V1.9.1 (armhf, for 32-bit OS)
Raspbian Stretch with desktop,Ubuntu MATE for the Raspberry Pi 2 and Raspberry Pi 3
-
