O4-350 Pro

product description
• Clamshell design, easy loading.
• Printing speed upgrade to 6 inches/sec.
• Multiple interfaces.
Tags :
  • Printer-Printing-width-4"
  • Printer-Ribbon-length-100m
Compare Inquire

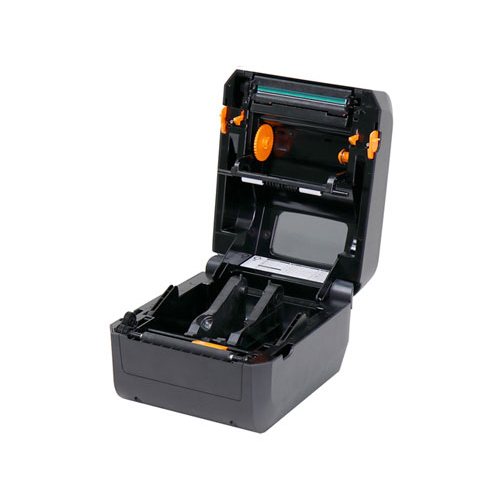

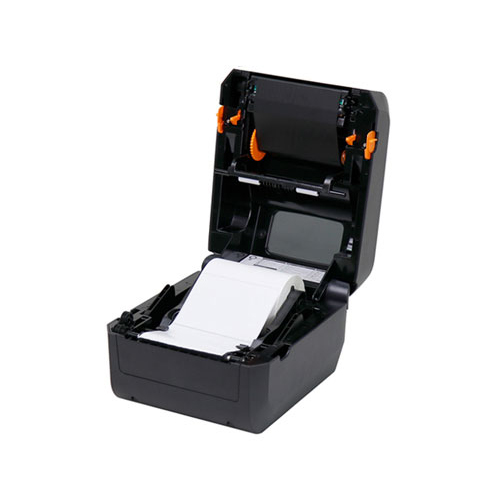

  • The O4 Pro series features a user-friendly clamshell design that allows users to simply open the cover and loading ribbon and media. Featuring 6 ips print speed, even print with the highest speed, it can still maintain the perfect print quality.The O4 Pro series has built-in Ethernet, Dual USB hosts, USB device, RS-232 and it can be expended with Wi-Fi, Bluetooth v4.2.

    cp-2140ex_05

  •   Printing Method Direct Thermal & Thermal Transfer
      Printing Resolution 300 dpi (12 dots/mm)
      Printing Speed Max. 6 ips
      Printing Length Max. 50”(1270 mm)
      Printing Width Max. 4.16”(105.7 mm)
      Memory 128 MB SDRAM, 128MB Flash ROM
      CPU Type 32 bit RISC microprocessor
      Sensors Reflective sensor x 1 (movable) & Transmissive sensor x 1 (fixed, 6.27mm offset)
      Operation Interface LED Indicator x 2, Button(Feed) x 1

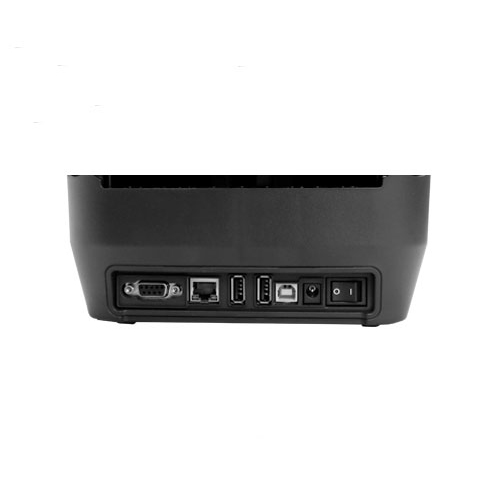

      Communication Interface USB device, RS-232, Ethernet, USB host x 2
      Fonts Internal character sets standard, 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm)
    Internal fonts are expandable up to 24x24 4 direction 0 ~ 270 rotation
    Soft fonts are downloadable, GB 18030 Standard (Chinese coded character set) support.
    Ability to print any Windows True Type font easily. Support scalable font
      Wireless Security N/A
      1D Barcodes PPLA: Code 39、UPC-A、UPC-E、Code 128 subset A/B/C、EAN-13、EAN-8、HBIC、Codabar、Plessey、UPC2、UPC5、Code 93、Postnet、UCC/EAN-128、,UCC/EAN-128 K-MART、 UCC/EAN-128 Random weight、Telepen、FIM、Interleaved 2 of 5 (Standard/with modulo 10 checksum/ with human readable check digit/ with modulo 10 checksum & shipping bearer bars) 、GS1 Data bar (RSS)
    PPLB: Code 39、 UPC-A、 UPC-E、 Matrix 2 of 5、 UPC-Interleaved 2 of 5、Code 39 with check sum digit 、Code 93、EAN-13、EAN-8 (Standard, 2 /5digit add-on) 、Codabar、Postnet、Code128 subset A/B/C、Code 128 UCC (shipping container code) 、Code 128 auto、UCC/EAN code 128 (GS1-128) 、 Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、German Postcode、Matrix 2 of 5、 UPC Interleaved 2 of 5、 EAN-13 2/5 digit add-on、 UPCA 2/5 digit add-on、UPCE 2/5 digit add-on、GS1 Data bar (RSS)
    PPLZ: Code39、 UPC-A、 UPC-E、 Postnet、 Code128 subset A/B/C、Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、Code 93、Code 39 with check sum digit、MSI、EAN-8、Codabar、Code 11、EAN-13、Plessey、GS1 Data bar (RSS) 、 Industrial 2 of 5、 Standard 2 of 5、 Logmars
      2D Barcodes MaxiCode, PDF417, Data Matrix (ECC 200 only), QR code, Composite Codes, Aztec
      Graphics PPLA: PCX, BMP, IMG, GDI and HEX format files
    PPLB: PCX , Binary Raster, BMP and GDI
    PPLZ: GRF, Hex and GDI
      Emulation PPLA, PPLB, PPLZ, Auto
      Software-label Editing BarTender, ArgoxBar Pro, Printer Tool, Font Utility, iLabelPrint+
      Software-utility Printer Tool
      Driver tools Windows Driver for Vista/Win7/Win8/Win10, LINUX Driver, macOS Driver, Raspberry Pi Driver
      Media Type Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper and fabric label
      Media Max. width: 4.65” (118mm). Min. width: 0.8” (20mm). Thickness: 0.0024”~0.008” (0.06mm~0.2mm)
    5”(127mm) OD on a 1”/1.5” (25.4/38 mm) ID core; 4.5”(115mm) OD on a 0.5” (12.7mm) ID core
    Dealer Option external media stand 8” OD on 1”/3” ID Core
      Ribbon Ribbon width: 1”~4.33”(25.4 mm~110mm), Ribbon length: Max. 110m. Core size ID 0.5”(12.7 mm), Core width: 4.33”(110mm)with notch Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect)
      Drop Resistance N/A
      Printer Dimensions W 209mm x H 179.2mm x D 266mm
      Printer Weight 2.2 kgs
      Power Source Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 24V, 2.4A
      Battery N/A
      Operation Environment Operation Temperature: 40°F~100°F (4°C~38°C), 0% ~ 90% non-condensing Storage Temperature: -4°F~122°F (-20°C~50°C)
      Real Time Clock N/A
      Standard Item N/A
      Optional Items Guillotine-Full Cutter , Rotary Cutter,  Peeler , External media stand,Bluetooth v2.1, Bluetooth v4.2, WLAN
      Agency Listing CB, CE, FCC, IC, RoHS, UL
      Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.

    • ArgoBar Pro V2.16

      Barcode editing software
      Support Windows Vista, Windows 7, Windows 8.1, Windows 10 (32-bit or 64-bit) Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (32-bit or 64-bit). ​
      Support languages: English, Simplified Chinese, Traditional Chinese Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)

      Download

    • BarTender 2022 R6

      Barcode editing software
      Support Windows11, Windows 10, Windows Server 2022, Server 2019, Server2016

      Download

    • BarTender 2016 R7

      Barcode editing software
      Support Windows11, Windows 10, Windows 8 and 8.1, Windows 7, Windows Vista, Windows Server 2022, Server 2019, Server2016, Server2012 R2, Server2012, Server 2008 R2, Server 2008

      Download

    • Printer Tool V1.1.1

      Printer setup software
      Supports Windows XP or later, and requires .Net Framework 3.5

      Download

    • Font Utility V3.04

      Font tool
      This tool software can use true type font (TTF) and printer fonts.
      Supports Windows XP or later versions

      Download

    • Argox SDK V1.4.0

      Supports Java and C# programming languages
      Supports Windows/Android/Linux operating platforms (different programming languages ​​have different support ranges, please refer to the readme.html in the SDK for details)
      Supports PPLB, PPLZ emulation.

      Download

    • iLabelPrint+ V2.3.3 Google Play

      iLabelPrint+ is a label design and printing application for mobile devices. We can use this application to easily design practical or professional labels, and output them to label paper with the connected ARGOX label printer. Support Bluetooth, LAN, WiFi, USB OTG connection on Android v8.0 and above.

      Download

    • iLabelPrint+ V2.3.3 App Store

      iLabelPrint+ is a label design and printing application for mobile devices. We can use this application to easily design practical or professional labels, and output them to label paper with the connected ARGOX label printer. Support Bluetooth, LAN, WiFi connection on iOS 13 and above.

      Download
