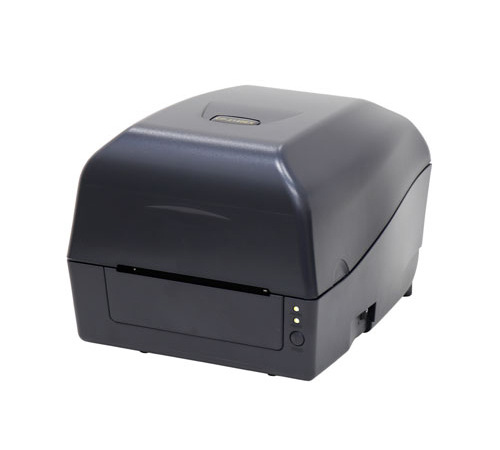

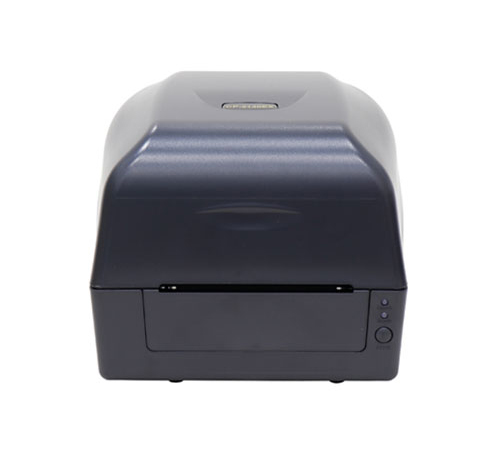

CX-3040 Pro / CX-3140 Pro Using new generation desktop printer to save time and money. Feature-rich to make daily work simple and easy.
Shell Suit design:
Interface roof feature can avoid interface from water spill damage and keep machine close to wall, reduce operating space.

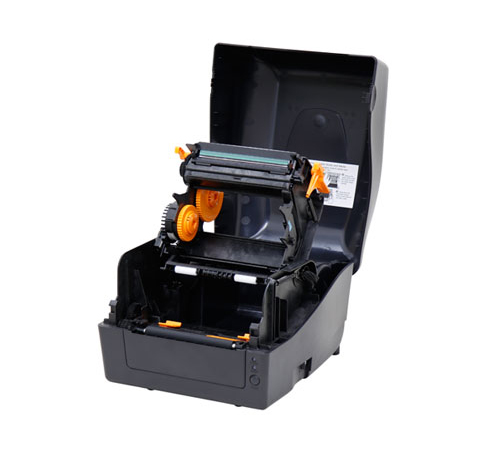

Easy to load media:
Large loading space to help media and ribbon installation very easily.
Durable life:
Inherited the turtle spirit, integrated structure makes CX Pro Series solid and robust.
Performance enhance:
Expanded SDRAM and Flash ROM can store more fonts, forms, graphics.
-
Printing Method Direct Thermal & Thermal Transfer Printing Resolution 300 dpi(12 dots/mm) Printing Speed Max. 4 ips Printing Length Max. 50”(1270mm) Printing Width Max. 4.16”(105.7mm) Memory 128MB DRAM, 128MB Flash ROM CPU Type 32 bit RISC microprocessor Sensors Reflective sensor x 1 (Movable) & Media Transmissive sensor x 1 (centrally fixed) Operation Interface LED Indicator x 2, Button(Feed) x 1 Communication Interface CX-3040 Pro : USB device, CX-3140 Pro : Ethernet, USB device, RS-232, USB host Fonts Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24x24 4 direction 0° ~ 270° rotation Soft fonts are downloadable Ability to print any Windows True Type font easily. Support scalable font. GB 18030 Standard (Chinese coded character set) support Wireless Security N/A 1D Barcodes UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial 2of5, MSI, UPCadd-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirecional, GS1DataBar Limited, GS1 DataBar Expanded, GS1DataBar Expanded Stacked 2D Barcodes QR Code, PDF417 (includingMicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode Graphics PPLA: PCX, BMP, IMG, HEX and GDI format files PPLB: PCX, BMP , Binary Raster, and GDI PPLZ: GRF, Hex and GDI Emulation PPLA, PPLB, PPLZ Software-label Editing BarTender® from Seagull Scientific. Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf), iLabelPrint+ Software-utility Printer Tool, Font Utility Driver tools Argox Seagull Driver (Windows Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver Media Type Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper Media Max. width: 4.65” (118mm). Min. width: 0.8” (20mm). Thickness: 0.0024”~0.008” (0.06mm~0.2mm) Max. roll capacity (OD): 5"(127 mm) Core size 1”(25.4mm) Max. roll capacity (OD): 4.5"(114.3 mm) Core size 0.5”(12.7mm) Max. roll capacity (OD): 4.7"(120 mm) Core size 1.5”(38.1mm) Ribbon Ribbon width: 1”~4.33”(25.4mm~110mm), Ribbon length: Max. 300m. Core size ID: 1”(25.4mm), optional: 0.5”(12.7mm), Core width: 2.6”(67mm) Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect) Drop Resistance N/A Printer Dimensions W 226mm x H 188mm x D 276mm Printer Weight 2.1 kgs Power Source Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 24V, 2.4A Battery N/A Operation Environment Operation Temperature: 40°F~100°F (4°C~38°C), 0% ~ 90% non-condensing Storage Temperature: -4°F~122°F (-20°C~50°C) Real Time Clock N/A Standard Item N/A Optional Items Guillotine Cutter, Rotary Cutter, Peeler, External media stand Agency Listing CE, FCC, cULus, RoHS, BIS, BSMI, KC Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications. -
-
CX Pro Series Brochure TH
CX Pro Series Brochure TH V1.0
-
CX Pro Series Brochure VN
CX Pro Series Brochure VN V1.0
-
CX Pro Series Brochure EN
CX Pro Series Brochure EN V2.0
-
-
-
CP-EX Pro / CX Pro Series Series User Manual
CP-EX Pro Series User Manual EN V1.0
-
CX Pro Series Quick Installation Guide
CX Pro Series Quick Installation Guide
-
-
-
ArgoBar Pro V2.16
Barcode editing software
Support Windows Vista, Windows 7, Windows 8.1, Windows 10 (32-bit or 64-bit) Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (32-bit or 64-bit).
Support languages: English, Simplified Chinese, Traditional Chinese Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf) -
BarTender 2022 R6
Barcode editing software
Support Windows11, Windows 10, Windows Server 2022, Server 2019, Server2016 -
BarTender 2016 R7
Barcode editing software
Support Windows11, Windows 10, Windows 8 and 8.1, Windows 7, Windows Vista, Windows Server 2022, Server 2019, Server2016, Server2012 R2, Server2012, Server 2008 R2, Server 2008 -
Printer Tool V1.1.1
Printer setup software
Supports Windows XP or later, and requires .Net Framework 3.5 -
Font Utility V3.04
Font tool
This tool software can use true type font (TTF) and printer fonts.
Supports Windows XP or later versions -
Command Library V4.12
Command Library V4.12 software development tool for professional users.
Supports Windows XP or newer versions, and supports both 32-bit and 64-bit versions. -
Argox SDK V1.4.0
Supports Java and C# programming languages
Supports Windows/Android/Linux operating platforms (different programming languages have different support ranges, please refer to the readme.html in the SDK for details)
Supports PPLB, PPLZ emulation. -
iLabelPrint+ V2.3.3 Google Play
iLabelPrint+ is a label design and printing application for mobile devices. We can use this application to easily design practical or professional labels, and output them to label paper with the connected ARGOX label printer. Support Bluetooth, LAN, WiFi, USB OTG connection on Android v8.0 and above.
-
iLabelPrint+ V2.3.3 App Store
iLabelPrint+ is a label design and printing application for mobile devices. We can use this application to easily design practical or professional labels, and output them to label paper with the connected ARGOX label printer. Support Bluetooth, LAN, WiFi connection on iOS 13 and above.
-
-
-
Argox Seagull Driver Argox_2024.1_M-0
Windows Vista, Windows 7, Windows 8 and 8.1, and Windows 10. ,Windows 11,Windows Server 2008, 2008 R2, 2012, 2012 R2, and 2016. 32-bit or 64-bit (x64) editions.
-
Argox Linux Printer Driver V1.9.1 32-bit
Supports Linux 32-bit version.
Supports CUPS 2.1.X or later. -
Argox Linux Printer Driver V1.9.1 64-bit
Supports Linux 64-bit version.
Supports CUPS 2.1.X or later. -
Argox macOS Printer Driver V1.9.1
Supports macOS (available on M1 or later series, but requires Rosetta-2 to be installed).
Supports CUPS 2.1.X or later. -
Argox RPi Printer Driver V1.9.1 (arm64, for 64-bit OS)
Raspberry Pi OS 64-bit, Ubuntu 64-bit desktop or server OS for arm64 architectures.
-
Argox RPi Printer Driver V1.9.1 (armhf, for 32-bit OS)
Raspbian Stretch with desktop,Ubuntu MATE for the Raspberry Pi 2 and Raspberry Pi 3
-
