CP-2140EX Pro

product description
• Shell Suit design
• Easy to load media
• Durable life
• Performance enhance
Tags :
  • Printer-Printing-width-4"
  • Printer-Ribbon-length-300m
  • CP-2140EX Pro Using new generation desktop printer to save time and money.Feature-rich to make daily work simple and easy.

    Shell Suit design:
    Interface roof feature can avoid interface from water spill damage and keep machine close to wall, reduce operating space.

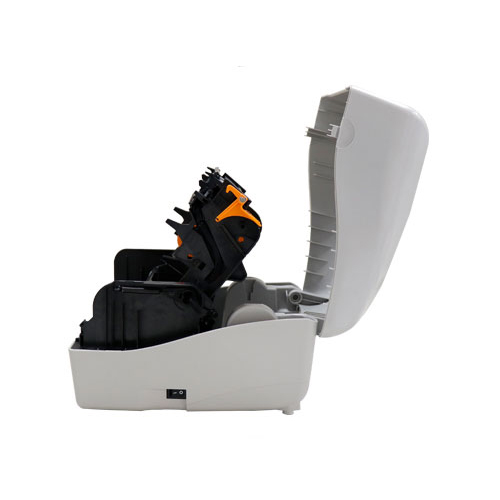

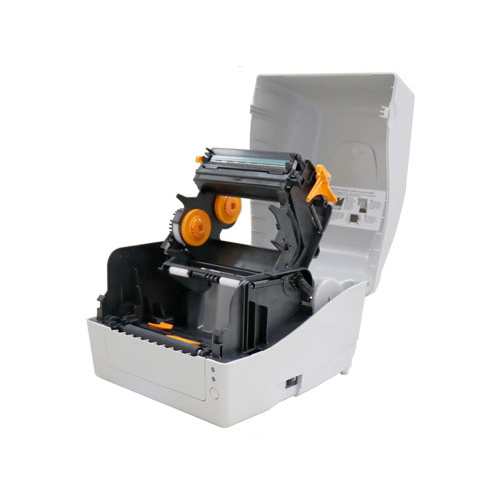

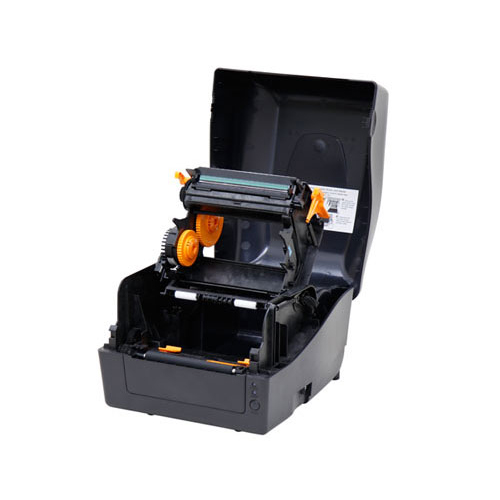

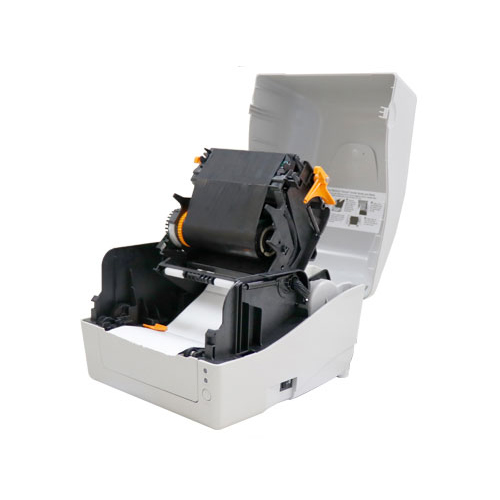

    Easy to load media:
    Large loading space to help media and ribbon installation very easily.

    Durable life:
    Inherited the turtle spirit, integrated structure makes CP-EX Pro Series solid and robust.

    Performance enhance:
    Print speed is faster 20% than old CP series, expanded SDRAM and Flash ROM can store more fonts, forms, graphics.
    09
  •   Printing Method Direct Thermal & Thermal Transfer
      Printing Resolution 203 dpi(8 dots/mm)
      Printing Speed Max. 6 ips
      Printing Length Max. 100”(2540mm)
      Printing Width Max. 4.25”(108mm)
      Memory 128MB DRAM, 128MB Flash ROM
      CPU Type 32 bit RISC microprocessor
      Sensors Reflective sensor x 1 (Movable) & Media Transmissive sensor x 1 (centrally positioned)
      Operation Interface LED Indicator x 2, Button(Feed) x 1
      Communication Interface USB (A/B), LAN (10/100Mbps), Serial (RS-232)(transmission rate: up to 115200 bps)
      Fonts Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24x24 4 direction 0° ~ 270° rotation Soft fonts are downloadable Ability to print any Windows True Type font easily. Support scalable font (Optional). GB 18030 Standard (Chinese coded character set) support.
      Wireless Security N/A
      1D Barcodes PPLA: Code 39、UPC-A、UPC-E、Code 128 subset A/B/C、 EAN-13、 EAN-8、 HBIC、 Codabar、 Plessey、UPC2、 UPC5、 Code 93、 Postnet、 UCC/EAN-128、 ,UCC/EAN-128 K-MART、UCC/EAN-128 Random weight、Telepen、FIM、I nterleaved 2 of 5 (Standard/with modulo 10 checksum/ with human readable check digit/ with modulo 10 checksum & shipping bearer bars) 、GS1 Data bar (RSS) PPLB: Code 39、UPC-A、UPC-E、Matrix 2 of 5、UPC-Interleaved 2 of 5、 Code 39 with check sum digit 、 Code 93、 EAN-13、EAN-8 (Standard, 2 /5digit add-on) 、Codabar、Postnet、Code128 subset A/B/C、Code 128 UCC (shipping container code) 、Code 128 auto、UCC/EAN code 128 (GS1-128) 、Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、 German Postcode、 Matrix 2 of 5、 UPC Interleaved 2 of 5、 EAN-13 2/5 digit add-on、 UPCA 2/5 digit add-on、UPCE 2/5 digit add-on、 64 Compact Printer Series - User’s Manual GS1 Data bar (RSS) PPLZ: Code39、UPC-A、UPC-E、Postnet、Code128 subset A/B/C、Interleave 2 of 5、Interleaved 2 of 5 with check sum 、Interleaved 2 of 5 with human readable check digit、Code 93、Code 39 with check sum digit、MSI、EAN-8、Codabar、Code 11、EAN-13、Plessey、 GS1 Data bar (RSS) 、 Industrial 2 of 5、Standard 2 of 5、Logmars
      2D Barcodes PPLA: MaxiCode、PDF417、Data Matrix (ECC 200 only) 、QR code、Composite Codes PPLB: MaxiCode、PDF417、Data Matrix (ECC 200 only) 、QR code、Composite Codes PPLZ: QR code、、PDF417、Data Matrix (ECC 200 only) 、MaxiCode Composite Codes
      Graphics PPLA: PCX, BMP, IMG, HEX and GDI format files PPLB: PCX, PCX , BMP , Binary Raster, and GDI PPLZ: GRF, Hex and GDI
      Emulation PPLA, PPLB, PPLZ
      Software-label Editing BarTender® from Seagull Scientific. Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf), iLabelPrint+
      Software-utility Printer Tool, Font Utility
      Driver tools Argox Seagull Driver (Windows Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver
      Media Type Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper
      Media Max. width: 4.65” (118mm). Min. width: 0.8” (20mm). Thickness: 0.0024”~0.008” (0.06mm~0.2mm) Max. roll capacity (OD): 5"(127 mm) Core size 1”(25.4mm) Max. roll capacity (OD): 4.5"(114.3 mm) Core size 0.5”(12.7mm) Max. roll capacity (OD): 4.7"(120 mm) Core size 1.5”(38.1mm)
      Ribbon Ribbon width: 1”~4.33”(25.4mm~110mm), Ribbon length: Max. 300m. Core size ID: 1”(25.4mm), optional: 0.5”(12.7mm), Core width: 2.6”(67mm) Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect)
      Drop Resistance N/A
      Printer Dimensions W 226mm x H 188mm x D 276mm
      Printer Weight 2.1 kgs
      Power Source Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 24V, 2.4A
      Battery N/A
      Operation Environment Operation Temperature: 40°F~100°F (4°C~38°C), 0% ~ 90% non-condensing Storage Temperature: -4°F~122°F (-20°C~50°C)
      Real Time Clock N/A
      Standard Item N/A
      Optional Items Guillotine Cutter, Rotary Cutter, Peeler, External media stand
      Agency Listing CE, FCC, cULus, CCC, RoHS, BIS, BSMI, KC
      Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
    • ArgoBar Pro V2.16

      Barcode editing software
      Support Windows Vista, Windows 7, Windows 8.1, Windows 10 (32-bit or 64-bit) Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (32-bit or 64-bit). ​
      Support languages: English, Simplified Chinese, Traditional Chinese Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)

    • BarTender 2022 R6

      Barcode editing software
      Support Windows11, Windows 10, Windows Server 2022, Server 2019, Server2016

    • BarTender 2016 R7

      Barcode editing software
      Support Windows11, Windows 10, Windows 8 and 8.1, Windows 7, Windows Vista, Windows Server 2022, Server 2019, Server2016, Server2012 R2, Server2012, Server 2008 R2, Server 2008

    • Printer Tool V1.1.1

      Printer setup software

    • Font Utility V3.04

      Font tool
      For Windows XP and higher. This utility enables to true type font(TTF) and load the fonts into printers. Support: Windows 10(64bit/32bit), 8.1(64bit/32bit), 8(64bit/32bit), 7, ME, 2000, NT, Vista, XP

    • Command Library V4.12

      Command Library V4.12 software developing tool for professional users.
      Support: Windows 10(64bit/32bit), Windows 8(64bit/32bit), Windows 7(64bit/32bit), Windows Vista(64bit/32bit), Windows XP(64bit/32bit)

    • Argox SDK V1.4.0

      SDK supports Java、C#/Windows/Android/Linux system, PPLB, PPLZ emulation.

    • iLabelPrint+ V2.1.2 Google Play

      iLabelPrint+ is a label design and printing application for mobile devices. We can use this application to easily design practical or professional labels, and output them to label paper with the connected ARGOX label printer. Support Blurtooth, LAN, WiFi, USB OTG connection on Android v7.0 and above.

    • iLabelPrint+ V2.1.2 App Store

      iLabelPrint+ is a label design and printing application for mobile devices. We can use this application to easily design practical or professional labels, and output them to label paper with the connected ARGOX label printer. Support Blurtooth, LAN, WiFi connection on iOS 13 and above.
