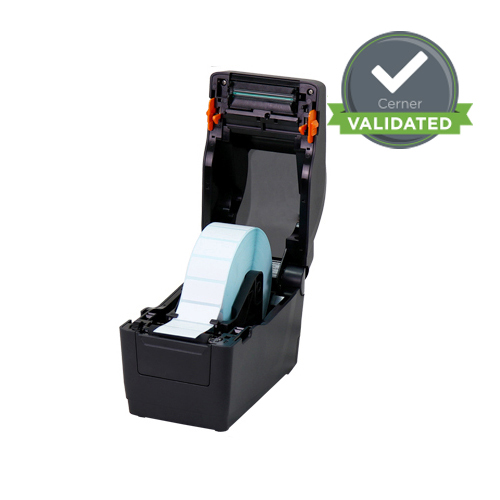

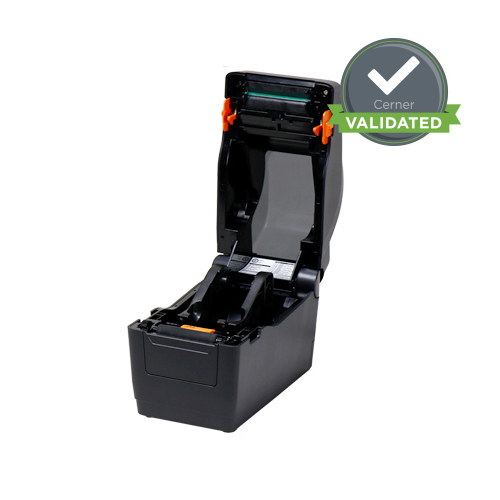

D2系列採用用戶友善的翻蓋設計,可讓用戶輕鬆打開外蓋和加載標籤。小巧的D2系列適合狹窄的空間並支援廣泛的應用。D2系列內置USB 主機,USB設備,並可通過乙太網/ RS232,Wi-Fi,藍牙v4.2進行擴充。 D2系列具有Cerner認證。
-
列印方式 熱感式 解析度 300 dpi(12 dots/mm) 最大列印速度 5 ips 最大列印長度 50”(1270mm) 最大列印寬度 2.24”(56.9 mm) 記憶體 32 MB SDRAM, 16MB Flash ROM (USB 隨身碟可儲存最大至 32GB) 中央處理器 32 位元RISC 微處理器 感測裝置 紙張反射式感測器x 1(可調整) & 紙張穿透式感測器x 1(固定,6.27mm偏移) 操作介面 LED指示燈x 2 (三種燈色) ,按鍵x 1 通訊介面 USB device, USB host 字型 5種國際標準字型(1.25mm~ 6mm),最大可達 24x24,四方向旋轉0°~270°,可由軟體下載Windows True Type 字型 無線網絡安全 N/A 一維條碼 PPLA: Code 39、UPC-A、UPC-E、Code 128 subset A/B/C、EAN-13、EAN-8、HBIC、Codabar、Plessey、UPC2、UPC5、Code 93、Postnet、UCC/EAN-128、UCC/EAN-128 K-MART、 UCC/EAN-128 Random weight、Telepen、FIM、Interleaved 2 of 5 (Standard/with modulo 10 checksum/ with human readable check digit/ with modulo 10 checksum & shipping bearer bars) 、GS1 Data bar (RSS) PPLB: Code 39、 UPC-A、 UPC-E、 Matrix 2 of 5、 UPC-Interleaved 2 of 5、Code 39 with check sum digit 、Code 93、EAN-13、EAN-8 (Standard, 2 /5digit add-on) 、Codabar、Postnet、Code128 subset A/B/C、Code 128 UCC (shipping container code) 、Code 128 auto、 UCC/EAN code 128 (GS1-128) 、 Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、German Postcode、Matrix 2 of 5、 UPC Interleaved 2 of 5、 EAN-13 2/5 digit add-on、 UPCA 2/5 digit add-on、UPCE 2/5 digit add-on、GS1 Data bar (RSS) PPLZ: Code39、 UPC-A、 UPC-E、 Postnet、 Code128 subset A/B/C、Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、Code 93、Code 39 with check sum digit、MSI、EAN-8、Codabar、Code 11、EAN-13、Plessey、GS1 Data bar (RSS) 、 Industrial 2 of 5、 Standard 2 of 5、 Logmars 二維條碼 PPLA/PPLB/PPLZ: MaxiCode、 PDF417、 Data Matrix (ECC 200 only) 、 QR code、Composite Codes、Aztec 圖片格式 PPLA: PCX, BMP, IMG, GDI and HEX format files PPLB: PCX , Binary Raster, BMP and GDI PPLZ: GRF, Hex and GDI 指令集 PPLA, PPLB, PPLZ 標籤編輯軟體 BarTender® from Seagull Scientific Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf) 軟體工具 Printer Tool 驅動程式 Argox Seagull Driver (Windows Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver 紙張種類 紙捲式、標籤式(間距紙、連續紙、折疊紙、票券、吊牌...等) 紙張規格 最大寬度:60mm。 最小寬度:12mm。 紙捲外徑(OD):5"(127mm)。 紙捲內徑:1"/1.5"(25.4mm/38mm)。 碳帶規格 N/A 防摔係數 N/A 條碼列印機尺寸 116mm(寬) x 170mm(高) x 215mm(深) 條碼列印機重量 1.05 kgs 電源供應 切換式電源供應器,輸入: 100V~240V±10%, 50~60Hz,輸出: 24VDC, 2.5A 電池 N/A 環境條件 操作環境:41˚F~104˚F (5˚C~40˚C). 相對溼度:0%~90% 儲存環境:-4˚F~140˚F (-20˚C~60˚C). Real Time Clock N/A 標準配件 N/A 選購配件 全切裁紙器、半切裁紙器、剝紙器、Bluetooth v4.2、WLAN、Ethernet / RS232 安規認證 CE, FCC, cTUVus, Energy Star, RoHS, BSMI, RCM, CB, BIS 注意事項 * 立象科技保留增加和修改規格的權利,恕不另行通知。 請聯絡立象科技業務代表以獲取最新規格。 -
-
D2 Series 型錄 EN
D2 Series 型錄 EN V3.2
-
D2 Series 型錄 TW
D2 Series 型錄 TW V3.2
-
-
-
D2 Series 說明書 EN
D2 Series 說明書 EN V1.4
-
D2 Series 說明書 ES
D2 Series 說明書 ES V1.3
-
D2 Series 說明書 PT
D2 Series 說明書 PT V1.3
-
D2 Series 說明書 TR
D2 Series 說明書 TR V1.3
-
D2 Series 說明書 RU
D2 Series 說明書 RU V1.3
-
D2 Series 說明書 DE
D2 Series 說明書 DE V1.3
-
D2 Series 說明書 TW
D2 Series 說明書 TW V1.5
-
D2 Series 快速安裝指南 EN
D2 Series 快速安裝指南 EN
-
Printer Tool 說明書 EN
Printer Tool 說明書 EN V1.0
-
區域網路印表機設定工具快速手冊 EN
區域網路印表機設定工具快速手冊 EN V1.0
-
區域網路印表機設定工具快速手冊 TW
區域網路印表機設定工具快速手冊 TW V1.1
-
iLabelPrint 說明書
iLabelPrint V1.2
iLabelPrint是Argox針對行動列印需求開發的APP,“Android” 或 “iOS” 的智慧型手機、筆記型電腦與平板電腦可透過Blurtooth或LAN,WiFi和USB(僅適用於支援OTG的Android設備)連接Argox印表機使用。
-
-
-
ArgoBar Pro V2.16
標籤編輯軟體
支援 Windows Vista, Windows 7, Windows 8.1, Windows 10 (32-bit or 64-bit) Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (32-bit or 64-bit).
支援語系: 英文, 簡體中文, 繁體中文 Argobar Pro 支援 ODBC 資料庫連接: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf) -
BarTender 2021 R8
標籤編輯軟體
支援 Windows11, Windows 10, Windows Server 2022, Server 2019, Server2016 -
BarTender 2016 R7
標籤編輯軟體
支援Windows11, Windows 10, Windows 8 and 8.1, Windows 7, Windows Vista, Windows Server 2022, Server 2019, Server2016, Server2012 R2, Server2012, Server 2008 R2, Server 2008 -
Printer Tool V1.1.0
印表機設定軟體
-
Font Utility V3.04
Windows XP 及更新版本. 本工具軟體可使用 true type font(TTF) 及印表機內字體.
支援 Windows 10(64bit/32bit), 8.1(64bit/32bit), 8(64bit/32bit), 7, ME, 2000, NT, Vista, XP -
Command Library V4.12
Command Library V4.12 軟體開發工具供專業使用者.
支援 Windows 10(64bit/32bit), Windows 8(64bit/32bit), Windows 7(64bit/32bit), Windows Vista(64bit/32bit), Windows XP(64bit/32bit) -
Argox SDK V1.4.0
SDK 支援 Java、C# 程式語言/Windows/Android/Linux system, PPLB, PPLZ emulation.
-
iLabelPrint V1.03 Google Play
iLabelPrint是Argox針對行動列印需求開發的APP,“Android” 或 “iOS” 的智慧型手機、筆記型電腦與平板電腦可透過Blurtooth或LAN,WiFi和USB(僅適用於支援OTG的Android設備)連接Argox印表機使用。
-
iLabelPrint V1.03 App Store
iLabelPrint是Argox針對行動列印需求開發的APP,“Android” 或 “iOS” 的智慧型手機、筆記型電腦與平板電腦可透過Blurtooth或LAN,WiFi和USB(僅適用於支援OTG的Android設備)連接Argox印表機使用。
-
iLabelPrint V1.03 APK
iLabelPrint是Argox針對行動列印需求開發的APP,“Android” 或 “iOS” 的智慧型手機、筆記型電腦與平板電腦可透過Blurtooth或LAN,WiFi和USB(僅適用於支援OTG的Android設備)連接Argox印表機使用。
-
-
-
Argox Seagull 印表機驅動程式 2023.2_M-1
Windows Vista, Windows 7, Windows 8 and 8.1, and Windows 10. ,Windows 11,Windows Server 2008, 2008 R2, 2012, 2012 R2, and 2016. 32-bit or 64-bit (x64) editions.
所有型號適用 -
Argox Linux 印表機驅動程式 V1.8.0 32-bit
Ubuntu 11.10 ~ 16.04, Fedora 16 ~ 24, openSUSE 11.4 ~ 42.1, Red Hat Enterprise Linux Server 7.2, NeoKylin 6, Red Flag Linux 6, CUPS printing system for Linux (1.5 ~ 2.1.4)
-
Argox Linux 印表機驅動程式 V1.8.0 64-bit
Ubuntu 11.10 ~ 16.04, Fedora 16 ~ 24, openSUSE 11.4 ~ 42.1, Red Hat Enterprise Linux Server 7.2, NeoKylin 6, Red Flag Linux 6, CUPS printing system for Linux (1.5 ~ 2.1.4)
-
Argox macOS 印表機驅動程式 V1.8.0
Argox macOS 印表機驅動程式 V1.7.0 for OS X EI Capitan (Version: 10.11.6) ~ macOS Monterey (Version: 12.2)
-
Argox RPi 印表機驅動程式 V1.8.0 (arm64, for 64-bit OS)
Raspberry Pi OS 64-bit, Ubuntu 64-bit desktop or server OS for arm64 architectures.
-
Argox RPi 印表機驅動程式 V1.8.0 (armhf, for 32-bit OS)
Raspbian Stretch with desktop,Ubuntu MATE for the Raspberry Pi 2 and Raspberry Pi 3
-
-
-
D2 Series 閘刀裁紙器快速安裝指南
D2 Series 閘刀裁紙器快速安裝指南 V1.3
-
D2 Series 剝紙器快速安裝指南
D2 Series 剝紙器快速安裝指南 V1.3
-
D2 Series WLAN 快速安裝指南
D2 Series WLAN 快速安裝指南 V1.3
-
D2 Series 乙太網路快速安裝指南
D2 Series 乙太網路快速安裝指南 V1.3
-
D2 Series RS232 串列埠快速安裝指南
D2 Series RS232 串列埠快速安裝指南 V1.3
-
-
