4吋熱感式桌上型條碼列印機
OS系列是立象科技連續23年的最佳銷售機種。在全世界有超過2百萬的使用者,OS系列以穩定耐用的特性聞名全世界。
1. 加大記憶體容量
OS-214D記憶體容量為前一代 OS-2140D的4倍,有更大的運用空間可儲存字型、圖片、其他資料。
2. 列印速度升級
新的OS-214D在列印速度有大幅度升級,比前一代產品OS-2140D的列印速度提升20%,最大達每秒6吋。

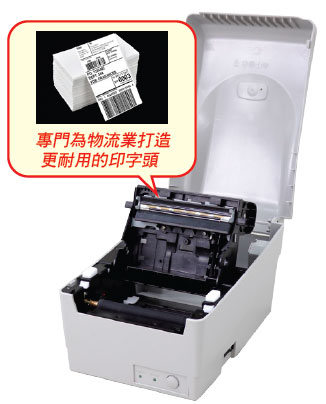

3. 更耐用的印字頭
OS-214D新印字頭保持原有的高穩定性與高品質,耐用度比前一代產品OS-2140D更高。
4. 多樣化連接介面
OS-214D除了保留前一代產品OS-2140D的標配RS-232,USBdevice之外,還新增一個乙太網路和USB host做為更廣泛的連接應用。
OS-214D 應用範圍- 零售業
- 貨運物流業
- 製造業
-
列印方式 熱感式 解析度 203 dpi(8 dots/mm) 最大列印速度 6 ips 最大列印長度 100”(2540mm) 最大列印寬度 4.25”(108mm) 記憶體 32MB DRAM (3.6MB 使用者可用) /16MB Flash ROM (8.4MB 使用者可用) 中央處理器 32 位元RISC 微處理器 感測裝置 紙張反射式感測器 操作介面 LED指示燈x 2,按鍵x 1 通訊介面 Ethernet, USB device, RS-232, USB host 字型 內建標準字型
五種國際標準字型(1.25mm~6mm)
最大可達 24x24
四方向旋轉0° ~ 270°
可由軟體下載Windows True Type字型一維條碼 UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial
2of5, MSI, UPCadd-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked,
GS1 DataBar Stacked Omnidirecional, GS1DataBar Limited, GS1 DataBar Expanded, GS1DataBar Expanded Stacked二維條碼 QR Code, PDF417 (includingMicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode 圖片格式 PPLA: PCX, BMP, IMG, HEX,GDI
PPLB: PCX, BMP, Binary raster, GDI
PPLZ: GRF, Hex, GDI指令集 PPLA, PPLB, PPLZ 標籤編輯軟體 BarTender® from Seagull Scientific, Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)iLabelPrint (Android) 軟體工具 Printer Tool, Font Utility 驅動程式 Argox Seagull Driver (Windows Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver 紙張種類 熱感標籤或熱感紙 紙張規格 最大寬度:4.3”(110mm) 最小寬度:0.8”(20mm) 紙張厚度:0.0025”~0.01” (0.0635mm~0.254mm)
紙捲軸心0.5”(12.7mm)可容紙捲外徑5”(127mm)
紙捲軸心1”(25.4mm)可容紙捲外徑5”(127mm)
紙捲軸心1.5”(38mm)可容紙捲外徑5”(127mm)條碼列印機尺寸 寬 182.5mm x 高 173.5mm x 深 282mm 條碼列印機重量 3.3 lbs (1.51kgs) 電源供應 切換式電源供應器,交流輸入100~240V,50~60Hz 直流輸出 24V, 2.5A 環境條件 操作環境:40˚F~100˚F (4˚C~38˚C). 相對溼度:0%~90%
儲存環境:-4˚F~122˚F (-20˚C~50˚C).選購配件 裁紙器、外掛紙架、標籤回捲器 安規認證 CE, FCC, cULus, CCC, RoHS 注意事項 * 立象科技保留增加和修改規格的權利,恕不另行通知。 請聯絡立象科技業務代表以獲取最新規格。 -
-
OS-214D 型錄 EN
OS-214D 型錄 EN V1.1
-
OS-214D 型錄 TW
OS-214D 型錄 TW V1.1
-
-
-
OS-214D 快速安裝指南
OS-214D 快速安裝指南
-
OS-214D 說明書 EN
OS-214D 說明書 EN V1.1
-
OS-214D 說明書 TW
OS-214D 說明書 TW V1.1
-
-
-
ArgoBar Pro V2.16
標籤編輯軟體
支援 Windows Vista, Windows 7, Windows 8.1, Windows 10 (32-bit or 64-bit) Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (32-bit or 64-bit).
支援語系: 英文, 簡體中文, 繁體中文 Argobar Pro 支援 ODBC 資料庫連接: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf) -
BarTender 2021 R8
標籤編輯軟體
支援 Windows11, Windows 10, Windows Server 2022, Server 2019, Server2016 -
BarTender 2016 R7
標籤編輯軟體
支援Windows11, Windows 10, Windows 8 and 8.1, Windows 7, Windows Vista, Windows Server 2022, Server 2019, Server2016, Server2012 R2, Server2012, Server 2008 R2, Server 2008 -
Printer Tool V1.1.0
印表機設定軟體
-
Font Utility V3.04
Windows XP 及更新版本. 本工具軟體可使用 true type font(TTF) 及印表機內字體.
支援 Windows 10(64bit/32bit), 8.1(64bit/32bit), 8(64bit/32bit), 7, ME, 2000, NT, Vista, XP -
Command Library V4.12
Command Library V4.12 軟體開發工具供專業使用者.
支援 Windows 10(64bit/32bit), Windows 8(64bit/32bit), Windows 7(64bit/32bit), Windows Vista(64bit/32bit), Windows XP(64bit/32bit) -
Argox SDK V1.4.0
SDK 支援 Java、C# 程式語言/Windows/Android/Linux system, PPLB, PPLZ emulation.
-
iLabelPrint V1.03 Google Play
iLabelPrint是Argox針對行動列印需求開發的APP,“Android” 或 “iOS” 的智慧型手機、筆記型電腦與平板電腦可透過Blurtooth或LAN,WiFi和USB(僅適用於支援OTG的Android設備)連接Argox印表機使用。
-
iLabelPrint V1.03 App Store
iLabelPrint是Argox針對行動列印需求開發的APP,“Android” 或 “iOS” 的智慧型手機、筆記型電腦與平板電腦可透過Blurtooth或LAN,WiFi和USB(僅適用於支援OTG的Android設備)連接Argox印表機使用。
-
iLabelPrint V1.03 APK
iLabelPrint是Argox針對行動列印需求開發的APP,“Android” 或 “iOS” 的智慧型手機、筆記型電腦與平板電腦可透過Blurtooth或LAN,WiFi和USB(僅適用於支援OTG的Android設備)連接Argox印表機使用。
-
-
-
Argox Seagull 印表機驅動程式 2023.2_M-1
Windows Vista, Windows 7, Windows 8 and 8.1, and Windows 10. ,Windows 11,Windows Server 2008, 2008 R2, 2012, 2012 R2, and 2016. 32-bit or 64-bit (x64) editions.
所有型號適用 -
Argox Linux 印表機驅動程式 V1.8.0 32-bit
Ubuntu 11.10 ~ 16.04, Fedora 16 ~ 24, openSUSE 11.4 ~ 42.1, Red Hat Enterprise Linux Server 7.2, NeoKylin 6, Red Flag Linux 6, CUPS printing system for Linux (1.5 ~ 2.1.4)
-
Argox Linux 印表機驅動程式 V1.8.0 64-bit
Ubuntu 11.10 ~ 16.04, Fedora 16 ~ 24, openSUSE 11.4 ~ 42.1, Red Hat Enterprise Linux Server 7.2, NeoKylin 6, Red Flag Linux 6, CUPS printing system for Linux (1.5 ~ 2.1.4)
-
Argox macOS 印表機驅動程式 V1.8.0
Argox macOS 印表機驅動程式 V1.7.0 for OS X EI Capitan (Version: 10.11.6) ~ macOS Monterey (Version: 12.2)
-
Argox RPi 印表機驅動程式 V1.8.0 (arm64, for 64-bit OS)
Raspberry Pi OS 64-bit, Ubuntu 64-bit desktop or server OS for arm64 architectures.
-
Argox RPi 印表機驅動程式 V1.8.0 (armhf, for 32-bit OS)
Raspbian Stretch with desktop,Ubuntu MATE for the Raspberry Pi 2 and Raspberry Pi 3
-
-
