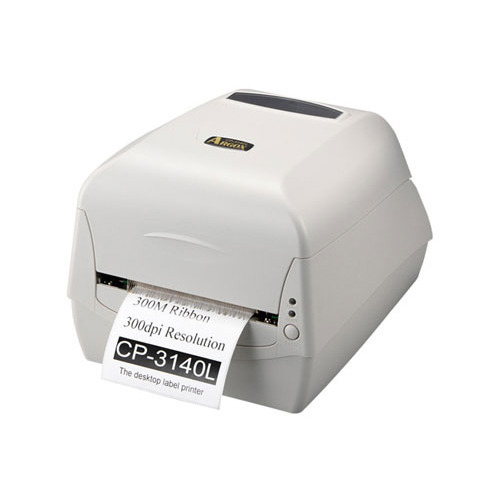

CP-3140L

產品說明
型號列表: CP-3140L

• 外型精巧可放置桌面不佔空間,擁有300米碳帶的大容量。
• 紙捲碳帶安裝簡易,可選擇內碳帶/外碳帶。
• 標準通訊介面:並列埠、RS-232、USB。
• 感測器模組滿足多種列印應用,四種紙張自動校對功能提升列印效率。
• 每秒列印速度4ips,列印低噪音,模組化設計易於維護。
• CP-3140L內建8MB快閃記憶體與8MB SDRAM,可下載所需的Windows True Type中文字型。
• 支援1D/GS1 Data bar、2D/Composite code、QR Code。
標籤 :
  • 條碼印表機-碳帶長度:300公尺
  • 條碼印表機-列印寬度:4吋
  • CP-3140L 提供300dpi高解析度列印,支援細小的文字與圖形印製,例如水洗標、珠寶標,或醫療業應用如病患識別手環等。CP-3140L內建加大的記憶體8MB快閃記憶體與8MB SDRAM,可儲存更多字型檔、圖檔以及標籤的格式,提升使用效率與便利性。

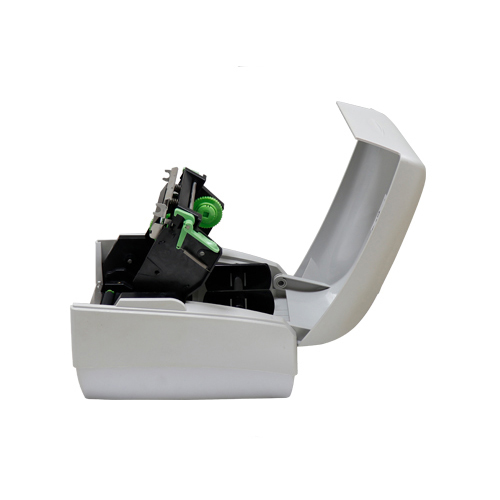

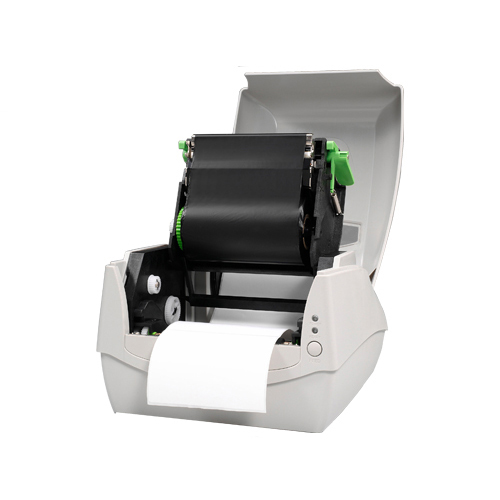

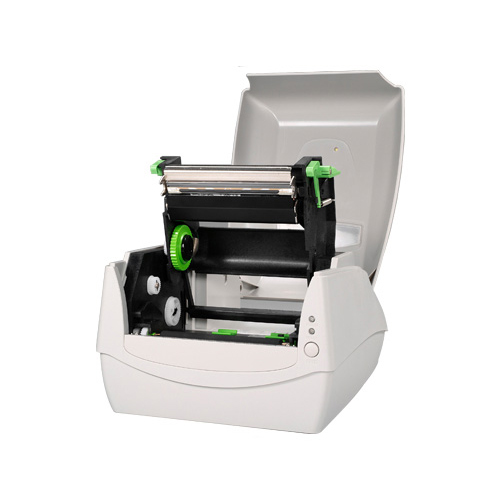

    CP-3140L可安裝300米的碳帶,減少因碳帶用盡造成的列印中斷,此外CP-3140L貼心的設計讓更換紙捲、碳帶的步驟簡易且方便操作,可依需求選擇內碳帶或外碳帶,並可視需求彈性應用四種紙張校正模式提高印製效率。

    CP-3140L的通訊介面包括並列埠、串列埠及USB,列印速度可達4ips,最大列印長度為50吋(127公分),支援一維條碼、二維條碼、GS1 Databar、QR code等條碼格式的列印,也可下載Windows True Type字型。CP-3140L輕巧不占空間、尤其能滿足多樣化的文字與圖檔列印需求,傑出性能是您最佳選擇。
  •   列印方式 熱感式 & 熱轉式
      解析度 300 dpi (12 dots/mm)
      最大列印速度 4 ips
      最大列印長度 50 "(1270mm)
      最大列印寬度 4.1”(104mm)
      記憶體 8MB DRAM, 8MB Flash ROM
      中央處理器 32 位元RISC 微處理器
      感測裝置 紙張反射式感測器x 1(可調整) & 紙張穿透式感測器x 1(固定式)
      操作介面 LED指示燈x 2 ,按鍵x 1

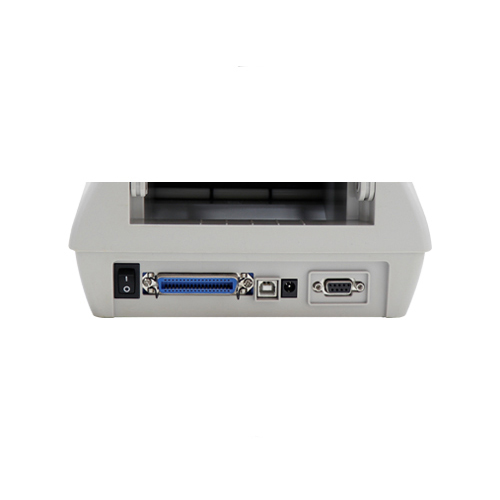

      通訊介面 USB device, RS-232, Parallel
      字型 5種國際標準字型(1.25mm~ 6mm),最大可達 24x24,四方向旋轉0°~270°,可由軟體下載Windows True Type 字型
      無線網絡安全 N/A
      一維條碼 PPLA: Code 39、UPC-A、UPC-E、Code 128 subset A/B/C、EAN-13、EAN-8、HBIC、Codabar、Plessey、UPC2、UPC5、Code 93、Postnet、UCC/EAN-128、,UCC/EAN-128 K-MART、UCC/EAN-128 Random weight、Telepen、FIM、Interleaved 2 of 5 (Standard/with modulo 10 checksum/ with human readable check digit/ with modulo 10 checksum & shipping bearer bars) 、GS1 Data bar (RSS) PPLB: Code 39、UPC-A、UPC-E、Matrix 2 of 5、UPC-Interleaved 2 of 5、Code 39 with check sum digit 、Code 93、EAN-13、EAN-8 (Standard, 2 /5digit add-on) 、Codabar、Postnet、Code128 subset A/B/C、Code 128 UCC (shipping container code) 、Code 128 auto、UCC/EAN code 128 (GS1-128) 、65 Compact Printer Series - User’s Manual Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、German Postcode、Matrix 2 of 5、UPC Interleaved 2 of 5、EAN-13 2/5 digit add-on、UPCA 2/5 digit add-on、UPCE 2/5 digit add-on、GS1 Data bar (RSS)
      二維條碼 PPLA/PPLB: MaxiCode、PDF417、Data Matrix (ECC 200 only) 、QR code、Composite Codes
      圖片格式 PPLA: PCX, BMP, IMG, GDI and HEX format files PPLB: PCX , Binary Raster, BMP and GDI
      指令集 PPLA, PPLB
      標籤編輯軟體 BarTender® from Seagull Scientific Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
      軟體工具 Printer Utility, Font Utility
      驅動程式 Argox Seagull Driver (Windows XP/Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver
      紙張種類 紙捲式、標籤式(間距紙、連續紙、折疊紙、票券、吊牌...等)
      紙張規格 最大寬度: 4.33"(110mm)。 最小寬度: 1"(25.4mm)。 厚度: 0.0025"〜0.01"(0.0635mm〜0.254mm) 紙捲軸心1”(25.4mm)可容紙捲外徑5”(127mm) 紙捲軸心0.5”(12.7mm)可容紙捲外徑4.5”(114.3mm) 紙捲軸心1.5”(38.1mm)可容紙捲外徑4.7”(120mm)
      碳帶規格 最大外徑:2.6"(67mm)。 最大長度:300m。 軸心內徑:1"(25.4mm)。 寬度:1"~4.33"(25.4mm~110mm)。 適用種類:蠟質、半蠟半樹脂、全樹脂(內捲式和外捲式碳帶皆適用)。
      防摔係數 N/A
      條碼印表機尺寸 225mm(寬) x 186mm(高) x 273mm(深)
      條碼列印機重量 2.1 kgs
      電源供應 切換式電源供應器,輸入: 100V~240V±10%, 1.5A, 47~63Hz,輸出: 24VDC, 2.4A
      電池 N/A
      環境條件 操作環境:4°C~38°C(相對溼度0% ~ 90%) 儲存環境:-20°C~50°C
      Real Time Clock N/A
      標準配件 N/A
      選購配件 裁紙器、RTC卡、紙捲架
      安規認證 CE, FCC, CCC, RoHS, BSMI
      注意事項 * 立象科技保留增加和修改規格的權利,恕不另行通知。 請聯絡立象科技業務代表以獲取最新規格。
    • ArgoBar Pro V2.16

      標籤編輯軟體​
      支援 Windows Vista, Windows 7, Windows 8.1, Windows 10 (32-bit or 64-bit) Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (32-bit or 64-bit).
      ​支援語系: 英文, 簡體中文, 繁體中文 Argobar Pro 支援 ODBC 資料庫連接: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)

    • BarTender 2022 R6

      標籤編輯軟體
      支援 Windows11, Windows 10, Windows Server 2022, Server 2019, Server2016

    • BarTender 2016 R7

      標籤編輯軟體
      支援Windows11, Windows 10, Windows 8 and 8.1, Windows 7, Windows Vista, Windows Server 2022, Server 2019, Server2016, Server2012 R2, Server2012, Server 2008 R2, Server 2008

    • BarTender UL 10.1

      標籤編輯軟體
      支援Windows XP

    • Font Utility V3.04

      Windows XP 及更新版本. 本工具軟體可使用 true type font(TTF) 及印表機內字體.
      支援 Windows 10(64bit/32bit), 8.1(64bit/32bit), 8(64bit/32bit), 7, ME, 2000, NT, Vista, XP

    • Printer Utility V4.37

      供印表機額外設定使用.
      支援 Windows 10(64bit/32bit), 8.1(64bit/32bit), 8(64bit/32bit), 7, ME, NT, Vista, XP

    • Command Library V4.12

      Command Library V4.12 軟體開發工具供專業使用者.
      支援 Windows 10(64bit/32bit), Windows 8(64bit/32bit), Windows 7(64bit/32bit), Windows Vista(64bit/32bit), Windows XP(64bit/32bit)

    • Argox SDK V1.4.0

      SDK 支援 Java、C# 程式語言/Windows/Android/Linux system, PPLB, PPLZ emulation.
