product description
• For commercial and light industry applications.
• 300dpi high resolution model available.
• 32-bit CPU, up to 4ips print speed, and no ribbon wrinkle with centralized thermal print head for superior print performance.
• Ultra-precise printing module for print jobs such as thick tags, fabric labels, and tough label printing.
• Movable reflective sensor
• Industrial-strength media management: Max 360m ribbon wax & 6” media compartment.
• Easy media loading & ribbon installation.
• Reinforced fiber-plastic metal-strength construction and printing module, and optimum footprint and lightweight for easy placement.
• PPLA, PPLB emulations available.
• Full range of options :Cutter, Peeler, Stacker, Font card, RTC and standalone keyboard (Argokee)
• Printer Server external for Wireless options.

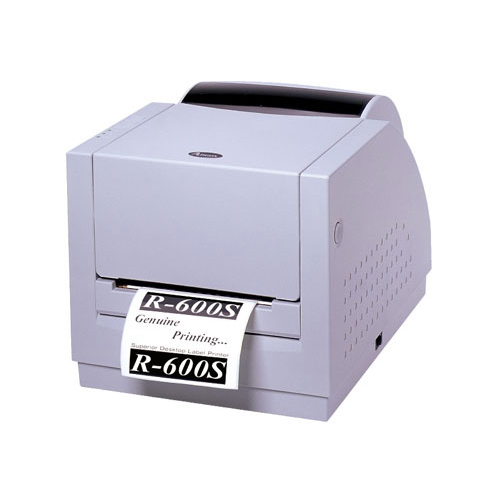

  • The R-600S inherits the Refine Series' mechanism. Loading capacity accommodates a maximum 360m ribbon roll and 6" OD media supply. Adjustable media guide with centralized alignment fits all variable media from 10mm to 110mm. Easy access via a three-button control panel saves time and requires minimal training allowing the benefits of easy and fast handling. Built-in universal switch power offers 100% flexibility to fit in any local application environment, and it is lightweight, space-saving, and easy to handle. The R-600S maintains high quality printing with 300dpi resolution making it the value-added printer of choice for textile and care labeling applications.
  •   Printing Method Direct Thermal & Thermal Transfer
      Printing Resolution 300 dpi(12 dots/mm)
      Printing Speed Max. 4 ips
      Printing Length Max. 43”(1092mm)
      Printing Width Max. 30” (762mm)
      Memory 2MB DRAM, 1MB Flash ROM
      CPU Type 32 bit RISC microprocessor
      Sensors Reflective sensor x 1 (Movable)
      Operation Interface LED Indicator x 3, Button x 3
      Communication Interface Centronics Parallel, RS-232
      Fonts Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24x24 4 direction 0 ~ 270 rotation. Soft fonts are downloadable. Ability to print any Windows True Type font easily.
      Wireless Security N/A
      1D Barcodes PPLA: Code39, Code 93, Code 128/subset A,B and C, Codabar, Interleave2 of 5, UPC A/E/2 and 5 add-on, EAN 13/8, UCC/EAN-128, Random Weight, Postnet, Plessey, HIBC, Telepen, FIM PPLB:Code39, Code 93, Code 128/subset A,B and C, Codabar, Interleave2 of 5, UPC A/E/2 and 5 add-on, EAN 13/8, UCC/EAN-128, Postnet, Matrix 2 of 5, Code-128UCC PPLC:Code11,Interleave2 of 5,Code39, Code 93,EAN 13/8,UPCA/E, Code 128/subset A,B and C, Interleave2 of 5, Standard 2 of 5, Codabar, UPC/EAN Extensions, MSI, Plessey, PostNet
      2D Barcodes PPLA: PDF-417, Maxicode, Data Matrix (ECC200 only) PPLB:PDF-417, Maxicode PPLC:PDF-417, Maxicode, Data Matrix (ECC200 only), QR Code
      Graphics PPLA: PCX, BMP, IMG, HEX formates PPLB: PCX and binary raster PPLC:GRF, HEX and GDI
      Emulation PPLA, PPLB,PPLZ
      Software-label Editing Windows Driver (Windows XP/Vista/Win7/Win8/Win10), BarTender® from Seagull Scientific
      Software-utility Printer Utility, Font Utility
      Media Type Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper and fabric label
      Media Max. Width: 4.6”(118mm) Min. Width:1”(25.4mm) Thickness: 0.0025”~0.01”(0.0635~0.254mm) Max. roll capacity(OD): 6”(152mm) Core size: 1”(25.4mm)
      Ribbon Ribbon Width: 1”~4”(25.4mm~110mm) Ribbon roll – Max. OD: 2.67”(68mm) Ribbon Length: Max. 360m Core size – ID: 1”(25.4mm)
      Drop Resistance N/A
      Printer Dimensions W 314mm x H 231mm x D 218mm
      Printer Weight 4.2 kg
      Power Source Universal Switching Power Supply Input: 100V~240V±10%, 50~60Hz, Output: 24VDC, 2.5A
      Battery N/A
      Operation Environment Operation Temperature: 40°F~100°F (4°C~38°C), 0% ~ 90% non-condensing, Storage Temperature: -4°F~122°F (-20°C~50°C)
      Real Time Clock N/A
      Standard Item N/A
      Optional Items Guillotine Cutter, Dispenser, Stacker, RTC Card, 4MB Asian Font Card(Traditional Chinese, Simplified Chinese, Korean and Japanese)
      Agency Listing CE, FCC, cTUVus, RoHS
      Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
