CP-2140

product description
.Compact size and 300M ribbon capacity
.Easy media and ribbon loading.
.Multiple communication interfaces.
.A variety of paper sensor system for diverse applications.
.Ribbon wound ink-side out or ink-side in available.
.Printing speed 5 ips. standard memory of 4MB FLASH and 8MB SDRAM.
Tags :
  • Printer-Printing-width-4"
  • Printer-Ribbon-length-300m
  • The compact CP-2140 desktop printer not only saves space, it lets you install a large 300M long ribbon for bigger printing demands. Ribbons and media are easy to load, and you can select for ribbon ink-side in or ink-side out. A media sensor system delivers greater flexibility for diverse media and applications. A head-open switch initiates auto-calibration for more precise printing. Multiple communication interfaces include parallel, RS-232, and USB.

    The CP-2140 prints at 203dpi resolution and a speed of 5ips. Standard memory includes 4MB Flash and 8MB SDRAM. The printer has a modular design for easy maintenance, and printing noise is minimal. It supports the Windows 7 OS, 1D/GS1 Data bar, 2D/Composite codes, QR barcodes, and Windows TrueType fonts.

    With the CP-2140 you get the convenience of a small size printer with the functions of a large printer and at a more competitive cost. It’s the perfect printer for applications such as clothing tags, self-labeling, mailing, retail, shipping & receiving, inventory and patient tracking. The new CP-2140 printers continues Argox’s leading position in innovation, price, and performance.
  •  Light Source RED LED 620nm~630nm
     Image Sensor 2500 point pixel CCD image sensors
     Depth of Field 25~100mm (Code39 , 4mil, PCS90%) 15~330mm (EAN, 13mil, PCS90%)
     Resolution 3mil (0.0762mm)
     Print Contrast Ratio (minimum) 20%
     Decode Capability UPC-A, UPC-E, EAN-13, EAN-8, Codabar, Code 39 Full ASCII, China Post, Plessey, MSI, Code 93, Code 128, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, Code 11, ISBN, ISSN, Code32(Italian pharmcode), Code39 extended, GS1-128 and ITF-14, SISAS, GS1 Ominidirectional, GS1 Limited, Aviation25, RSS14.
     Wireless Communications N/A
     Communication Interface USB-HID, USB-Virtual COM
     Scan Indicators LED, Beeper
     Scanner Dimensions 102mm x 71mm x 177mm
     Cradle Dimensions N/A
     Input Voltage DC5V±1%
     Operating Temperature -20°C to 50°C
     Storage -40°C to 70°C
     Humidity 5% to 95%(Non-condensing)
     Ambient Light 70,000 Lux
     Battery N/A
     Drop Resistance Withstands multiple times 1.5meters drops to concrete
     Programming Method N/A
     Operation Mode Trigger mode/Continuous scanning/Auto flashing/Auto sensing mode
     Sealing IP42
     Program Upgrade N/A
     Cable Length 2m
     Scanner Stand Standard
     Power Supply N/A
     Agency Listing CE, FCC, BSMI
     Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
      Printing Method Direct Thermal & Thermal Transfer
      Printing Resolution 203 dpi(8 dots/mm)
      Printing Speed Max. 5 ips
      Printing Length Max. 100”(2540mm)
      Printing Width Max. 4.1”(104mm)
      Memory 8MB DRAM, 4MB Flash ROM
      CPU Type 32 bit RISC microprocessor
      Sensors Reflective sensor x 1 (Movable) & Transmissive sensor x 1(Center fixed)
      Operation Interface LED Indicator x 2, Button(Feed) x 1

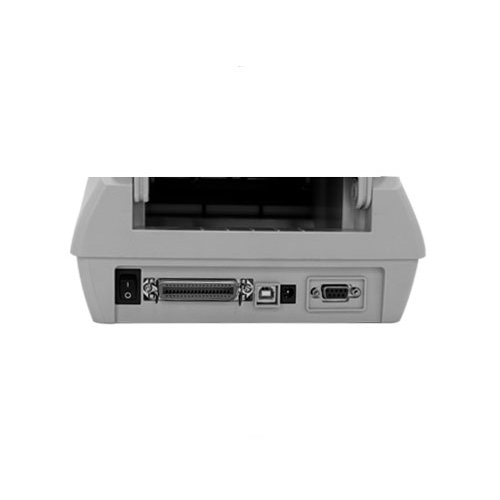

      Communication Interface USB device, RS-232, Parallel
      Fonts Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24x24 4 direction 0° ~ 270° rotation Soft fonts are downloadable
      Wireless Security N/A
      1D Barcodes PPLA: Code 39、UPC-A、UPC-E、Code 128 subset A/B/C、EAN-13、EAN-8、HBIC、Codabar、Plessey、UPC2、UPC5、Code 93、Postnet、UCC/EAN-128、,UCC/EAN-128 K-MART、UCC/EAN-128 Random weight、Telepen、FIM、Interleaved 2 of 5 (Standard/with modulo 10 checksum/ with human readable check digit/ with modulo 10 checksum & shipping bearer bars) 、GS1 Data bar (RSS) PPLB: Code 39、UPC-A、UPC-E、Matrix 2 of 5、UPC-Interleaved 2 of 5、Code 39 with check sum digit 、Code 93、EAN-13、EAN-8 (Standard, 2 /5digit add-on) 、Codabar、Postnet、Code128 subset A/B/C、Code 128 UCC (shipping container code) 、Code 128 auto、UCC/EAN code 128 (GS1-128) 、65 Compact Printer Series - User’s Manual Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、German Postcode、Matrix 2 of 5、UPC Interleaved 2 of 5、EAN-13 2/5 digit add-on、UPCA 2/5 digit add-on、UPCE 2/5 digit add-on、GS1 Data bar (RSS)
      2D Barcodes PPLA/PPLB: MaxiCode、PDF417、Data Matrix (ECC 200 only) 、QR code、Composite Codes
      Graphics PPLA: PCX, BMP, IMG, GDI and HEX format files PPLB: PCX , Binary Raster, BMP and GDI
      Emulation PPLA, PPLB
      Software-label Editing BarTender® from Seagull Scientific Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
      Software-utility Printer Utility, Font Utility
      Driver tools Argox Seagull Driver (Windows XP/Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver
      Media Type Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper and fabric label
      Media Max. width 4.3”(110mm) Min. width 1” (25.4 mm) Thickness 0.0025”~0.01” (0.0635mm ~0.254mm) Max. roll capacity (OD): 5"(127 mm) Core size 1”(25.4mm) Max. roll capacity (OD): 4.5"(114.3 mm) Core size 0.5”(12.7mm) Max. roll capacity (OD): 4.7"(120 mm) Core size 1.5”(38.1mm)
      Ribbon Ribbon roll – Max. OD: 2.6”(67mm) Ribbon Length: Max. 300m Core size – ID: 1”(2.54mm) Ribbon Width:1"~4.33"(25.4mm~110mm) Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect)
      Drop Resistance N/A
      Printer Dimensions W 225mm x H 186mm x D 273mm
      Printer Weight 2.1 kgs
      Power Source Universal Switching Power Supply AC Input: 100V~240V, 1.8A, 50~60Hz, DC Output: 24V 2.4A
      Battery N/A
      Operation Environment Operation Temperature: 40°F~100°F (4°C~38°C), 0% ~ 90% non-condensing Storage Temperature: -4°F~122°F (-20°C~50°C)
      Real Time Clock N/A
      Standard Item N/A
      Optional Items Guillotine-Full Cutter / Partial Cutter, Rotary Cutter, RTC card, External media stand
      Agency Listing CE, FCC, CCC, RoHS, BSMI
      Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
    • ArgoBar Pro V2.13

      Windows Vista, Windows 7, Windows 8.1, Windows 10 (32-bit or 64-bit) Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (32-bit or 64-bit). ​Support languages: English, Simplified Chinese, Traditional Chinese Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)

    • BarTender 2016 R7

      Windows11, Windows 10, Windows 8 and 8.1, Windows 7, Windows Vista, Windows Server 2022, Server 2019, Server2016, Server2012 R2, Server2012, Server 2008 R2, Server 2008

    • Font Utility V3.04

      Windows XP and higher. This utility enables to true type font(TTF) and load the fonts into printers. Support: Windows 10(64bit/32bit), 8.1(64bit/32bit), 8(64bit/32bit), 7, ME, 2000, NT, Vista, XP

    • Printer Utility V4.37

      For additional printer settings. Support: Windows 10(64bit/32bit), 8.1(64bit/32bit), 8(64bit/32bit), 7, ME, NT, Vista, XP

    • Command Library V4.12

      Command Library V4.12 software developing tool for professional users. Support: Windows 10(64bit/32bit), Windows 8(64bit/32bit), Windows 7(64bit/32bit), Windows Vista(64bit/32bit), Windows XP(64bit/32bit)

    • Argox SDK V1.4.0

      SDK supports Java、C#/Windows/Android/Linux system, PPLB, PPLZ emulation.
