AS-8060

product description
• 2500 pixels CCD image sensor
• Scan Speed >= 270 times/sec
• Max. reading resolution: 3mil (0.0762mm)
• Depth of Field: 15~330mm (EAN, 13mil/0.33mm, PCS 90%)
• Drop resistance: 1.5 meters onto the concrete
• Auto-sensing (presentation) mode available
Tags :
  • Scanner-3mil
Compare Inquire
  • AS-8060-01

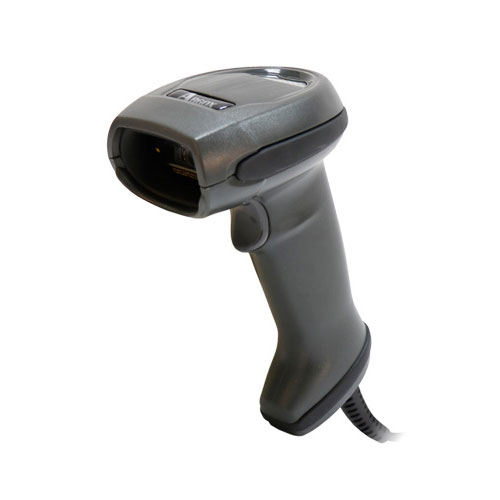

    AS-8060, high C/P value 1D CCD scanner fulfill customers’ demands

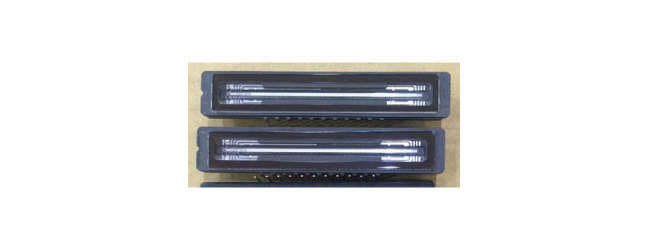

    1. 2500 pixels CCD image sensor
    as-8060-03
    2. Scan Speed >= 270 times/sec
    as-8060-04
    3. Max. reading resolution: 3mil (0.0762mm)
    as-8060-05

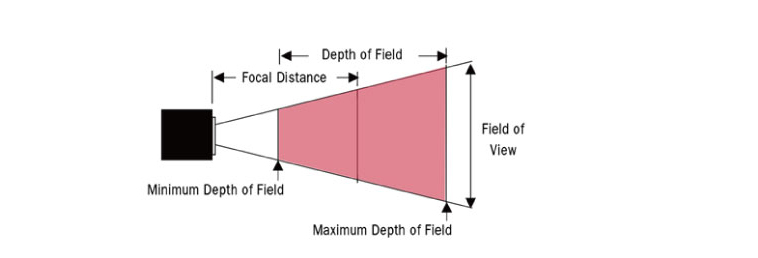

    4. Depth of Field: 15~330mm (EAN, 13mil/0.33mm, PCS 90%)
    as-8060-06
    5. Drop resistance: 1.5 meters onto the concrete
    as-8060-07

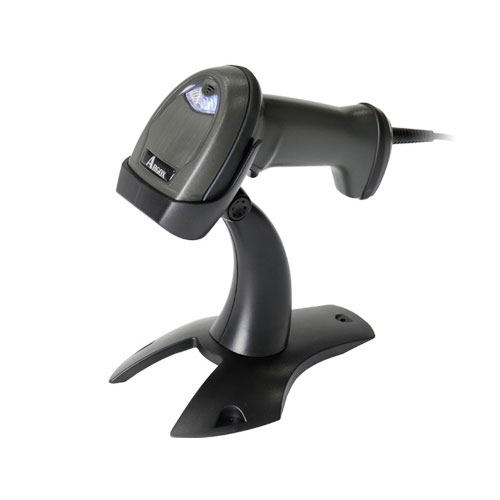

    6. Auto-sensing (presentation) mode available
    as-8060-08
    Application
    • Jewelry Tag
    • Manufacturing
    • Transportation & Logistics
    • Healthcare
    as-8060-09

  •  Light Source RED LED 620nm~630nm
     Image Sensor 2500 point pixel CCD image sensors
     Depth of Field 25~100mm (Code39 , 4mil, PCS90%) 15~330mm (EAN, 13mil, PCS90%)
     Resolution 3mil (0.0762mm)
     Print Contrast Ratio (minimum) 20%
     Decode Capability UPC-A, UPC-E, EAN-13, EAN-8, Codabar, Code 39 Full ASCII, China Post, Plessey, MSI, Code 93, Code 128, Industrial 2 of 5, Interleave 2 of 5, Matrix 2 of 5, Code 11, ISBN, ISSN, Code32(Italian pharmcode), Code39 extended, GS1-128 and ITF-14, SISAS, GS1 Ominidirectional, GS1 Limited, Aviation25, RSS14.
     Wireless Communications N/A
     Communication Interface USB-HID, USB-Virtual COM
     Scan Indicators LED, Beeper
     Scanner Dimensions 102mm x 71mm x 177mm
     Cradle Dimensions N/A
     Input Voltage DC5V±1%
     Operating Temperature -20°C to 50°C
     Storage -40°C to 70°C
     Humidity 5% to 95%(Non-condensing)
     Ambient Light 70,000 Lux
     Battery N/A
     Drop Resistance Withstands multiple times 1.5meters drops to concrete
     Programming Method N/A
     Operation Mode Trigger mode/Continuous scanning/Auto flashing/Auto sensing mode
     Sealing IP42
     Program Upgrade N/A
     Cable Length 2m
     Scanner Stand Standard
     Power Supply N/A
     Agency Listing CE, FCC, BSMI
     Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
