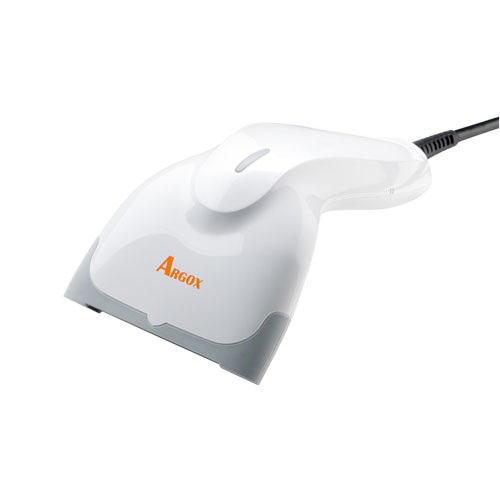

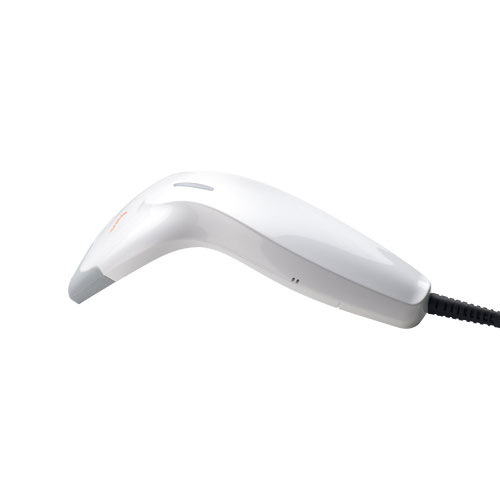

AR-3000
product description
• Optimal for retail market application.
• New Powerful CPU scanner (ARM-base).
• A 2500 pixel CCD scanner with more cost-effctive.
• Fully support all popular 1D barcode readability.
• High resolution barcode readability (up to 3mil).
• Multiple interfaces for variety application(USB HID/ USB COM, RS-232).
• High speed scanning rate (300 scan/sec) providing superior reading performance.
• New Powerful CPU scanner (ARM-base).
• A 2500 pixel CCD scanner with more cost-effctive.
• Fully support all popular 1D barcode readability.
• High resolution barcode readability (up to 3mil).
• Multiple interfaces for variety application(USB HID/ USB COM, RS-232).
• High speed scanning rate (300 scan/sec) providing superior reading performance.
-
The new AR-3000 handheld barcode scanner excels at retail and office applications. Providing fast and accurate capture at 300 scans per second for rapid and efficient readings, the AR-3000 easily scans even the smallest barcodes at 3-mil resolution, up to 30% print contrast, and barcode width of 55mm. The AR-3000 is lightweight at only 85g and its ergonomic design and comfortable grip form factor makes scanning quick and easy. With no moving parts and drop tested at 1.5M, the AR-3000 is durable and well-suited for commercial applications. The AR-3000 is a general purpose reader that reads all common 1D barcode symbologies and supports GS1 DataBar Barcode, EAN8, EAN13, and Code 128. Interfaces supported include USB, HID, and RS-232. Retail applications for the AR-3000 include convenience stores, supermarkets, grocery stores, mass merchandisers, hypermarkets, specialty stores, and department stores. Office applications are also a good stage for the AR-3000 to perform as it provides a helping hand for tasks such as document-tracking, and asset and library management. The AR-3000 is sleek and attractive for use on any counter or desk. The AR-3000 comes bundled with the DataMagic scan utility that is a powerful data formatting wizard for automating barcode scanning applications with data re-organization demands. Delivering outstanding performance, the AR-3000 handheld barcode scanner is perfect for the most demanding commercial applications
-
Light Source 623nm visible red LED Image Sensor 2500 pixel CCD Depth of Field Code 39 3mil 0-10mm, Code 39 4mil 0-18mm, Code 39 5mil 0-26mm, Code 39 10mil 0-52mm, Code 39 13mil 0-58mm, Code 39 20mil 0-85mm, EAN 13mil 0-53mm, Resolution 3mil (Code 39) Print Contrast Ratio (minimum) 30% Decode Capability Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, Industrial 2/5, Interleved 2/5, Italian Pharmacode ( code 32), Matrix 2/5, Standard 2 of 5, Telepen, UK plessey, UPCA, UPCE, China Post, PDF-417, RSS 14 (GS1 databar-14), RSS Expanded (GS1 DataBar Expanded), RSS Limited ( GS1 DataBar Limited) Wireless Communications N/A Communication Interface USB, RS-232 ( Factory default ) Scan Indicators LED, Beeper Scanner Dimensions 127mm x 76mm x 128mm Cradle Dimensions N/A Input Voltage 5V+/- 5% Operating Temperature 0℃ to 50℃ / 32℉ to 122℉ Storage -20℃ to 60℃ ( -4℉ to 140℉) Humidity 10% to 90% relative humidity, non-condensing Ambient Light Up to 20,000 Lux Battery N/A Drop Resistance 1.5m Programming Method User Manual setting barcode , Windows ScanUtility configuration program Operation Mode Trigger mode, Auto sensing mode Sealing N/A Program Upgrade N/A Cable Length 2.2m Scanner Stand N/A Power Supply Optional Agency Listing CE, FCC, ROHS, BSMI Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications. -
-
AR-3000 Brochure EN
AR-3000 Brochure EN
-
-
-
AR-3000 User Manual EN
AR-3000 User Manual EN V1.1.1
-
AR-3000 Data Magic Manual
AR-3000 Data Magic Manual
-
AR-3000 Scan Utility Manual
AR-3000 Scan Utility Manual
-
-
-
ComWedge V2.00
Transfer RS-232 signals to be visible in MS software to WindowsXP, 2000, Vista, Win10
-
Scan Utility V225
Scan Utility v225 software
-
-
-
Virtual COM Driver for Win7 2000 XP Vista
Virtual COM Driver for Win7 2000 XP Vista (32 bit & 64 bit)
-
Virtual COM Driver for Win10
Virtual COM Driver for Win10 only
-
Argoxopos for Win7 Win8 2000 XP Vista 32bit
Argoxopos for Win7 Win8 2000 XP Vista (32 bit)
-
Argoxopos for Win10
Argoxopos for Win10
-
