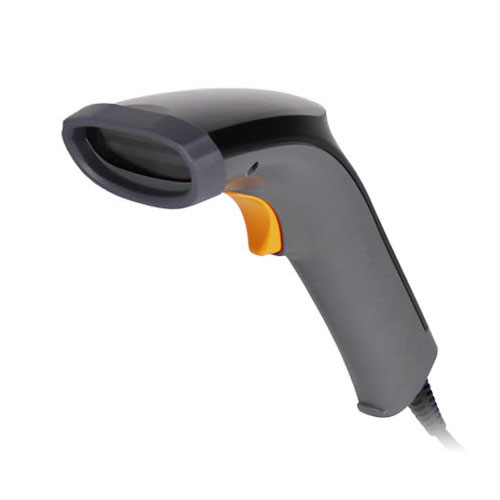

AR-3200

product description
• Feature-rich to make daily work simple and easy
• Compact & simple to operate
• Support HD 3mil
• Supports DataMagic function
• Wide DoF Coverage
• LCD screen readable
• Vibration function
Tags :
  • Scanner-3mil
Compare Inquire
  • • Compact & simple to operate
    Lightweight form factor will reduce worker fatigue.
    • Support HD 3mil
    Users can capture the high density barcodes common on small retail items such as jewelry labels.
    • Supports DataMagic function
    Scanned data output can be customized.
    • Wide DoF Coverage
    Covers from contact to standard scan range, one scanner that does the job of two.
    • LCD screen readable
    Supports all types of electronic LCD screen, such as mobile phone, tablet.
    • Vibration function
    With vibration mode, users can instantly confirm a successful scan even in a noisy environment.
  •  Light Source 630 nm Red LED
     Image Sensor 2500 Pixel CCD
     Depth of Field Code39 3mil: 16mm~84mm. Code39 4mil: 14mm~124mm. Code39 5mil: 10mm~161mm. Code39 20mil: 17mm~780mm. EAN 13mil: 13mm~535mm
     Resolution 3mil (Code 39)
     Print Contrast Ratio (minimum) >30%
     Decode Capability Linear: Code11,Code39,Code93,Code32(Pharmaceutical), Code128,Code bar, Interleaved 2of 5, Industrial 2 of 5,IATA 2 of 5, Matrix 2of5,EAN/JAN-13,EAN/JAN-8,UPC-A, UPC-E,UPC-A/EAN-13 with Extended Coupon code, Telepen, Plessey Code, GS1 Databar RSS14, GS1 Databar Limited,GS1 Databar, Omni directional, GS1 Databar Expanded , China Post Stacked Linear: GS1 Databar Expanded Stacked, GS1 Databar RSS14 Stacked, C16K, CodaBlockF
     Wireless Communications N/A
     Communication Interface USB(HID/Virtual COM), RS-232
     Scan Indicators LED, Beeper and Vibrator
     Scanner Dimensions 66mm x 143mm x 160mm
     Cradle Dimensions N/A
     Input Voltage 5V+/- 5%
     Operating Temperature -20°C to 60°C (14°F to 140°F)
     Storage -30°C to 70°C (-22°F to 158°F)
     Humidity 5% to 95% relative humidity, non-condensing
     Ambient Light Up to 80,000 Lux
     Battery N/A
     Drop Resistance 1.8m
     Programming Method User Manual setting barcode , Windows ScanUtility configuration program
     Operation Mode Trigger mode, Auto sensing mode
     Sealing N/A
     Program Upgrade Enabled by build-in flash memory
     Cable Length 2.0m
     Scanner Stand Optional
     Power Supply Optional
     Agency Listing CE, FCC, ROHS, BSMI, BIS
     Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
