AS-8020CL

product description

• Light Weight, Ergonomic Design.
• General Purpose reader – a single device covering the broadest range of application.
• Durable – without any moving parts to wear out.
• Operate with a 100-meter data transmission range.
• Excellent Scanning Performance starting at 0.1mm (4 mil).
• Readable Under Sun Light.
• Support GS1 databar (RSS); CS ( Composite Symbology) barcodes.
• Support Data Collection Mode for batch scanning (1KB).
• Reliability
(1) Trigger: 1,000,000 times.
(2) Cable: 320,000 times (90°).
(3) Drop: 1.5 meter.

Compare Inquire

Information
General Specifications
User Manual

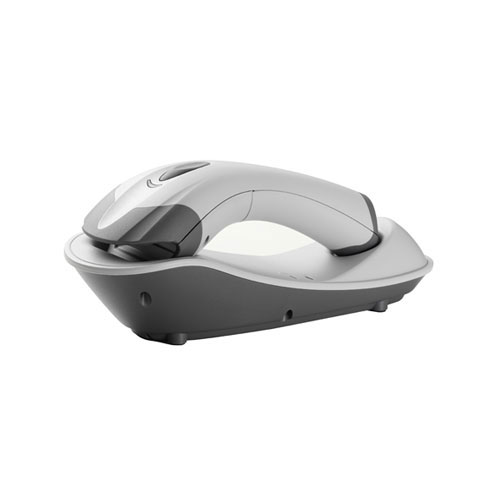

The new AS-8020CL Cordless Scanner is the wireless version of our popular AS-8000 Scanner. It offers the same advantages in speed, depth-of-field, reliability, sleek styling, and ease-of-use, but now there is wireless capability to give operators greater mobility for scanning those tough to reach barcodes.
The AS-8020CL cordless scanner is perfect for retail applications. It is easy to operate, light-weight and comfortable to use. This scanner reads all common barcode symbologies from contact up to a distance of 270mm. The rubber housing allows contact scanning for faster scans. An outstanding cordless scanner for retail applications, the AS-8020CL provides unbeatable performance in a cost-effective package

Light Source	630nm Visible Red LED
Image Sensor	2048 pixel CCD
Depth of Field	Code 39 4mil 5-50mm, Code 39 5mil 0~60mm, Code 39 10mil 0-130mm, Code 39 13mil ~180mm, Code 39 20mil ~270mm, EAN 13mil 0-165mm
Resolution	4mil (Code 39)
Print Contrast Ratio (minimum)	30%
Decode Capability	Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, Industrial 2/5, Interleved 2/5, Italian Pharmacode ( code 32), Matrix 2/5, MSI plessey, Standard 2 of 5, Telepen, UK plessey, UPCA, UPCE, China Post, Code-16K, PDF-417, RSS 14 (GS1 databar-14), RSS Expanded (GS1 DataBar Expanded), RSS Limited ( GS1 DataBar Limited), MicroPDF417
Wireless Communications	BT class1 Version 2.1+EDR 100 meters range
Communication Interface	USB, RS-232
Scan Indicators	LED, Beeper
Scanner Dimensions	95mm x 87mm x 130mm
Cradle Dimensions	234mm x 55mm x 94mm
Input Voltage	5V+/- 5%
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage	-20°C to 70°C (-4°F to 158°F) (battery not included for 8000CL)
Humidity	10% to 90% relative humidity, non-condensing
Ambient Light	Up to 45000 lux
Battery	Rechargeable 3.7 V 1000mAh, li-ion Battery
Drop Resistance	Scanner 1.8m Cradle 0.9m
Programming Method	User Manual setting barcode , Windows ScanUtility configuration program
Operation Mode	Handcuff mode, Data collection mode, Deep sleep mode, Auto sensing mode
Sealing	IP42
Program Upgrade	Enabled by build-in flash memory
Cable Length	2.0m
Scanner Stand	N/A
Power Supply	Standard
Agency Listing	Agency Listing
Attention	*Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
