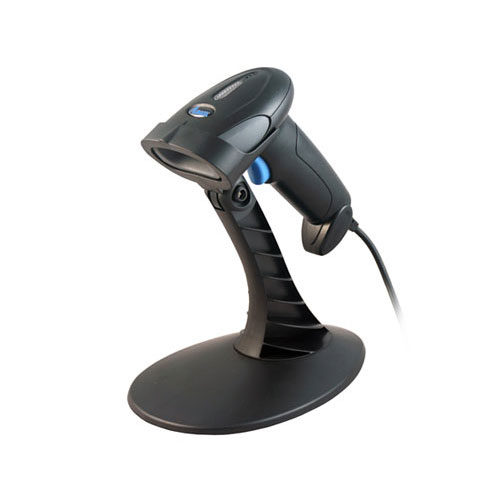

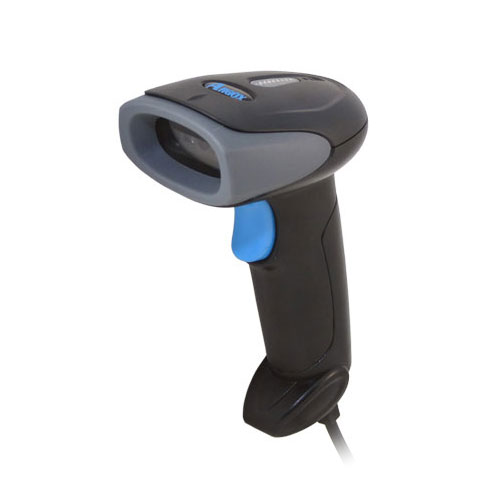

AS-8050 (Successor model: AS-8060)

product description

• Fast 1D barcode reading.
• Up to 3mil reading capacity.
• Easy to read screen barcodes.

New technology and powerful scan engine with excellent performance highly increase the reading speed. High density resolution that can capture the code on 3mil barcode such as jewelry tag. Support all type of electronic device, such as mobile phone, tablet and LCD display.
Successor model: AS-8060

Light Source	632nm visible red LED
Image Sensor	2500 pixels CCD Linear Sensor
Depth of Field	3mil Code39 30mm ~ 100mm, 5mil Code39 30mm ~ 150mm, 12mil Code39 35mm ~ 210mm, 13mil Code39 68mm~ 280mm, 13mil EAN13 48mm ~ 270mm, 34mil Code39 190mm ~ 700mm
Resolution	3mil (Code39)
Print Contrast Ratio (minimum)	25%
Decode Capability	1-D Symbologies:EAN-8, EAN-13, UPC-A, UPC-E, CODABAR (NW7), Code 39, Code 93, INTERLEAVED 2 of 5, STANDARD 2 of 5, MATRIX 2 of 5, Code 128, EAN/UCC 128, Code 11, Chinese post
Wireless Communications	N/A
Communication Interface	USB HID, USB V-Com
Scan Indicators	LED, Beeper
Scanner Dimensions	97mm x 67mm x 165mm
Cradle Dimensions	N/A
Input Voltage	5V+/- 5%
Operating Temperature	-10˚C to 50˚C (14˚F to 122˚F)
Storage	-30˚C to 70˚C (-22˚F to 158˚F)
Humidity	5% to 95% related humidity, non-condensing
Ambient Light	Up to 80,000 lux
Battery	N/A
Drop Resistance	1.5m
Programming Method	Manual (reading special barcode)
Operation Mode	Trigger mode, Auto sensing mode
Sealing	IP42
Program Upgrade	Enabled by build-in flash memory
Cable Length	1.8m
Scanner Stand	Standard
Power Supply	N/A
Agency Listing	CE, FCC, BSMI
Attention	*Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
