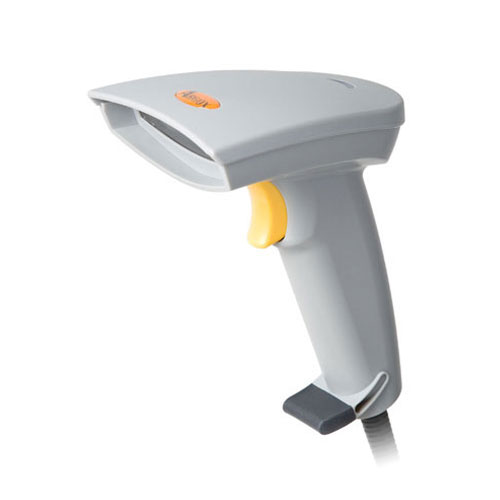

AS-8120 (Successor model: AS-8060)

product description
• Light Weight, Ergonomic Design.
• General Purpose reader – a single device covering the broadest range of application.
• Durable – without any moving parts to wear out.
• 100 scans per second and working range from contact to 150mm on medium density barcodes.
• Excellent Scanning Performance starting at 0.1mm (4 mil).
• Readable Under Sun Light.
• Reliability
(1) Trigger: 1,000,000 times.
(2) Cable: 320,000 times (90°).
(3) Drop: 1.5 meter.
  • The Argoscan 8120 scanner offers excellent scanning performance at an attractive, entry-level price. The AS-8120 reads from contact to 150mm from the barcode and provides accurate decoding in seconds. This scanner features ultra-low power consumption and an all-in-one universal host interface.
    Successor mdel: AS-8060
  •  Light Source 660nm visible red LED
     Image Sensor 2048 pixel CCD
     Depth of Field Code 39 4mil 0-25mm, Code 39 5mil 0-40mm, Code 39 10mil 0-80mm, Code 39 13mil 0-100mm, Code 39 20mil 0-150mm, EAN 13mil 0-100mm
     Resolution 4mil (Code 39)
     Print Contrast Ratio (minimum) 45%
     Decode Capability Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, Industrial 2/5, Interleved 2/5, Italian Pharmacode ( code 32), Matrix 2/5, MSI plessey, Standard 2 of 5, UK plessey, UPCA, UPCE, China Post, RSS 14 (GS1 databar-14), RSS Expanded (GS1 DataBar Expanded), RSS Limited ( GS1 DataBar Limited)
     Wireless Communications N/A
     Communication Interface USB, RS-232
     Scan Indicators LED, Beeper
     Scanner Dimensions 104mm x 89mm x 175mm
     Cradle Dimensions N/A
     Input Voltage 5V+/- 5%
     Operating Temperature 0°C to 45°C (32°F to 113°F)
     Storage -20°C to 60°C (-4°F to 140°F)
     Humidity 5% to 90% relative humidity, non-condensing
     Ambient Light Up to 20,000 Lux
     Battery N/A
     Drop Resistance 1.5m
     Programming Method User Manual setting barcode , Windows ScanUtility configuration program
     Operation Mode Trigger mode, Auto sensing mode
     Sealing N/A
     Program Upgrade N/A
     Cable Length 2.0m
     Scanner Stand Optional
     Power Supply Optional
     Agency Listing CE, FCC, ROHS, BSMI
     Attention  *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
