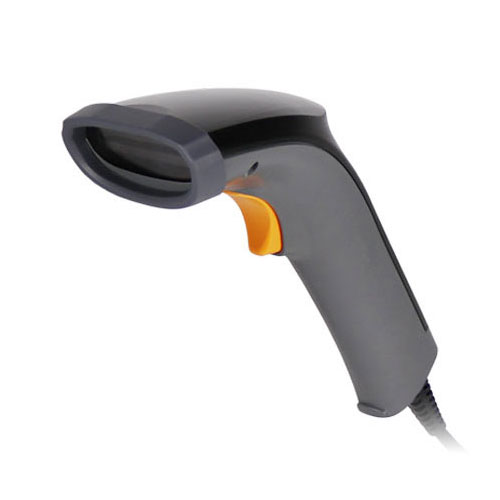

General Duty 1D Scanners
Product Categories
Product Tags (multiple selection)
-
• Compact & simple to operate
Lightweight form factor will reduce worker fatigue.
• Support HD 3mil
Users can capture the high density barcodes common on small retail items such as jewelry labels.
• Supports DataMagic function
Scanned data output can be customized.
• Wide DoF Coverage
Covers from contact to standard scan range, one scanner that does the job of two.
• LCD screen readable
Supports all types of electronic LCD screen, such as mobile phone, tablet.
• Vibration function
With vibration mode, users can instantly confirm a successful scan even in a noisy environment. -
Light Source 630 nm Red LED Image Sensor 2500 Pixel CCD Depth of Field Code39 3mil: 0mm~75mm. Code39 4mil: 0mm~108mm. Code39 5mil: 0mm~146mm. Code39 20mil: 0mm~580mm. EAN 13mil: 0mm~430mm Resolution 3mil (Code 39) Print Contrast Ratio (minimum) >30% Decode Capability Linear: Code11,Code39,Code93,Code32(Pharmaceutical), Code128,Code bar, Interleaved 2of 5, Industrial 2 of 5,IATA 2 of 5, Matrix 2of5,EAN/JAN-13,EAN/JAN-8,UPC-A, UPC-E,UPC-A/EAN-13 with Extended Coupon code, Telepen, Plessey Code, GS1 Databar RSS14, GS1 Databar Limited,GS1 Databar, Omni directional, GS1 Databar Expanded , China Post Stacked Linear: GS1 Databar Expanded Stacked, GS1 Databar RSS14 Stacked, C16K, CodaBlockF Wireless Communications N/A Communication Interface USB(HID/Virtual COM), RS-232 Scan Indicators LED, Beeper and Vibrator Scanner Dimensions 66mm x 143mm x 160mm Cradle Dimensions N/A Input Voltage 5V+/- 5% Operating Temperature -20°C to 60°C (14°F to 140°F) Storage -30°C to 70°C (-22°F to 158°F) Humidity 5% to 95% relative humidity, non-condensing Ambient Light Up to 80,000 Lux Battery N/A Drop Resistance 1.8m Programming Method User Manual setting barcode , Windows ScanUtility configuration program Operation Mode Trigger mode, Auto sensing mode Sealing N/A Program Upgrade Enabled by build-in flash memory Cable Length 2.0m Scanner Stand Optional Power Supply Optional Agency Listing CE, FCC, ROHS, BSMI, BIS Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications. -
-
AR-3100 AR-3200 AR-3201 Brochure EN
AR-3100 AR-3200 AR-3201 Brochure EN V1.6
-
AR-3100 AR-3200 AR-3201 Brochure ES
AR-3100 AR-3200 AR-3201 Brochure ES V1.6
-
AR-3100 AR-3200 AR-3201 Brochure TW
AR-3100 AR-3200 AR-3201 Brochure TW V1.6
-
-
-
AR-3100 AR-3200 Series User Manual EN
AR-3100 AR-3200 Series User Manual EN V1.3
-
AR-3100 AR-3200 Series User Manual TW
AR-3100 AR-3200 Series User Manual TW V1.4
-
AR-3100 AR-3200 Quick Start Guide EN
AR-3100 AR-3200 Quick Start Guide EN
-
Scanner Stand Quick Installation Guide
Scanner Stand Quick Installation Guide V1.0
-
-
-
ComWedge V2.00
Transfer RS-232 signals to be visible in MS software to WindowsXP, 2000, Vista, Win10
-
Scan Utility V225
Scan Utility v225 software
-
-
-
Virtual COM Driver for Win7 2000 XP Vista
Virtual COM Driver for Win7 2000 XP Vista (32 bit & 64 bit)
-
Virtual COM Driver for Win8
Virtual COM Driver for Win8.1 64bit only
-
Virtual COM Driver for Win10
Virtual COM Driver for Win10 only
-
Argoxopos for Win7 Win8 2000 XP Vista 32bit
Argoxopos for Win7 Win8 2000 XP Vista (32 bit)
-
Argoxopos for Win10
Argoxopos for Win10
-
-
