AS-8250 Rev.B (Successor model: AR-3100)

product description
• Gerneral Purpose reader – a signle device covering the broadest range of application.
• Durable – without any moving parts to wear out.
• Plug and play connectivity – All popular interfaces are on board KBW /USB/RS-232
• 200 scans per second and working range from contact to 250mm on medium density barcodes.
• AS-8250 Rev.B Support PDF417 decoding.
• Aiming line- Aiming line for easy-of-use in scanning barcode.
• Excellent Scanning Performance starting at 0.1mm (4 mil).
• Readable Under Sun Light.
• Reliability
(1) Trigger: 1,000,000 times.
(2) Cable: 320,000 times (90°).
(3) Drop: 1.5 meter.

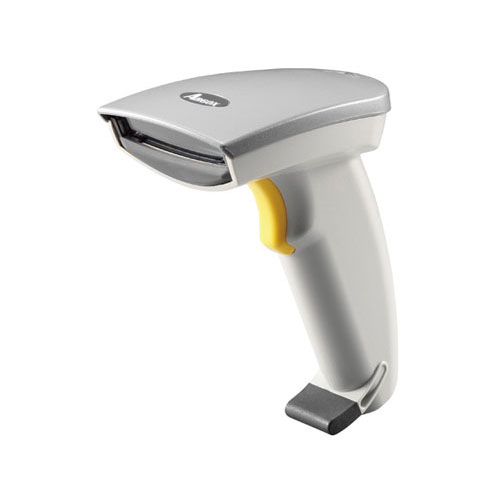

  • The AS-8250 Rev.B long range scanner is suitable for a wide range of applications, from retail checkout and inventory management, to invoicing in offices and shipping/receiving control in factories. This long range model delivers fast and accurate reading of PDF codes, Code 16K as well as all standard linear symbologies. The AS-8250 Rev.B provides users with many benefits, including a 200mm scanning range, small size, and cost effectiveness. The scanner offers an all-in-one universal host interface, and a Windows utility is included.
    Successor mdel: AR-3100
  •  Light Source 660nm visible red LED
     Image Sensor 2048 pixel CCD
     Depth of Field Code 39 5mil 31~75mm, Code 39 10mil 51-200mm, Code 39 13mil 107-285mm, Code 39 20mil 135-435mm, EAN 13mil 35-280mm
     Resolution 4mil (Code 39)
     Print Contrast Ratio (minimum) 25%
     Decode Capability Chinese 2/5, Codablock F, Code 11, Code 32, Code 49, Discrete 2 of 5 (DTF), EAN-13, IATA 2/5, Industrial 2/5, ISBT-128, Korean 3 of 5, Matrix 2/5, Postnet, Standard 2 of 5? Straight 2 of 5, UCC composite, UK plessey, UPCA, Canadian Post, Postal Code, MicroPDF417, PDF-417, RSS 14 (GS1 databar-14), RSS Expanded (GS1 DataBar Expanded)
     Wireless Communications N/A
     Communication Interface USB, RS-232
     Scan Indicators LED, Beeper
     Scanner Dimensions 106mm x 83mm x 181mm
     Cradle Dimensions N/A
     Input Voltage 5V+/- 5%
     Operating Temperature 0°C to 45°C (32°F to 113°F)
     Storage -40°C to 60°C (-40°F to 140°F)
     Humidity 5% to 90% relative humidity, non-condensing
     Ambient Light Up to 80,000 Lux
     Battery N/A
     Drop Resistance 1.5m
     Programming Method User Manual setting barcode , Windows ScanUtility configuration program
    Operation Mode Trigger mode, Auto sensing mode
     Sealing IP42
     Program Upgrade Enabled by build-in flash memory
     Cable Length 2.0m
     Scanner Stand Optional
     Power Supply Optional
     Agency Listing CE, FCC, ROHS, BSMI
     Attention  *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
