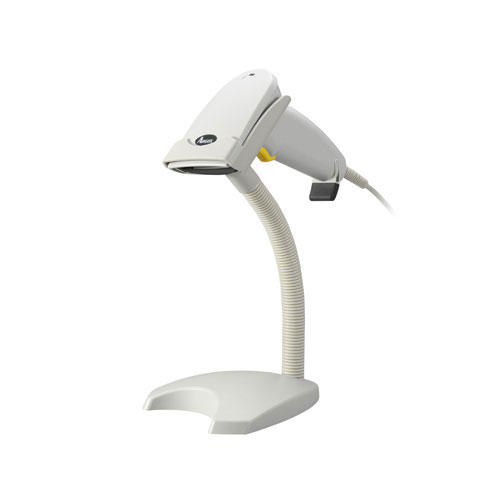

AS-8150 Rev.B (Successor model: AR-3100)

product description

• Gerneral Purpose reader – a signle device covering the broadest range of application.
• Durable – without any moving parts to wear out.
• Plug and play connectivity – All popular interfaces are on board KBW /USB/RS-232
• 200 scans per second and working range from contact to 250mm on medium density barcodes.
• Aiming line- Aiming line for easy-of-use in scanning barcode.
• Excellent Scanning Performance starting at 0.1mm (4 mil).
• Readable Under Sun Light.
• Reliability
(1) Trigger: 1,000,000 times.
(2) Cable: 320,000 times (90°).
(3) Drop: 1.5 meter.

Compare Inquire

Information
General Specifications
User Manual

The AS-8150 Rev.B long range scanner is suitable for a wide range of applications, from retail checkout and inventory management, to invoicing in offices and shipping/receiving control in factories. This long range model delivers fast and accurate reading of PDF codes, Code 16K as well as all standard linear symbologies. The AS-8150 Rev.B provides users with many benefits, including a 200mm scanning range, small size, and cost effectiveness. The scanner offers an all-in-one universal host interface, and a Windows utility is included.
Successor mdel: AR-3100

Light Source	660nm visible red LED
Image Sensor	2048 pixel CCD
Depth of Field	Code 39 5mil 15~75mm, Code 39 10mil 35-200mm, Code 39 13mil 105-285mm, Code 39 20mil 135-435mm, EAN 13mil 35-280mm.
Resolution	4mil (Code 39)
Print Contrast Ratio (minimum)	25%
Decode Capability	Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, Industrial 2/5, Interleved 2/5, Italian Pharmacode ( code 32), Matrix 2/5, MSI plessey, Standard 2 of 5, Telepen, UK plessey, UPCA, UPCE, China Post, Code-16K, PDF-417, RSS 14 (GS1 databar-14), RSS Expanded (GS1 DataBar Expanded), RSS Limited ( GS1 DataBar Limited).
Wireless Communications	N/A
Communication Interface	USB, RS-232
Scan Indicators	LED, Beeper
Scanner Dimensions	106mm x 83mm x 181mm
Cradle Dimensions	N/A
Input Voltage	5V+/- 5%
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage	-40°C to 60°C (-40°F to 140°F)
Humidity	5% to 90% relative humidity, non-condensing
Ambient Light	Up to 80,000 Lux
Battery	N/A
Drop Resistance	1.5m
Programming Method	User Manual setting barcode , Windows ScanUtility configuration program
Operation Mode	IP42
Sealing	Trigger mode, Auto sensing mode
Program Upgrade	Enabled by build-in flash memory
Cable Length	2.0m
Scanner Stand	Optional
Power Supply	Optional
Agency Listing	CE, FCC, ROHS, BSMI
Attention	*Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
