XM4-200

Striding towards the intelligent future!



Intelligent device is the inseparable part of our lives, and the market trend of AIDC industry is facing the same situation now. Argox XM4-200 is designed to satisfy customer demand for a smart industrial printer. Large color display, offering user-friendly & convenient operation interface. High printing speed keeps production line running efficiently. With 128MB DRAM & 128MB Flash ROM, XM4-200 can store more data & fonts. High-quality industrial printhead is suitable for high-volume printing applications.

---

1. High printing speed
The maximum printing speed can reach up to 12ips(304.8mm/s), enhance working efficiency.

---

2. Increased memory
32-bit CPU & 128MB DRAM & 128MB Flash ROM, increased memory can store more data & fonts.

---

3. Large color display
With large color display & buttons, customers are easier to manage & adjust printer settings.

---

4. Durable printhead
High-quality industrial printhead, suitable for logistics, manufacturing, automatic labeling applications.



---

Application
1. Manufacturing
2. Transportation & Logistics
3. Healthcare

Printing Method	Direct Thermal & Thermal Transfer
Printing Resolution	203 dpi (8 dots/mm)
Printing Speed	Max. 12ips (304.8mm/s)
Printing Length	Max. 100”(2540 mm)
Printing Width	Max. 4.09”(104 mm)
Memory	128MB DRAM, 128MB Flash ROM
CPU Type	32 bit RISC microprocessor
Sensors	Reflective sensor x 1 (Movable) & Transmissive sensor x 1(Movable)
Operation Interface	LED indicator x 3, Button x 7, 3.5” Color LCD x1

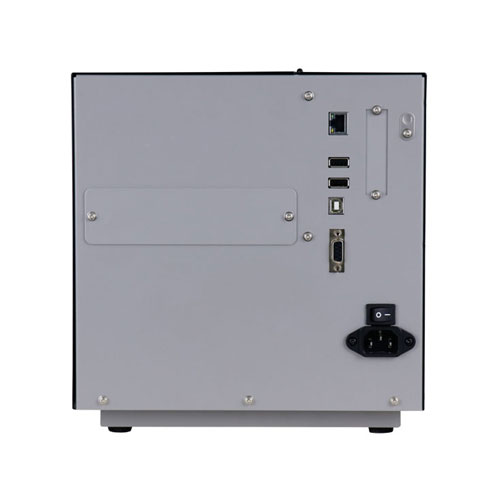

Communication         Interface	USB device, RS-232, Ethernet, USB host x 2
Fonts	Internal character sets standard 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24x24 4 direction 0 ~ 270 rotation Soft fonts are downloadable Ability to print any Windows True Type font easily. Support scalable font
Wireless Security	N/A
1D Barcodes	UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial 2of5, MSI, UPCadd-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirecional, GS1DataBar Limited, GS1 DataBar Expanded, GS1DataBar Expanded Stacked
2D Barcodes	QR Code, PDF417 (includingMicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode
Graphics	PPLA: PCX, BMP, IMG, HEX,GDI PPLB: PCX, BMP, Binary raster, GDI PPLZ: GRF, Hex, GDI
Emulation	PPLA, PPLB, PPLZ, Auto
Software-label Editing	BarTender® from Seagull Scientific, Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
Software-utility	Printer Tool, Font Utility
Driver tools	Windows Driver for Windows Vista/Win7/Win8/Win10, LINUX Driver, macOS Driver, Raspberry Pi Driver
Media Type	Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper
Media	Max. width: 4.48”(114mm). Min. width: 1”(25.4 mm). Thickness: 0.0025”~0.01” (0.0635mm~0.254mm) 8”(203mm)OD on a 3”(76mm) ID core. Dealer Option 6"(152.4mm)OD on a 1.5"(38mm) ID core.
Ribbon	Max. width: 4.4”(112 mm). Min. width: 1” (25.4 mm). Length:max 450m Wax, Max OD 3.2” (81.3 mm). Core size ID 1”(25.4 mm). Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect)
Drop Resistance	N/A
Printer Dimensions	W 250 mm x H 260 mm x D 390 mm
Printer Weight	29 lbs (13 kg)
Power Source	Internal Universal Switching Power supply. Input voltage: 100~240V, 50~60Hz
Battery	N/A
Operation Environment	Operation Temperature: 40°F~104°F (4°C~40°C), 5% ~ 90% non-condensing Storage Temperature: -4°F~122°F (-20°C~50°C)
Real Time Clock	Standard
Standard Item	N/A
Optional Items	Cutter, Peeler ,GPIO  module, Internal rewinder,External rewinder,External media stand
Agency Listing	CE, CB, FCC, cULus, CCC, RoHS
Attention	*Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
