邁向智慧新時代!

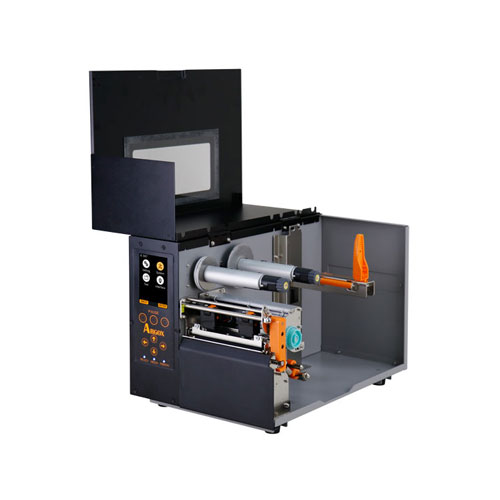

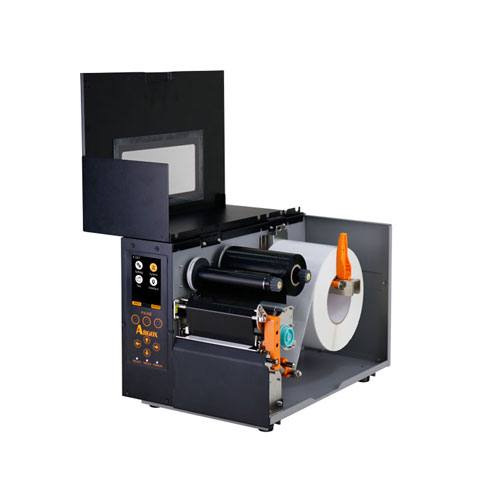

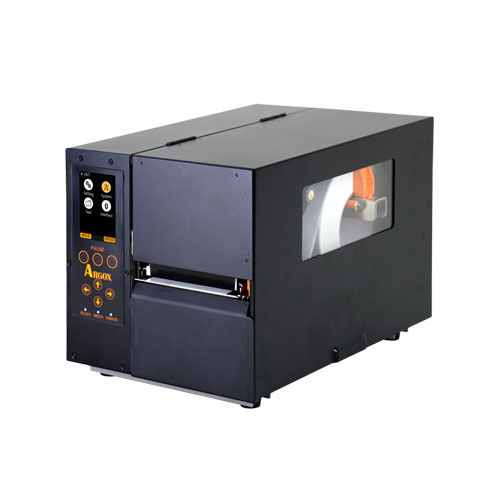

智慧型裝置已經成為你我日常生活中不可或缺的一部份,現今AIDC產業也是如此。立象科技XM4-200便是為了滿足客戶對於智慧型工業印表機而設計。具備彩色大螢幕,提供更友善和便利的操作介面。高速列印能夠讓生產線更有效率地運作。XM4-200具備大容量128MB DRAM和128MB Flash ROM,能夠儲存更多資料和字型。耐用的工業級印字頭,適合各種高印量需求使用。
產品特色
1.高速列印
最大列印速度可達到12ips(304.8mm/s),有效提升工作效率。
2. 加大記憶體容量
使用32-bit CPU,128MB DRAM和128MBFlash ROM,更大的運用空間可儲存資料和字型。
3. 大尺寸彩色螢幕
面板使用大尺寸彩色螢幕和按鍵,方便客戶管理及設定印表機。
4.更耐用的印字頭
新印字頭有更高的穩定性與高品質,適用於自動化貼標與貨運物流業。
應用範圍
1. 製造業
2. 貨運物流業
3. 醫療業 -

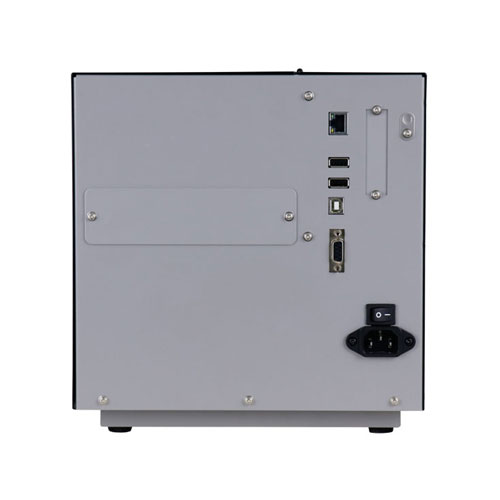

列印方式 熱感式 & 熱轉式 解析度 203 dpi (8 dots/mm) 最大列印速度 最大速度12ips (304.8mm/s) 最大列印長度 最大 100” (2540mm) 最大列印寬度 最大4.09” (104mm) 記憶體 128MB DRAM, 128MB Flash ROM 中央處理器 32 位元RISC 微處理器 感測裝置 紙張反射式感測器(可調整)/紙張穿透式感測器(可調整) 操作介面 LED指示燈 x 3,按鍵 x 7,3.5”彩色LCD x 1 通訊介面 USB device, RS-232, Ethernet, USB host 字型 5種國際標準字型(1.25mm~ 6mm),最大可達 24x24,四方向旋轉0°~270°,可由軟體下載Windows True Type 字型 無線網絡安全 N/A 一維條碼 UPC-A, UPC-E, JAN/EAN, CODE39, CODE93, CODE128, GS1-128 (UCC/EAN128), CODABAR (NW-7), ITF, Industrial
2of5, MSI, UPCadd-on code, POSTNET, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked,
GS1 DataBar Stacked Omnidirecional, GS1DataBar Limited, GS1 DataBar Expanded, GS1DataBar Expanded Stacked二維條碼 QR Code, PDF417 (includingMicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode 圖片格式 PPLA: PCX, BMP, IMG, HEX,GDI
PPLB: PCX, BMP, Binary raster, GDI
PPLZ: GRF, Hex, GDI指令集 PPLA, PPLB, PPLZ 標籤編輯軟體 BarTender® from Seagull Scientific, Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf) 軟體工具 Printer Tool, Font Utility 驅動程式 Windows Driver for Windows Vista/Win7/Win8/Win10, LINUX Driver, macOS Driver, Raspberry Pi Driver 紙張種類 紙捲式、標籤式(間距紙、連續紙、折疊紙、票券、吊牌...等) 紙張規格 最大寬度:4.48”(114mm) 最小寬度:1”(25.4mm) 紙張厚度:0.0025”~0.01” (0.0635mm~0.254mm)
紙捲軸心3”(76mm)可容紙捲外徑8”(203mm),經銷商選配紙捲軸心1.5”(38mm)可容紙捲外徑6”(152.4mm)碳帶規格 寬度:1”~4.4”(25.4mm~112mm) 最大長度:450m(蠟質) 最大外徑:3.2”(81.3mm)
軸心內徑:1”(25.4mm) 適用種類:蠟質、半蠟半樹脂、全樹脂(內捲式和外捲式碳帶皆適用)防摔係數 N/A 條碼列印機尺寸 寬 250 mm x 高 260 mm x 深 390 mm 條碼列印機重量 29lbs (13 kg) 電源供應 切換式電源供應器,交流輸入100~240V,50~60Hz 電池 N/A 環境條件 操作環境:40˚F~104˚F (4˚C~40˚C). 相對溼度:5%~90%
儲存環境:-4˚F~122˚F (-20˚C~50˚C).Real Time Clock 內建 標準配件 N/A 選購配件 閘刀裁紙器、GPIO 模組、 剝紙器、底紙回捲器、標籤回捲器、外掛紙架 安規認證 CE, CB, FCC, cULus, CCC, RoHS 注意事項 * 立象科技保留增加和修改規格的權利,恕不另行通知。 請聯絡立象科技業務代表以獲取最新規格。 -
-
