iX4 Series
Product Categories
Product Tags (multiple selection)

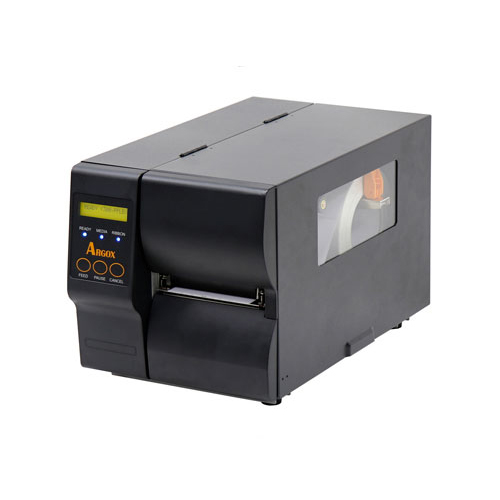

iX4-350 Pro

product description
• For high volume printing.
• Printing speed upgrade to 8 inches/sec.
• Multiple interfaces.
Tags :
  • Printer-Printing-width-4"
  • Printer-Direct-thermal
Compare Inquire

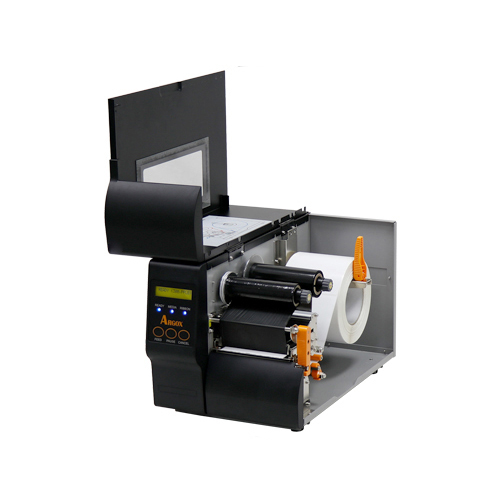

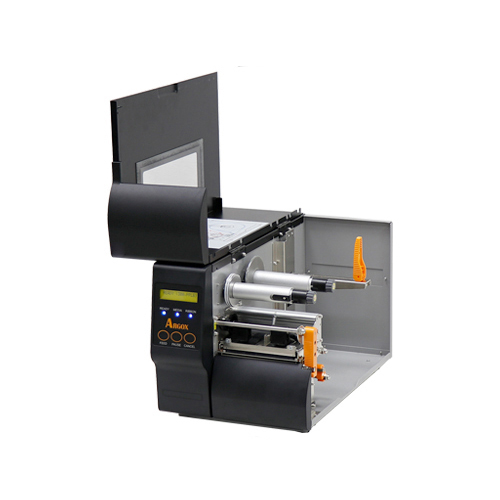

  • With new mechanical design, iX4 Pro series supports a large 8.26 inch outer diameter label roll and up to 450 meter ribbon capacity. Featuring 8 ips print speed, even print with the highest speed, it can still maintain the perfect print quality. The iX4 Pro series has built-in Ethernet, Dual USB hosts, USB device, RS-232, and it can be expanded with Wi-Fi, GPIO card.

    cp-2140ex_05
  •   Printing Method Direct Thermal & Thermal Transfer
      Printing Resolution 300 dpi(12 dots/mm)
      Printing Speed Max. 6 ips
      Printing Length Max. 50”(1270mm)
      Printing Width Max. 4.08”(103.7 mm)
      Memory 128MB DRAM, 128MB Flash ROM (USB storage up to 32GB)
      CPU Type 32 bit RISC microprocessor
      Sensors Reflective sensor x 1 (Movable) & Transmissive sensor x 1(Movable)

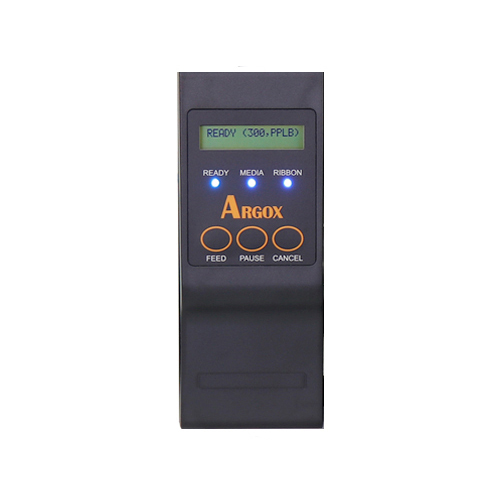

      Operation Interface LED indicator x 3, Button x 3, LCD Display x 1

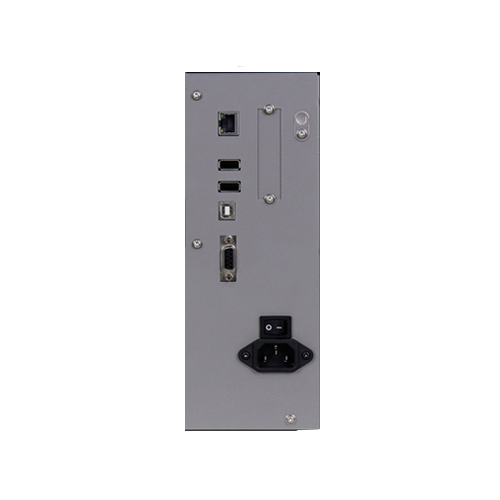

      Communication Interface USB device, RS-232, Ethernet, USB host x 2
      Fonts Internal character sets standard, 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm), Internal fonts are
    expandable up to 24x24 4 direction 0 ~ 270 rotation. Soft fonts are downloadable, GB 18030 Standard (Chinese coded
    character set) support. Ability to print any Windows True Type font easily. Support scalable font
      Wireless Security N/A
      1D Barcodes PPLA: Code 39、UPC-A、UPC-E、Code 128 subset A/B/C、EAN-13、EAN-8、HBIC、Codabar、Plessey、UPC2、UPC5、Code 93、Postnet、
    UCC/EAN-128、,UCC/EAN-128 K-MART、 UCC/EAN-128 Random weight、Telepen、FIM、Interleaved 2 of 5 (Standard/with modulo 10 checksum/
    with human readable check digit/ with modulo 10 checksum & shipping bearer bars) 、GS1 Data bar (RSS)
    PPLB: Code 39、 UPC-A、 UPC-E、 Matrix 2 of 5、 UPC-Interleaved 2 of 5、Code 39 with check sum digit 、Code 93、EAN-13、EAN-8 (Standard, 2
    /5digit add-on) 、Codabar、Postnet、Code128 subset A/B/C、Code 128 UCC (shipping container code) 、Code 128 auto、UCC/EAN code 128
    (GS1-128) 、 Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、German Postcode、Matrix 2 of
    5、 UPC Interleaved 2 of 5、 EAN-13 2/5 digit add-on、 UPCA 2/5 digit add-on、UPCE 2/5 digit add-on、GS1 Data bar (RSS)
    PPLZ: Code39、 UPC-A、 UPC-E、 Postnet、 Code128 subset A/B/C、Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with
    human readable check digit、Code 93、Code 39 with check sum digit、MSI、EAN-8、Codabar、Code 11、EAN-13、Plessey、GS1 Data bar (RSS) 、
    Industrial 2 of 5、 Standard 2 of 5、 Logmars
      2D Barcodes QR Code, PDF417 (includingMicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode
      Graphics PPLA: PCX, BMP, IMG, HEX,GDI
    PPLB: PCX, BMP, Binary raster, GDI
    PPLZ: GRF, Hex, GDI
      Emulation PPLA, PPLB, PPLZ, Auto
      Software-label Editing BarTender® from Seagull Scientific Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
      Software-utility BarTender, ArgoxBar Pro, Printer Tool, Font Utility, iLabelPrint+
      Driver tools Argox Seagull Driver (Windows Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver
      Media Type Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper
      Media Max. width:4.48”(114mm). Min. width: 1” (25.4 mm). Thickness: 0.0025”~0.01” (0.0635mm~0.254mm) 8.26”(210mm)OD on a 3”(76mm) ID core. 7”(177.8mm) OD on a 1.5”(38mm) ID core
      Ribbon Max. width:4.4”(112mm). Min. width: 1” (25.4 mm). Length: 450m Wax, Max OD 3.2” (81.3mm). Core size ID 1”(25.4mm). Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect)
      Drop Resistance N/A
      Printer Dimensions W 257 mm x H 263 mm x D 432 mm
      Printer Weight 13 kgs
      Power Source Internal Universal Switching Power supply. Input voltage: 100~240V, 50~60Hz
     Battery N/A
      Operation Environment Operation Temperature: 40°F~104°F (4°C~40°C), 0% ~ 90% non-condensing Storage Temperature: -4°F~122°F (-20°C~50°C)
      Real Time Clock Standard
      Optional Items Guillotine cutter, Rotary cutter, Peeler, Rewinder kit, WLAN, GPIO, External rewinder
      Agency Listing CE, CB, cULus, FCC, ICES, RoHS, BSMI
      Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.

    • ArgoBar Pro V2.16

      Barcode editing software
      Support Windows Vista, Windows 7, Windows 8.1, Windows 10 (32-bit or 64-bit) Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2 (32-bit or 64-bit). ​
      Support languages: English, Simplified Chinese, Traditional Chinese Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)

      Download

    • BarTender 2022 R6

      Barcode editing software
      Support Windows11, Windows 10, Windows Server 2022, Server 2019, Server2016

      Download

    • BarTender 2016 R7

      Barcode editing software
      Support Windows11, Windows 10, Windows 8 and 8.1, Windows 7, Windows Vista, Windows Server 2022, Server 2019, Server2016, Server2012 R2, Server2012, Server 2008 R2, Server 2008

      Download

    • Printer Tool V1.1.1

      Printer setup software

      Download

    • Font Utility V3.04

      Font tool
      For Windows XP and higher. This utility enables to true type font(TTF) and load the fonts into printers. Support: Windows 10(64bit/32bit), 8.1(64bit/32bit), 8(64bit/32bit), 7, ME, 2000, NT, Vista, XP

      Download

    • Command Library V4.12

      Command Library V4.12 software developing tool for professional users.
      Support: Windows 10(64bit/32bit), Windows 8(64bit/32bit), Windows 7(64bit/32bit), Windows Vista(64bit/32bit), Windows XP(64bit/32bit)

      Download

    • Argox SDK V1.4.0

      SDK supports Java、C#／Windows/Android/Linux system, PPLB, PPLZ emulation.

      Download

    • iLabelPrint+ V2.1.2 Google Play

      iLabelPrint+ is a label design and printing application for mobile devices. We can use this application to easily design practical or professional labels, and output them to label paper with the connected ARGOX label printer. Support Blurtooth, LAN, WiFi, USB OTG connection on Android v7.0 and above.

      Download

    • iLabelPrint+ V2.1.2 App Store

      iLabelPrint+ is a label design and printing application for mobile devices. We can use this application to easily design practical or professional labels, and output them to label paper with the connected ARGOX label printer. Support Blurtooth, LAN, WiFi connection on iOS 13 and above.

      Download
