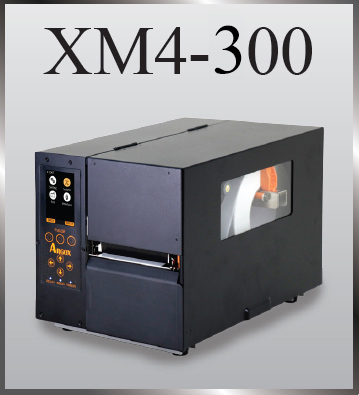

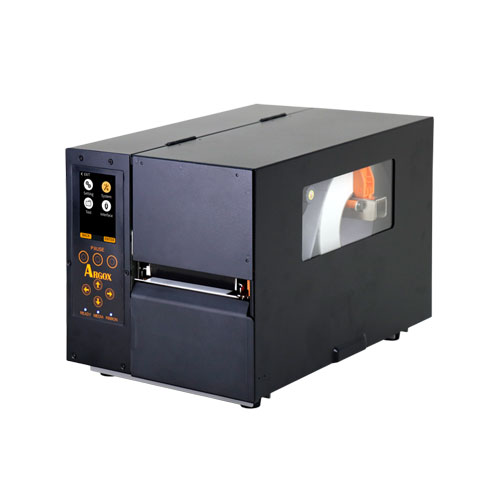

XM4-300

Striding towards the intelligent future!

Intelligent device is the inseparable part of our lives, and the market trend of AIDC industry is facing the same situation now. Argox XM4-300 is designed to satisfy customer demand for a smart industrial printer. Large color display, offering user-friendly & convenient operation interface. High printing speed keeps production line running efficiently. With 128MB DRAM & 128MB Flash ROM, XM4-300 can store more data & fonts. High-quality industrial printhead is suitable for high-volume printing applications.

---

1. High printing speed
The maximum printing speed can reach up to 8ips(203.2mm/s), enhance working efficiency.

---

2. Increased memory
32-bit CPU & 128MB DRAM & 128MB Flash ROM, increased memory can store more data & fonts.

---

3. Large color display
With large color display & buttons, customers are easier to manage & adjust printer settings.

---

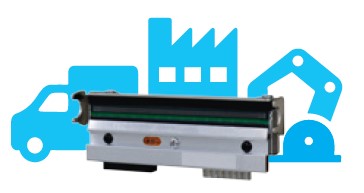

4. Durable printhead
High-quality industrial printhead, suitable for logistics, manufacturing, automatic labeling applications.



---

Application
1. Manufacturing
2. Transportation & Logistics
3. Healthcare

Printing Method	Direct Thermal & Thermal Transfer
Printing Resolution	300 dpi (12 dots/mm)
Printing Speed	Max. 8ips (203.2mm/s)
Printing Length	Max. 50” (1270mm)
Printing Width	Max. 4.16” (105.7mm)
Memory	128MB DRAM, 128MB Flash ROM
CPU Type	32 bit RISC microprocessor
Sensors	Reflective sensor x 1 (Movable) & Transmissive sensor x 1(Movable)
Operation Interface	LED indicator x 3, Button x 7, 3.5” Color LCD x1

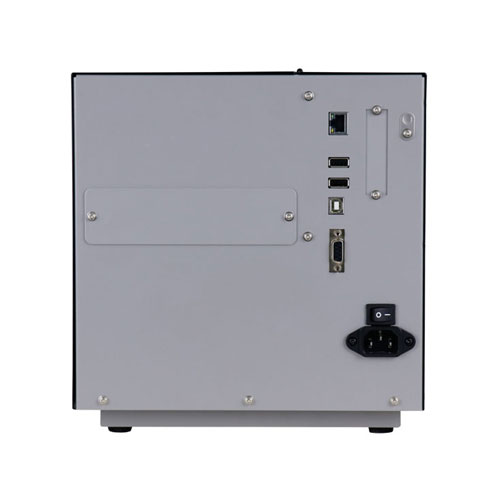

Communication  Interface	USB device, RS-232, Ethernet, USB host x 2
Fonts	Internal character sets standard. 5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm) Internal fonts are expandable up to 24x24 4 direction 0 ~ 270 rotation/. Soft fonts are downloadableAbility to print any Windows True Type font easily. Support scalable font (Optional); GB 18030 Standard (Chinese coded character set) support
Wireless Security	N/A
1D Barcodes	PPLA: Code 39、UPC-A、UPC-E、Code 128 subset A/B/C、EAN-13、EAN-8、HBIC、Codabar、Plessey、UPC2、UPC5、Code 93、Postnet、UCC/EAN-128、,UCC/EAN-128 K-MART、 UCC/EAN-128 Random weight、Telepen、FIM、Interleaved 2 of 5 (Standard/with modulo 10 checksum/ with human readable check digit/ with modulo 10 checksum & shipping bearer bars) 、GS1 Data bar (RSS) PPLB: Code 39、 UPC-A、 UPC-E、 Matrix 2 of 5、 UPC-Interleaved 2 of 5、Code 39 with check sum digit 、Code 93、EAN-13、EAN-8 (Standard, 2/5digit add-on) 、Codabar、Postnet、Code128 subset A/B/C、Code 128 UCC (shipping container code) 、Code 128 auto、UCC/EAN code 128 (GS1-128) 、 Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、German Postcode、Matrix 2 of 5、 UPC Interleaved 2 of 5、 EAN-13 2/5 digit add-on、 UPCA 2/5 digit add-on、UPCE 2/5 digit add-on、GS1 Data bar (RSS) PPLZ: Code39、 UPC-A、 UPC-E、 Postnet、 Code128 subset A/B/C、Interleave 2 of 5、Interleaved 2 of 5 with check sum、Interleaved 2 of 5 with human readable check digit、Code 93、Code 39 with check sum digit、MSI、EAN-8、Codabar、Code 11、EAN-13、Plessey、GS1 Data bar (RSS) 、Industrial 2 of 5、 Standard 2 of 5、 Logmars
2D Barcodes	QR Code, PDF417 (includingMicroPDF), DataMatrix (ECC200), GS1 DataMatrix, MaxiCode
Graphics	PPLA: PCX, BMP, IMG, HEX,GDI PPLB: PCX, BMP, Binary raster, GDI PPLZ: GRF, Hex, GDI
Emulation	PPLA, PPLB, PPLZ, Auto
Software-label Editing	BarTender® from Seagull Scientific, Argobar Pro support ODBC Database Connection: Excel, CSV, MS Access, MS SQL, Oracle MySQL, dBASE (*.dbf)
Software-utility	BarTender, ArgoxBar Pro, Printer Tool, Font Utility, iLabelPrint+
Driver tools	Windows Vista/Win7/Win8/Win10, LINUX Driver, macOS Driver, Raspberry Pi Driver
Media Type	Roll-feed, die-cut, continuous, fan-fold, black mark, tags, ticket in thermal paper or plain paper
Media	Max. width: 4.48”(114mm). Min. width: 1”(25.4 mm). Thickness: 0.0025”~0.01” (0.0635mm~0.254mm) 8”(203mm)OD on a 3”(76mm) ID core. Dealer Option 6"(152.4mm)OD on a 1.5"(38mm) ID core.
Ribbon	Max. width: 4.4”(112 mm). Min. width: 1” (25.4 mm). Length:max 450m Wax, Max OD 3.2” (81.3 mm). Core size ID 1”(25.4 mm). Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in: auto-detect)
Drop Resistance	N/A
Printer Dimensions	W 250 mm x H 260 mm x D 390 mm
Printer Weight	29 lbs (13 kg)
Power Source	Internal Universal Switching Power supply. Input voltage: 100~240V, 50~60Hz
Battery	N/A
Operation Environment	Operation Temperature: 40°F~104°F (4°C~40°C), 5% ~ 90% non-condensing Storage Temperature: -4°F~122°F (-20°C~50°C)
Real Time Clock	Standard
Standard Item	N/A
Optional Items	Cutter, Peeler ,GPIO  module, Internal rewinder,External rewinder,External media stand
Agency Listing	CE, CB, FCC, cULus, RoH,BSMI
Attention	*Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
