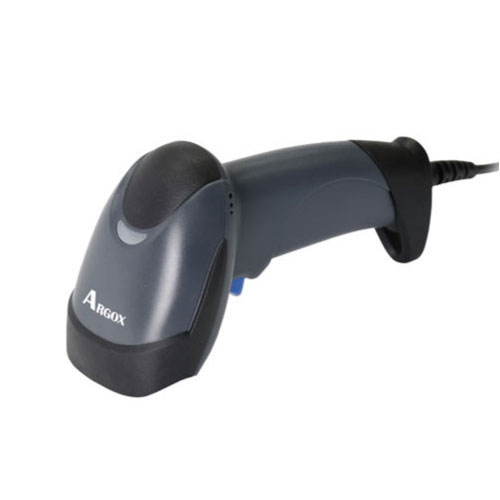

AS-9400

product description

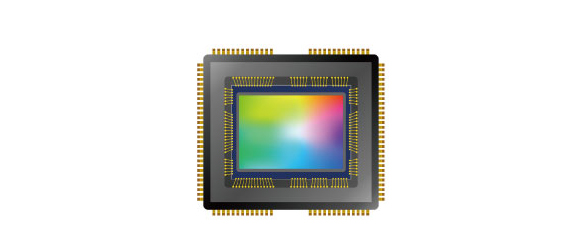

• 640 x 480 array image sensor
• Resolution: 1D>=3mil (code 39); 2D>=7.5mil (QR)

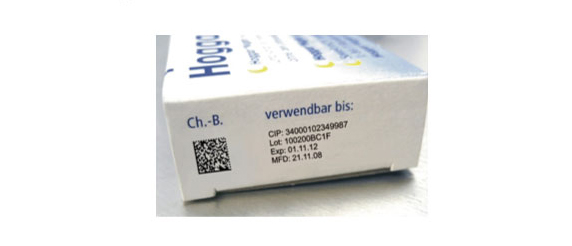

• “GS1 DataMatrix for UDI application” reading available

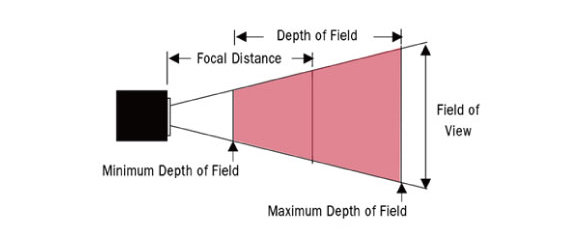

• Depth of Field: 60~200mm (Code 128, 10mil); 40~120mm (QR code, 10mil); 50~140mm (DM code, 15mil)
• Drop resistance: 1.5 meters onto the concrete

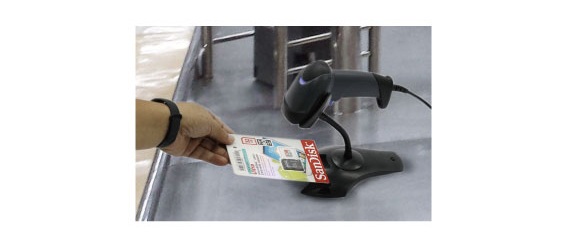

• Auto-sensing (presentation) mode available
  • AS-9400-04 (1)

    AS-9400, best choice for Entry-level 2D imager


    1. 640 x 480 array image sensor

     2. Resolation: 1D>=3mil(code 39_; 2D>= 7.5 mil (OR)


    3. GS1 DataMatrix for UDI application" reading available.

    4. Depth of Field:
        60~200mm (Code 128, 10mil)
        40~120mm (QR code, 10mil)
        50~140mm (DM code, 15mil)


    5. Drop resistance: 1.5 meters onto the concrete

    6. Auto-sensing (presentation) mode available


    Application
    • Retail
    • Manufacturing
    • Transportation & Logistics
    • Library & Office
    • Healthcare










  •  Light Source 630nm visible red LED
     Image Sensor 640x 480 array image sensor
     Depth of Field Code 128 10mil 18bytes: 60~200mm
    QR 10mil 160bytes: 40~120mm
    DM 15mil 100bytes: 50~140mm
     Resolution 1D>=3mil (Code 39) 2D>=7,.5mil (QR code)
     Print Contrast Ratio (minimum) ≧25%
     Decode Capability 1-D: Code11, Code39, Code93, Code32 (Pharmaceutical), Code128 (GS1-128), ISBT-128, Codabar (NW7), Interleaved 2of 5, Industrial 2 of 5, Discrete 2 of 5 (DTF), IATA 2 of 5, Matrix 2of 5, EAN/JAN-13, plus supplement, EAN/JAN-8, plus supplement, UPCA, plus supplement, UPCE, plus supplement, UPCE1, ISBN (Bookland), MSI Plessey Code, GS1 Databar RSS14, GS1 Databar Limited, GS1 Databar Omnidirectional, GS1 Databar Expanded 2-D: GS1 Databar Expanded Stacked, GS1 Databar RSS14 Stacked, PDF417, Micro PDF417, Composite Codes (CC-A, CC-B, CC-C/CC-B, CC-C), Aztec, MaxiCode, DataMatrix/ECC 200, QR Code, Micro QR Code, GS1 DataMatrix
     Wireless Communications N/A
     Communication Interface USB-HID, USB-Virtual COM
     Scan Indicators LED, Beeper
     Scanner Dimensions 90mm x 60mm x 160mm
     Cradle Dimensions N/A
     Input Voltage 5V±5%
     Operating Temperature 0°C to 50°C
     Storage -20°C to 80°C
     Humidity 5% to 95% relative humidity (non-condensing)
     Ambient Light Up to 100000 lux
     Battery N/A
     Drop Resistance 1.5 meters onto concrete
     Programming Method Standard: User Manual setting barcode
     Operation Mode Tigger mode, Auto sensing mode
     Sealing IP41
     Program Upgrade Enabled by build-in flash memory (Field Upgrade)
     Cable Length 1.8m
     Scanner Stand Optional
     Power Supply N/A
     Agency Listing CE, FCC, BSMI, RoHS, etc.
     Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
