AS-9500 series

product description

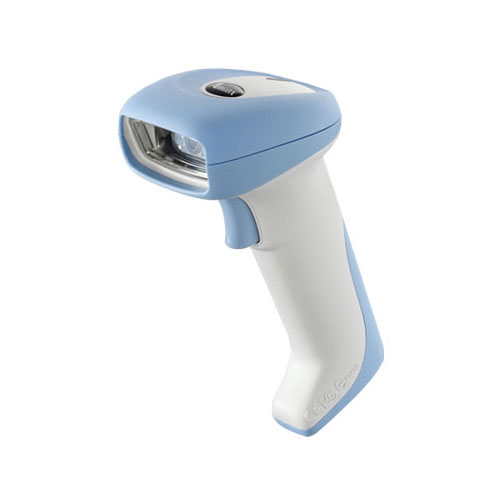

Models List: AS-9500g, AS-9500H(Health), AS-9500HD

• Three different models for various applications: AS-9500g (General Use); AS-9500H(Health); AS-9500HD (High Density).
• Aiming line for easy-of-use in scanning barcode.
• Plug and play connectivity – All popular interfaces are on board including RS-232, USB HID and USB COM port.
• Readable under sun light to 100,000 Lux.
• Durable – Withstand 1.8m floor drop and reach IP42 dust and splash resistance.
• Support scanning 2-Dimensional symbols such as MaxiCode, DataMatrix, QR Code and Aztec, as well as the full range of barcode symbologies.
• Reliability
(1) Trigger: 1,000,000 times.
(2) Cable: 320,000 times (90°).
  • Argox has launched its first 2D scanner, the AS-9500. The new handheld scanner is small, lightweight and easy-to-use, and not only does it read all popular 1D and 2D barcodes, it also reads postal codes and OCR. The AS-9500 works in all environments including bright sunlight up to 100,000 Lux. Now the new AS-9500 series with vibration mode comes in three models for different applications, which include the AS-9500g for general use,  and the AS-9500HD for high density scans.
    The AS-9500 series is durable and designed for everyday use, meeting IP42 dustproof and waterproof standards as well as drop tests from 1.8 meters. It connects to other devices via RS-232, USB HID and USB COM port interfaces. The AS-9500 is ideal for use in applications requiring information-rich 2D barcodes, such as hospitals, pharmacies, libraries, government tax bureaus, customs, industry, automotive, and more.
  •  Light Source 660nm visible red LED
     Image Sensor 752*480 Area Imager
     Depth of Field Code 39 5mil 74-82mm, Code 39 10mil 38-145mm, Code 39 13mil 39-210mm, Code 39 20mil 0-260mm, EAN 13mil 35-208mm, QR code 8mil 74-112mm, QR code 10 mil 61-136mm, QR code 13mil 39-154mm, QR code 20mil ~211mm, PDF 417 10mil 55-159mm, PDF 417 13mil 65-173mm
     Resolution AS-9500G/AS-9500H:5mil (Code 39). AS-9500HD:3mil (Code 39)
     Print Contrast Ratio (minimum) 25%
     Decode Capability Codabar, Codablock F, Code 11, Code 128, Code 39, Code 49, Code 93, EAN-13, EAN-8, IATA 2/5, Industrial 2/5, Interleved 2/5, Italian Pharmacode ( code 32), Matrix 2/5, Planet Code, PosiCode, Standard 2 of 5, Telepen, UK plessey, UPCA, UPCE, Australian Post, British Post, Canadian Post, China Post, Japan Post, KIX Post, Korea Post, Code-16K, MicroPDF417, PDF-417, RSS 14 (GS1 databar-14), RSS Expanded (GS1 DataBar Expanded), RSS Limited ( GS1 DataBar Limited), Micro QR, QR
     Wireless Communications N/A
     Communication Interface USB HID, USB Virtual COM, RS-232
     Scan Indicators LED, Beeper and Vibrator
     Scanner Dimensions 83mm x 72mm x 165mm
     Cradle Dimensions N/A
     Input Voltage 5V+/- 5%
     Operating Temperature 0°C to +50°C (0° to 122°F)
     Storage -20°C to +60°C (-4° to 140°F)
     Humidity 5% to 90% relative humidity, non-condensing
     Ambient Light Up to100,000 Lux
     Battery N/A
     Drop Resistance 1.8m
     Programming Method User Manual setting barcode , Windows ScanUtility configuration program
     Operation Mode Trigger mode, Auto sensing mode
     Sealing N/A
     Program Upgrade Enabled by build-in flash memory
     Cable Length 2.0m
     Scanner Stand Optional
     Power Supply Optional
     Agency Listing CE, FCC, ROHS, BSMI
     Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
