General Duty 2D Imagers
Product Categories
Product Tags (multiple selection)

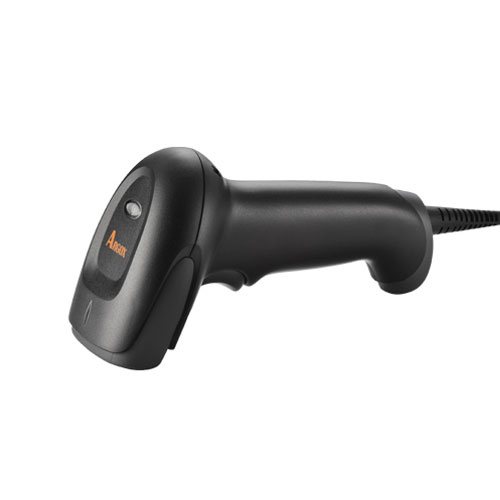

AS-9600
product description
• Advanced decoding: Cutting-edge decoding technology, able to decode most popular 1D and 2D barcodes quickly and accurately on paper or electronics screens.
• Compact, user-friendly design: Accurate and speedy scanning, ergonomic but user-friendly design allows for a comfortable grip.
• Reliable data capture: Supports most standard 1D and mainstream 2D symbology, as well as those on LCD screens (such as monitors or mobile phones).
• Versatile scanning: Supports both manual and presentation scanning with automatic object detection and scanning.
• Cost-effective solution: Competitive pricing, outstanding performance.
• Unique Silver White LED light source: AS-9600 is designed with specialized decoding technology, which it maximizes the reading performance on barcodes under bad condition.
• Compact, user-friendly design: Accurate and speedy scanning, ergonomic but user-friendly design allows for a comfortable grip.
• Reliable data capture: Supports most standard 1D and mainstream 2D symbology, as well as those on LCD screens (such as monitors or mobile phones).
• Versatile scanning: Supports both manual and presentation scanning with automatic object detection and scanning.
• Cost-effective solution: Competitive pricing, outstanding performance.
• Unique Silver White LED light source: AS-9600 is designed with specialized decoding technology, which it maximizes the reading performance on barcodes under bad condition.
-
AS-9600 is a general purpose array imager targeting middle segment of the 2D market. With competitive pricing, outstanding performance, ergonomic design, and optimal functionality, it meets almost all the demands of the applications.
-
Light Source White LED Image Sensor CMOS Sensor Depth of Field 5 mil Code 39 45mm ~ 107 mm, 13 mil UPC 37mm ~ 260 mm, 20 mil Code 39 42mm ~ 360 mm, 6.7 mil PDF417 42mm ~ 107 mm, 10 mil DM** 42mm ~ 107 mm, 20 mil QR 32mm ~ 210 mm Resolution 5mil (Code39) Print Contrast Ratio (minimum) 35% Decode Capability Support most standard 1D and mainstream 2D symbology, as well as those on electronics screens (such as mobile phones) Wireless Communications N/A Communication Interface USB, RS-232 Scan Indicators LED, Beeper Scanner Dimensions 170mm x 66mm x 85mm Cradle Dimensions N/A Input Voltage 5V+/- 5% Operating Temperature 0℃ to 40℃ (32℉ to 104℉) Storage -40℃ to 60℃ (-40℉ to 140℉) Humidity 5% to 95% relative humidity, non-condensing Ambient Light Up to 100,000 lux Battery N/A Drop Resistance 1.0m Programming Method Manual (reading special barcode) Operation Mode Trigger mode, Auto sensing mode Sealing IP40 Program Upgrade Enabled by build-in flash memory Cable Length 1.8m Scanner Stand Optional Power Supply Optional Agency Listing CE, FCC, BSMI Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications. -
-
AS-9600 Brochure EN
AS-9600 Brochure EN
-
-
-
AS-9600 User Guide
AS-9600 User Guide
-
Scanner Stand Quick Installation Guide
Scanner Stand Quick Installation Guide V1.0
-
-
-
AS-9600 Virtual COM Driver
USB Serial Driver-2012-11-12-version-r1.3
-
