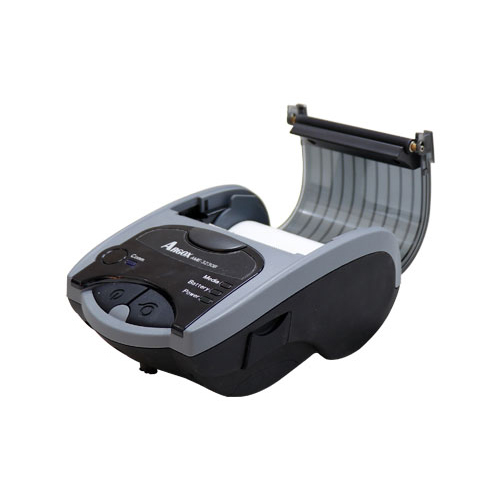

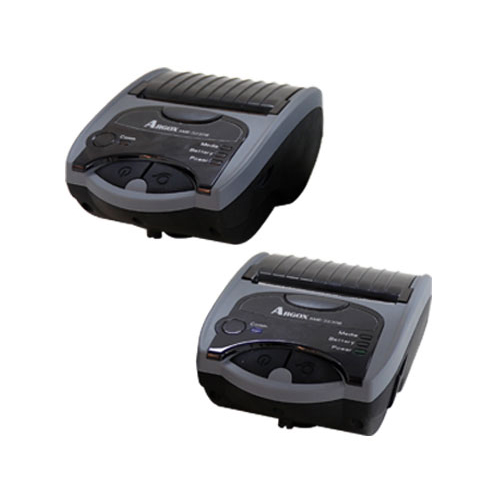

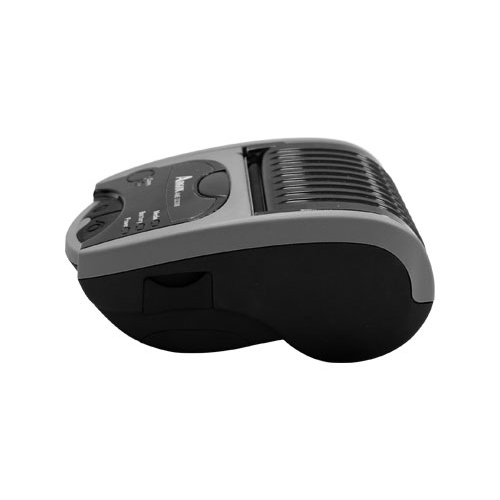

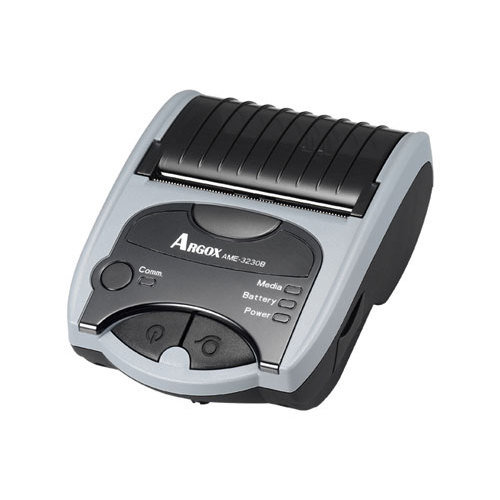

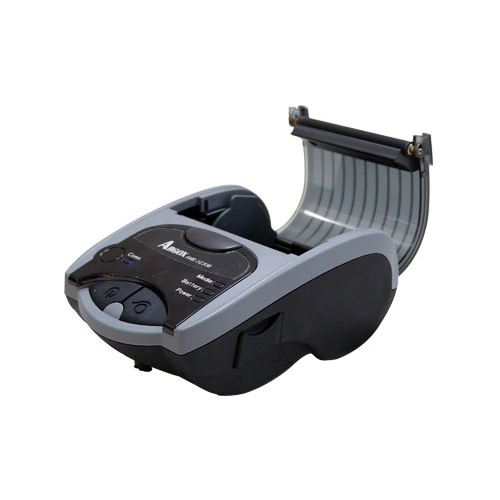

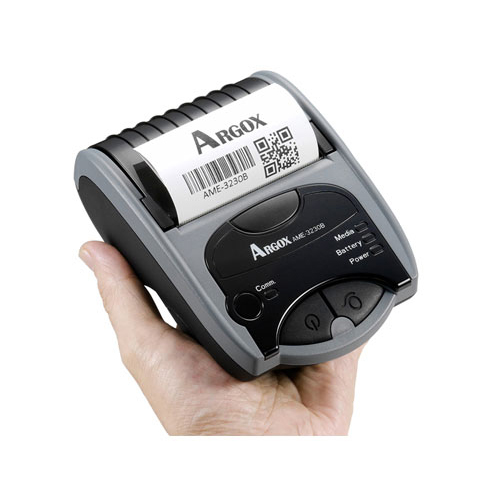

AME-3230 B/W

product description
• Easy to monitor power on when connecting with mobile computer or PDA.
• USB and RS-232 interfaces as well as Bluetooth connectivity (AME-3230B).
• Buzzer for media-out or cover-not-closed.
• Battery operation for eight hours on single charge.
• Low battery does not affect print quality.
• Quick open/lock of battery cover without tools.
• IP54 certified with environmental case.
Tags :
  • Printer-Printing-width-3"
  • Printer-Mobile printer
  • The AME-3230 is a lightweight, palm-sized mobile printer that allows you to print labels or receipts anywhere you go.  For mobile printing applications such as parking tickets, delivery or updating price tags on perishable retail items, the AME-3230 produces quick and simple labels and receipts from 1-inch to 3-inches wide on demand. Carry it on your belt and transmit data to the printer wirelessly using a Bluetooth equipped portable data terminal. High performance features include a 32-bit CPU for up to 3ips printing speed, 203dpi print resolution for text and graphics, and 8M DRAM and 4M Flash ROM memory. The AME-3230 operates for eight hours on one battery charge, and provides smart power management and automatic low battery notification. AME-3230 series possesses USB and RS-232 standard equipments, and provides Bluetooth (AME-3230B) and WiFi (AME-3230W) as optional accessories for users to create the most convenient environment. Barcode printing support includes 1D/GS1 Data bar, 2D/Composite codes and QR barcodes. The AME-3230 portable printer provides an exceptionally versatile solution for today’s growing mobile data management requirements.
  •   Printing Method Direct Thermal
      Printing Resolution 203 dpi(8 dots/mm)
      Printing Speed Max. 3 ips
      Printing Length Max. 40”(1016mm)
      Printing Width Max. 2.8”(72mm)
      Memory 8MB DRAM, 4MB Flash ROM
      CPU Type 32 bit RISC microprocessor
      Sensors Transmissive sensor x 1 (fixed, Left side)
      Operation Interface LED Indicator x 4, Button(Feed) x 2
      Communication Interface USB device, RS-232, Bluetooth 2.0(AME-3230B), WLAN(AME-3230W)
      Fonts Internal character sets standard. Ability to print any Windows True Type font easily
      Wireless Security AME-3230W: WEP-128, WPA-PSK (TKIP), WPA2-PSK (AES)
      1D Barcodes PPLZ: Code39, UPC-A, UPC-E, Postnet, Code128 subset A/B/C, Interleave 2 of 5, Interleaved 2 of 5 with check sum, Interleaved 2 of 5 with human readable check digit, Code 93, Code 39 with check sum digit MSI, EAN-8, Codabar, Code 11, EAN-13, Plessey GS1 Data bar (RSS), Industrial 2 of 5, Standard 2 of 5, Logmars
      2D Barcodes PPLZ: Maxi Code, PDF417, Data Matrix (ECC 200 only), QR code, Composite Codes, Aztec
      Graphics PPLZ: GRF, Hex and GDI
      Emulation PPLZ
      Software-label Editing BarTender® from Seaguall Scientifi
      Windows Compatibility Win CE. NET, Pocket PC, Windows Mobile, Windows XP/Vista/7/Win8/Win10)
      Software-utility Printer Utility, Font Utility
      Driver tools Argox Seaguall Driver (Windows XP/Vista/Win7/Win8/Win10) Argox Linux Printer Driver Argox macOS Printer Driver Argox RPi Printer Driver
      Media Type Direct Thermal continuous receipt, Direct Thermal labels, die-cut, black mark, Direct Thermal sticker
      Media Recommended Printing Width: Label/Ticket: 3”(78.5mm) (Max. roll capacity(OD): 2.2”(57mm)) Receipt: 1”(25.4mm) ~ 3”(78.5mm) (Max. roll capacity(OD): 2.2”(57mm)) Thickness: Receipt(0.0508~0.1016mm) / Label: Max. 0.15mm
      Ribbon N/A
      Drop Resistance 1.5 m
      Printer Dimensions W 106mm x H 70mm x D 153mm
      Printer Weight 515g (Printer + Battery )
      Power Source Rechargeable 7.4V Lithium-ion, 2200mAh Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 9V, 1.56A
      Battery Rechargeable 7.4V Lithium-ion, 2200mAh, Operating 8 hours, standby 14 hours
      Operation Environment Operation Temperature: 14°F~122°F (-10°C~50°C) Storage Temperature: -4°F~140°F (-20°C~60°C)
      Real Time Clock N/A
      Standard Item Belt clip, Battery, AC adapter, Cleaning tool, A roll of receipt paper, Quick guide, DVD-ROM
      Optional Items Shoulder Strap, Environmental case, Lithium-ion Battery, Single Battery Charger, 4 Bay Battery Charger
      Agency Listing CE, FCC, RoHS, BSMI
      Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
    • BarTender UL 2016 R7 3146

      Windows Vista, Windows 7, Windows 8 and 8.1, and Windows 10. Windows Server 2008, 2008 R2, 2012, 2012 R2, and 2016. 32-bit and 64-bit (x64) editions.

    • Font Utility V3.04

      Windows XP and higher. This utility enables to true type font(TTF) and load the fonts into printers. Support: Windows 10(64bit/32bit), 8.1(64bit/32bit), 8(64bit/32bit), 7, 98, ME, 2000, NT, Vista, XP

    • Printer Utility V4.37

      For additional printer settings. Support: Windows 10(64bit/32bit), 8.1(64bit/32bit), 8(64bit/32bit), 7, 98, ME, NT, Vista, XP

    • Command Library V4.11

      Command Library V4.11 software developing tool for professional users. Support: Windows 10, Windows 8, Windows 7, Window Vista and 64bit/32bit editions.

    • Argox SDK V1.3.0 CHT

      SDK supports PC/Android/CE/Mobile platform, Windows 10,Windows 8,Windows 7,Window Vista and 64bit/32bit editions Windows Mobile V5.0/Windows CE V5.0/Microsoft Visual Studio 2008, PPLZ emulation only.

    • iLabelPrint V1.02 Google Play

      iLabelPrint is an app software designed by Argox for mobile printing demands when using Argox printer Bluetooth function connecting with “Android” or “iOS” mobile device such as smart phone, laptop computer or tablet; or LAN, WiFi and USB (Only for Android device that supports OTG; An OTG converter cable is required) connections to relative Argox printer models.

    • iLabelPrint V1.02 App Store

      iLabelPrint is an app software designed by Argox for mobile printing demands when using Argox printer Bluetooth function connecting with “Android” or “iOS” mobile device such as smart phone, laptop computer or tablet; or LAN, WiFi and USB (Only for Android device that supports OTG; An OTG converter cable is required) connections to relative Argox printer models.

    • iLabelPrint V1.02 APK

      iLabelPrint is an app software designed by Argox for mobile printing demands when using Argox printer Bluetooth function connecting with “Android” or “iOS” mobile device such as smart phone, laptop computer or tablet; or LAN, WiFi and USB (Only for Android device that supports OTG; An OTG converter cable is required) connections to relative Argox printer models.
