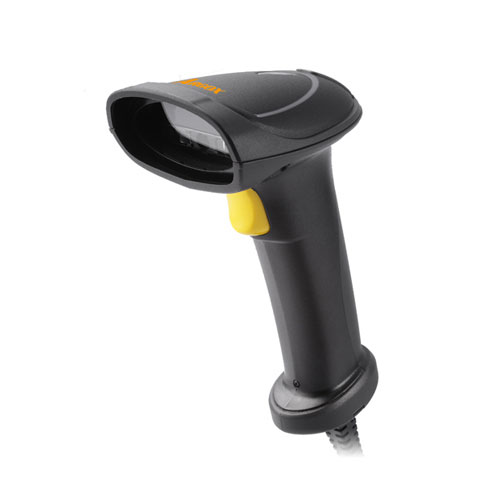

AI-6820

AI-6820 Series, the first model of Argox wired 2D Imager Scanner for light-industry grade, Eagle-eye grade reading engine that has enhanced perfor-mance on 4 mil labels for small IT-components, Jewelry labels and so on. The transmission rate is also 3 times faster than the competitors within its class which will greatly increase your efficiency and minimize your downtime.
AI-6820 Series has built in Cross-Line laser targeting design which allows you to work perfectly under ultra-white light and insufficient light source environment with on demand scanning accuracy. It will greatly reduce the user’s fatigue.
● Transcendence of its class
The heavy-duty design of AI-6820 Series is certified by IP65 with drop rate resistance of 1.8 meter vertical distance to prevent any data loss and transmission. The enhanced alert beep has dynamic setting that fits your working environment even under high-noise condition and it also provides vibration alert.
● Accuracy and Precision
The era of Big Data is coming, AI-6820 Series comes with DataMagic data editing software to enhance your usability. It takes no time to complete the setting with the user-friendly UI design; you will be able to complete the data analysis in no time. You no longer will need to spend additional resource on SI companies for job like this!
The rising trend of mobile device, each device will be required to transmit data through different platform and it is becoming the norm. Barcode is digitalized and it will be displayed on variety of electronic devices. AI-6820 Series has high readability on electronic display like tablet and cell phone to have high accuracy barcode reading ability. AI-6820 Series is the idea product for you to apply with different sectors such as Retail, Logistic, Warehouse management and so on.

Light Source	625nm visible red LED
Image Sensor	752*480 Area Imager
Depth of Field	AI-6820:Code 39 5mil 43-143mm, EAN 13mil 37-358m, QR code 8mil 67-110mm, QR code 20mil 37-320mm, PDF 417 13mil 22-250mm, DataMatrix 15mil 32-280mm. AI-6820HD:Code 39 3mil 25-75mm, Code 39 5mil 25-105mm, EAN 13mil 45-150mm, QR code 8mil 30-80mm, QR code 20mil 35-160mm, PDF 417 13mil 25-115mm, DataMatrix 15mil 30-130mm.
Resolution	AI-6820:4mil (Code 39). AI-6820HD:3mil (Code 39). AI-6820DL:4mil (Code 39)
Print Contrast Ratio (minimum)	25%
Decode Capability	UPC/EAN (UPCA/UPCE/UPCE1/EAN-8/EAN-13/JAN-8/JAN13 plus, supplementals, ISBN (Bookland), ISSN, Coupon Code, Code39 (Standard, Full ASCII, UCC/EAN-128,ISBT-128 Concatenated), Code 93, Codabar/NW7, Code 11 (standard, Matrix 2 of 5),MSI Plessey, I2 of 5 (Interleaved 2 of 5 / ITF, Discrete 2 of 5 IATA, Chinese 2 of 5),GS1 Databar (Omnidirectional, Truncated,Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked, Inverse), Base 32 (Italian Pharmacode), Postal Codes：U.S. Postnet, U.S. Planet, U.K. Postal, Japan Postal, Australian Postal, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal, PDF417, microPDF417, Composite Codes TLC-39, Aztec (Standard, Inverse), MaxiCode, DataMatrix/ECC 200 (Standard, Inverse), QR Code (Standard, Inverse and Micro)
Wireless Communications	N/A
Communication Interface	USB, RS-232
Scan Indicators	LED, Beeper and Vibrator
Scanner Dimensions	94mm x 76mm x 158mm
Cradle Dimensions	N/A
Input Voltage	5V+/- 5%
Operating Temperature	-20°C to 55°C (-4°F to 131°F) (Charging 0~ 40°C)
Storage	-20°C to 70°C (-4°F to 158°F)
Humidity	5% to 95% related humidity, non-condensing
Ambient Light	Up to 100,000 lux
Battery	N/A
Drop Resistance	1.8m
Programming Method	User Manual setting barcode , Windows ScanUtility configuration program
Operation Mode	Trigger mode, Auto sensing mode
Sealing	IP65
Program Upgrade	Enabled by build-in flash memory
Cable Length	2.0m
Scanner Stand	Optional
Power Supply	Optional
Agency Listing	CE, FCC, ROHS, BSMI
Attention	*Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
