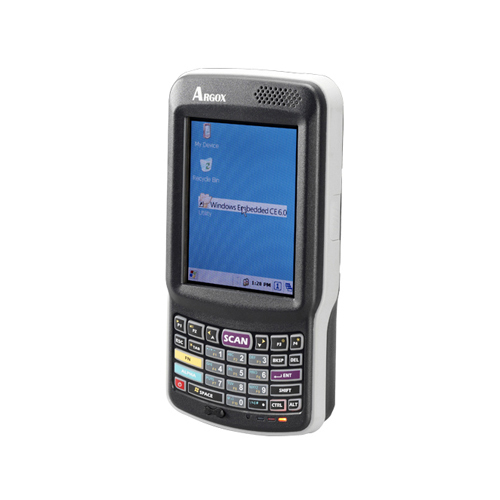

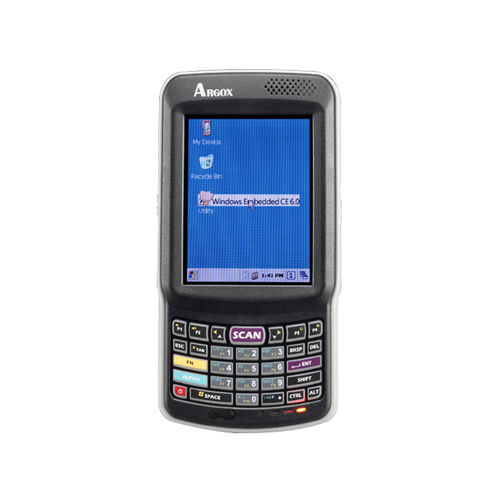

PT-90

Throughout these years, Argox has invested great efforts and resources to understand your business, your daily needs at work, and your resources available to improve the efficiency and upgrade your mobile tasks. To leverage the great market achievement made by our PT-60 series, Argox has integrated various application demands, hardware system flexibilities, and human factor considerations to come up with the new PT-90 series. As the milestone marked the serious commitments Argox made to stand behind all of our mobile computer lines, PT-90 series has also been recognized as the flagship of Argox mobile computers. Introducing not only the contemporary system architecture, superior performance and firm reliability make PT-90 series a new option to the field mobile applications world. With PT-90 series, you will never have any surprise but only need to expect what you should have to come. More processing power and intelligence have driven PT-90 series on the data communication freeway. Lighter and comfortable in user’s palm, PT-90 series tightly link your work force in the field with your headquarter office. Various accessories have given the final touch to the new PT-90 series, from a moving vehicle to the working bench, and make it a perfect partner to your workforce.

External I/O Interface	USB(2.0), RS-232
Expansion Slot	Micro SD card
OS	Microsoft Windows CE .NET 6.0 Professional
CPU	MARVELL CPU PAX310 806 MHz
RAM	256MB
ROM	256MB
Display	Low Power Transflective TFT 24bits color LCD, 240x320 with touch panel
Indicators	Beeper and Vibrator
Keypad	29 keys or 44 keys with backlight
Terminal Dimensions	159mm(L) x 80.8mm(W) x 36mm(H)
Terminal Weight	380g(battery included)
Image Sensor	Laser Scan engine/Area imager
Decode Capability	Supported all popular linear barcodes included GS1 databar, Code 39, Code 93, Codabar, Code 128,
Resolution	5mil
Depth of Field	600mm (code 39, 20mils, PCS 90%)
Scan Rate	400 scans/second
Communication Interface	USB, RS-232
Operating Temperature	-10°C ~ 60°C (14°F ~ 140°F)
Storage Temperature	-20°C ~ 70°C(-4°F ~ 158°F)
Humidity	Max 80% RH at ≦30℃
Drop Resistance	Data collector:1.8m Cradle:0.9m
Sealing	IP65
Electrostatic Discharge	(+/- 15 KV) air discharge / (+/- 8 KV) direct discharge
Software	Software Development Kit (SDK), Architect (Application Generator), Argox Daemon
Program Language	C language, basic language
Developing Tools	embedded Visual C++ 4.0, Visual Studio 2005, Windows CE SDK, Scanner Configuration Utility
Power Source	Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 5V, 3A
Battery	Rechargeable Li-polymer Battery 3900mAH, 3.7Vdc

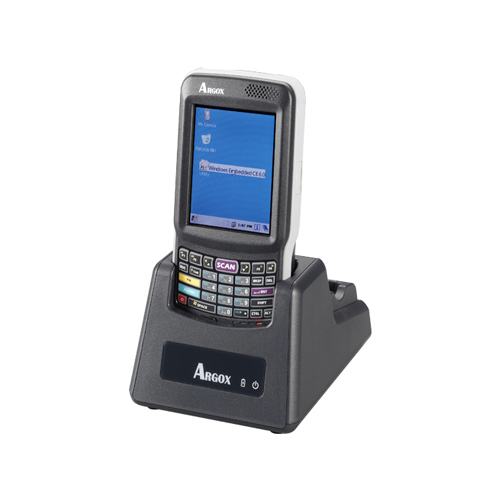

Cradle	Device cradle with single slot battery compartment, Four-slot charger
Accessory	ActiveSync Seriel/USB cable with charging, Pistol Grip, Carry case, Vehicle dock
Wireless Communications	WPAN: Bluetooth Class 2, version 2.0 WLAN: 802.11b/g Wi-Fi
Agency Listing	CE, FCC, BSMI, CCC
Attention	*Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
