product description
• Light-weight & Versatile design
• Easy to install large programs
• Multiple interfaces
Tags :
  • Terminal-CCD
  • Terminal-2D

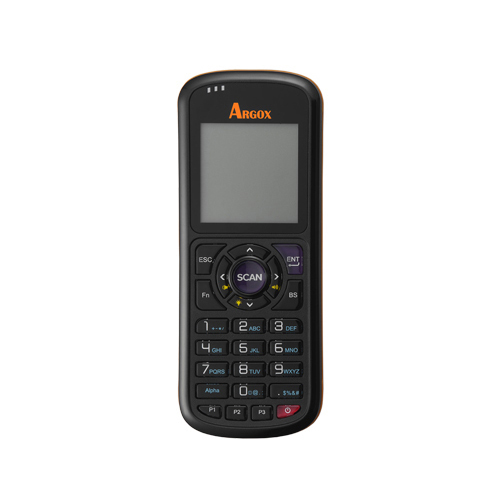

  • PI-Series is the perfect lightweight and versatile data collector for you, it is built to resist damage from dust as IP54 with 1.5m safe drop distance. It also supports real-time wireless communication through Wi-Fi and BT protocol.
    Ergonomic designed with perfect measurement and it has only 160g. The users will have no pressure after long hour of working with PI-Series.
    PI-Series is suitable for in-premise application in retail, manufacturing, logistic and grocery environment. It will continue to operate even under the worst environment.
    PI-Series is spec. with 16MB DRAM and 20MB Flash ROM, so you may have large files log and data storage in comparison to the same models in its class.
    Multi-interface through USB, RS232, Wifi and BT communication. PI-Series will satisfy your demand whether it’s indoor or outdoor applications.
  •  External I/O Interface USB / RS-232
     Expansion Slot Micro SD 32GB ( factory option)
     OS Argox Proprietary
     CPU ARM926EJ-S
     RAM 16MB
     ROM 20MB
     Display 2" mono FSTN, 160x160
     Indicators LED, Beeper and Vibrator
     Keypad 25 keys
     Terminal Dimensions 145.0mm (L) x 55.0mm (W) x 26.0mm (H)
     Terminal Weight 160g(without battery)
     Image Sensor PI-1010/1030: CCD, PI-1230: Area imager
     Decode Capability PI-1010/1030: Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, EAN-8, Industrial 2/5, Interleved 2/5, Italian Pharmacode ( code 32), Matrix 2/5, MSI plessey, Standard 2 of 5, Telepen, UK plessey, UPCA, UPCE, China Post, Code-16K, PDF-417, RSS 14 (GS1 databar-14), RSS Expanded (GS1 DataBar Expanded), RSS Limited ( GS1 DataBar Limited). PI-1230: Code 11, Code 128, Code 39, Code 93, Discrete 2 of 5 (DTF), EAN-13, EAN-8, Interleved 2/5, ISBT-128, Italian Pharmacode ( code 32), Korean 3 of 5, MSI plessey, UPCA, UPCE, UPC-E1, UPU FICS Postal, US Planet, US POSTNET, USPS, Australian Post, Japan Post, KIX Post, MicroPDF417, PDF-417, RSS 14 (GS1 databar-14), RSS Expanded (GS1 DataBar Expanded), RSS Limited ( GS1 DataBar Limited), Aztec Code, Data Matrix, MaxiCode, Micro QR, QR, OCR
     Resolution 3mil
     Depth of Field PI-1030: Code 39 3mil 40-90mm, Code 39 5mil 45-115mm, Code 39 10mil 45-140mm, Code 39 13mil 55-395mm, Code 39 20mil 65-575mm, EAN 13mil 55-435mm. PI-1230: Code 39 5mil 70-170mm, UPC 13.3mil 90-370mm, Datamatrix 15mil 60-280mm
     Scan Rate 200 scans/second
     Communication Interface USB, RS-232
     Operating Temperature -10°C ~ 60°C / 14°F ~ 140°F
     Storage Temperature -20°C ~ 70°C / -4°F ~ 158°F
     Humidity Operating: Non-condensed 85%
     Drop Resistance 1.5meters to concrete(Handset)
     Sealing IP54
     Electrostatic Discharge (+/- 15 KV) air discharge / (+/- 8 KV) direct discharge
     Software ControlCenter, Everlink, EverBridge, PhoniexVoler
     Program Language C language, basic language
     Developing Tools Skywalker,Software Development Kit (SDK)
     Power Source Universal Switching Power supply. AC input voltage: 100~240V, 50~60Hz. DC Output: 5V, 2A
     Battery AA size NIMH Battery *2 (charged by USB or optional power adapter) or AA size Alkaline *2 ( Recommend AA size NIMH Battery for daily work)
     Cradle N/A
     Accessory ● Communication and Charging Cables: Seriel/USB cable with charging ● Stand
      Wireless Communications PI-1010 WPAN: Bluetooth Class 2, version 2.0. PI-1030/PI-1230 WPAN: Bluetooth Class 2, version 2.0 WLAN: 802.11b/g/n Wi-Fi
     Agency Listing FCC, CE, BSMI, ROHS, WEEE, BIS, WPC
     Attention *Argox reserves the right to enhance and modify the specification without prior notice. Please check Argox sales representative for most updated specifications.
    • Everlink

      Data transferring tool
      Support Windows 10, Windows8.1 , Windows 8(64bit & 32bit), Windows 7, Windows XP

    • ControlCenter

      Cloud management tool
      Support Windows 10, Windows8.1 , Windows 8(64bit & 32bit), Windows 7, Windows XP

    • PhoenixVoler

      File transferring tool Windows 10, Windows8.1 , Windows 8(64bit & 32bit), Windows 7, Windows XP, Windows Vista,

    • Skywalker

      Skywalker is an Integrated Development Environment(IDE) application for PI series.
      Support Windows 10 ,Windows 8.1 ,Windows 8(64bit & 32bit), Windows 7,Windows XP, Windows Vista,
